Hengshui Aohong Special Glass Manufacturing Co., Ltd

Sight Glass Type Level Gauge Product Details : Glass plate level gauge  is divided into three kinds: Transparent type, reflection-type and sight glass type. The level gauge  is mainly composed by level gauge's body, upper valve (gas valve), lower valve (liquid valve), drain valve, insurance steel ball and so on. When the glass plate have some cracks or be damaged, the insurance steel ball will automatically stop the side valve of gas and liquid to avoid or reduce flowing. So the worker can cut off the bottom valve to handle it. This series product is stable, sealed and reliable, simple installation, which is ideal instrument for detecting for liquid level in all kinds of containers with middle or low pressure. Connecting the upper and lower flanges of this level gauge with the upper and lower flanges of the container to form a permeator, then the height of liquid can be directly seen. Features: 1. Clear and direct reading, good sealab...

Quartz Glass Rod & Tube Product Details  of Quartz glass tube Quartz tubes   advantages are high purity, good spectral transmission, well controlled dimension and low OH, etc. Widely used in the filed of semiconductor, metallurgy, chemical industry, electric light source, photo-communication, medical equipment, scientific instruments and so on. Size: OD: 3-400mm, Wall thickness: 0.7 - 10.0mm , length maximum 3000mm. Quartz glass rod The clear heat resistant quartz rod is made from high purity quartz powder. It has high purity(silica content is more than 99.99%), elevated temperature characteristics and low coefficient of thermal expansion. Size:Diameter20-50mm, Length:10-1200mm, working temperature: 1100 degree C.   More information please click here

Quartz Rectangular Glass Product Details Quartz glass  according to customer's requirements, made from JGS1, JGS2, JGS3, on production.This is the most commonly used material due to its low cost. It can be easily toughened to effectively increase the mechanical strength of annealed glass by up to five times.  Soda Lime glass according to DIN 8902. For compressive stress with temperatures borosilicate circular sight glass  up to max. 150 degrees Celsius, This is the most commonly used material due to its low cost. It can be easily toughened to effectively increase the mechanical strength of annealed glass by up to five times.  We have plant and equipment, including our water-jet cutting machine and CNC machining center, to produce diameters between 3mm and 1500 mm, and thicknesses up to 25m. https://www.hsahglass.com/quartz-glass/

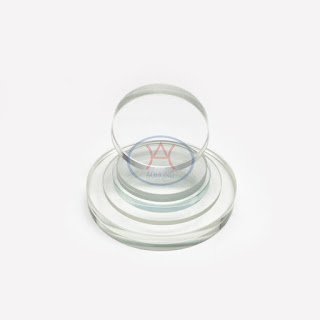

Aluminum Silicon Round Glass Aluminosilicate Glass refers to  glass that has aluminum oxide in its composition. It is crystal clear and has good chemical stability, electrical insulation, mechanical strength and low thermal expansion coefficient. It is widely used for manufacturing gauge glass and sight glass. No surface defects Great chemical resistance Allowing for high operating temperature of up to 600 °C Hydrolytic resistance Acid & alkali resistance A full range of sizes Special discounts for large orders and various promotion campaigns Size  of round aluminosilicate glass for sight glass   : Circular endoscopic: φ 10 mm – φ 800 mm; specifically, as follows: φ 28 × 16, φ 31.6 × 12.7, φ 33.16 × 16, φ 34 × 17 (unit: mm) Technical Notes: The thickness of the various non-standard aluminosilicate glass  can be customized. Other sizes can be customized. https://www.hsahglass.com/aluminum-silicon-glass/

Aluminum Silicon Transparent Gauge Glass Aluminosilicate glass  is crystal clear and a perfect choice for gauge glass. Aluminosilicate Transparent gauge glass  has high transmittance and resist to aggressive environment, so transparent sight glass is widely used in industry and petrol. Material: borosilicate glass, aluminosilicate glass. Form: strip. c.Size:  TYPE A: width 30 mm and thickness 17 mm. TYPE B: width 34 mm and thickness 17 mm. Transmissivity: 91.8% Shock temperature: ≤ 370 °C Softening temperature: ≥ 920 °C Bending strength: 180–220 MPa Working temperature: 600 °C Working pressure: 200 MPa Technical Notes: 1.The thickness of the various non-standard aluminosilicate glass  can be customized. 2.Other sizes can be customized. More information please click here
