A1~9 / B1~9 Klinger Reflex Level Gauge Glass

Borosilicate Reflex Gauge Glass

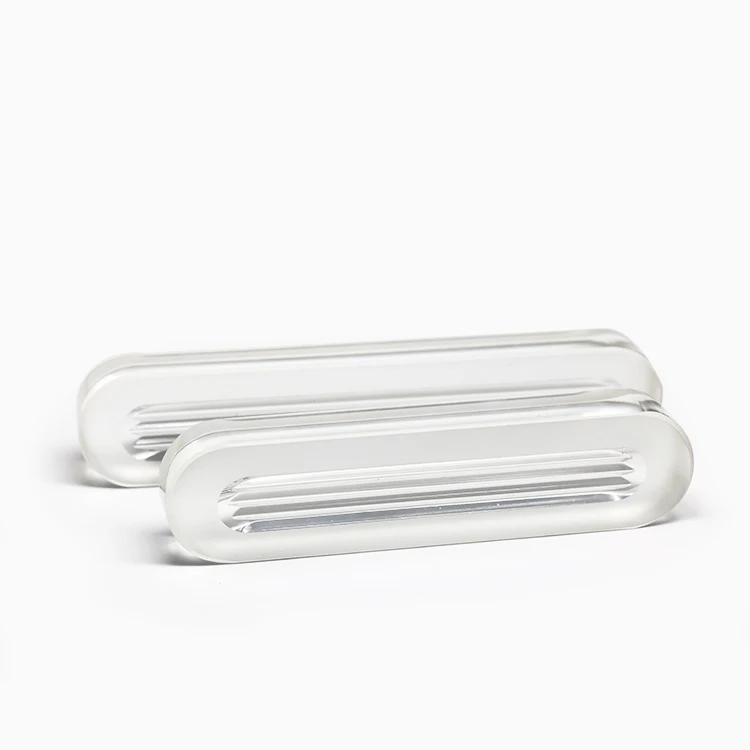

Reflex glasses is made from tempered borosilicate glass, it can be used with all media at service conditions up to 4MPa and temperature up to 430 °C.

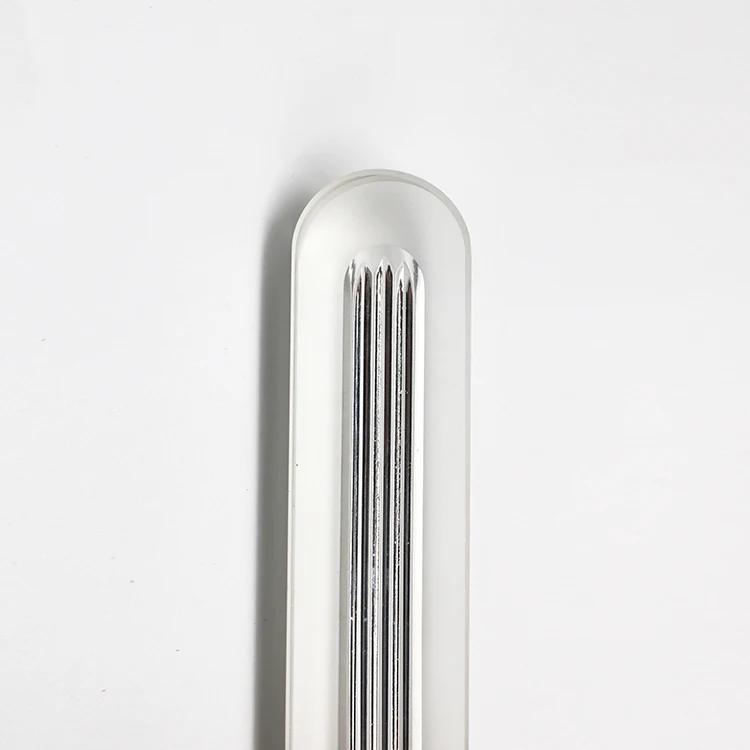

The side facing the medium chamber is provided with molded grooves set at 90°angles.
It is used on level gauge of boiler for water position. It is also named: Reflex Gauge Glass, Sight glass, Reflex Glasses, Reflex sight glass, Spares For level Gauge.
SIZE
Type A

L
B
S
0
-
-
-
I
115
30
17
II
140
30
17
III
165
30
17
IV
190
30
17
V
220
30
17
VI
250
30
17
VII
280
30
17
VIII
320
30
17
IX
340
30
17
X
370
30
17
SIZE
Type B

L
B
S
0
95
34
17
I
115
34
17
II
140
34
17
III
165
34
17
IV
190
34
17
V
220
34
17
VI
250
34
17
VII
280
34
17
VIII
320
34
17
IX
340
34
17
X
370
34
17

A1~9 / B1~9 Klinger Reflex Level Gauge GlassA1~9 / B1~9 Klinger Reflex Level Gauge GlassA1~9 / B1~9 Klinger Reflex Level Gauge Glass
Packaging & Shipping
 Packing detail:White paper box for each piece, 50 pieces in one carton, or as customer`s requirements.
Delivery detail:Shipped within 7 days after payment
A1~9 / B1~9 Klinger Reflex Level Gauge Glass

Our Services

  • 20 Years of Indusrial glass and gasket manufacture experience
  • 10 years of export sealing material experience
  • OEM manufacture is available
  • Technical guidance
  • Import guidance

Company Information

Hengshui Aohong Technology Co., Ltd. is an industrial company with an integration of industrial production and trade.

Our company specializes in producing sealings gasket sheets,thermal insulation cloths, rope, tape, level gauge glasses (plane, reflex),etc.

All of our products sell well in both domestic and international markets.
