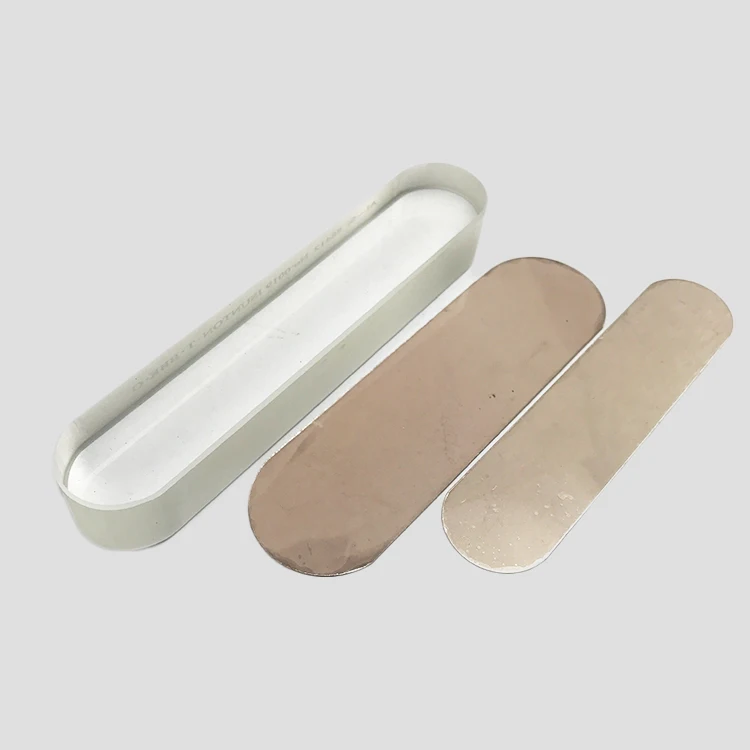

Aohong A4/B4 DIN7081 boiler heat resistant borosilicate reflex level gauge glass sight glass

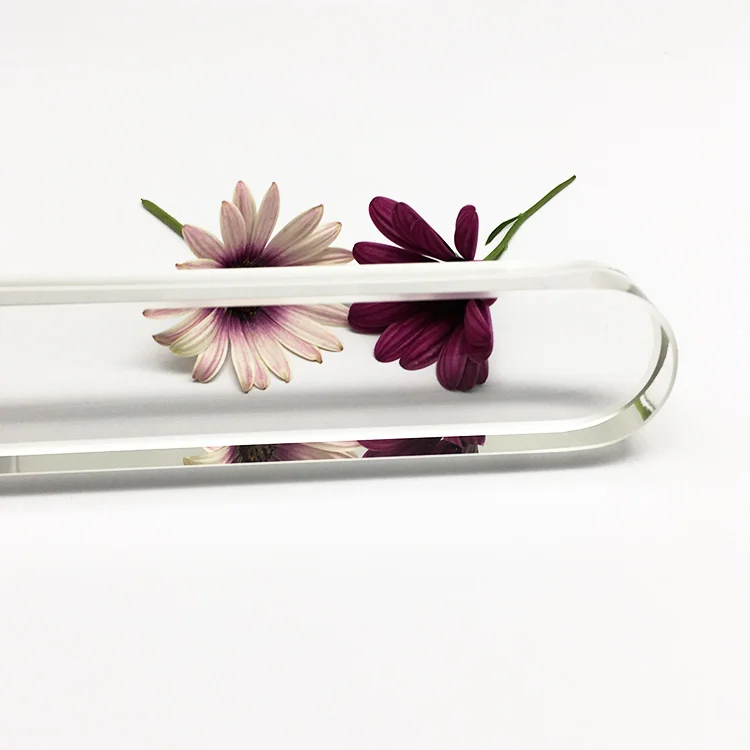

DIN7081 heat resistant borosilicate 3.3 Transparent water level gauge glass
Material: Borosilicate / Borosilicate 3.3 glass
Application: For Level Gauge on steam boiler
Size: A1~A9, B1~B9, or according to customer`s request
Working temp.: 260 ~ 550 ℃
Certification: ISO 9001:2000, CE, SGS
Service: Printing, labels, gaskets, etc.
Working temperature
Size
Color
Special requirement
260-550℃
B9 340*34*17MM
Transparent
Logo, labeling, gasket
Detail Display
Related Products

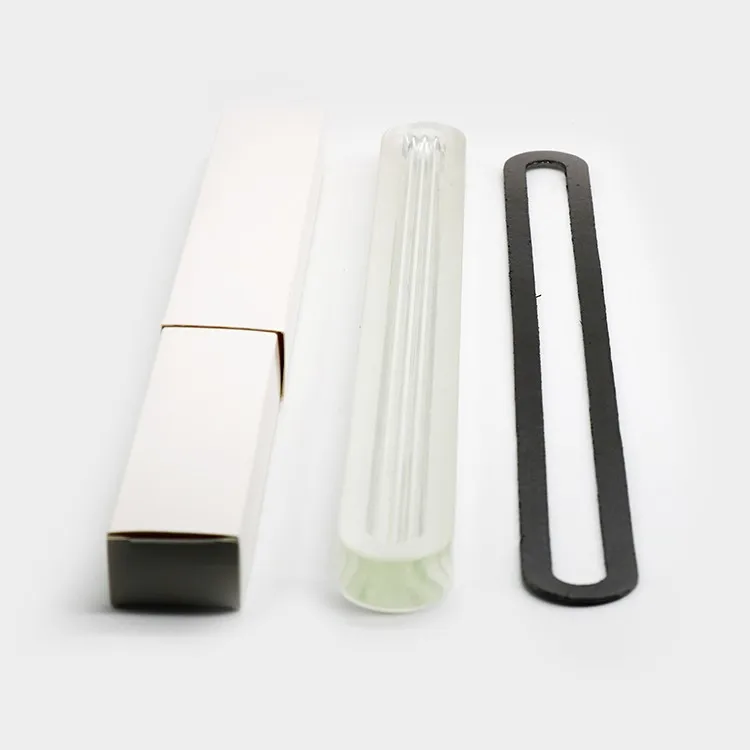

Plain level gauge glass
Reflex level gauge glass with graphite gasket
Plain level gauge glass with mica gasket
Company Profile
Hengshui Aohong Special Glass Manufacturing Co., Ltd. is a high-tech enterprise dedicated to producing, developing and selling all kinds of glass products with more than 20 years of experience. Equipped with the most advanced production equipment and the most complete testing instruments, more than 40 professional engineers and technicians. At the same time, the company has its own marketing department, nearly 10 years of overseas export business, so that employees for different countries and regions of glass products requirements, a more comprehensive understanding, more skilled operation, better service.
Packing & Delivery

Packing detail:

In carton or wooden case like the above picture shows.

Delivery

By DHL,UPS,TNT, FedEx, by air or by sea.

Comments

Post a Comment

Popular posts from this blog

How To Install And Maintain A Glass Plate Type Level Gauge?

Glass Plate Type level Gauge is a common type level gauge, and the Glass plate include reflex gauge glass (Reflexion gauge glass) and  transparent gauge glass (plain gauge glass or flat gauge glass). It is very important to obey the right method of level gauge installation and maintain to protect the gauge glass part. a). Inspection method of glass plate Type level gauge 1. Remove the bolts and nuts on the glass plate level gauge, and remove the gland, gauge glass gasket, gauge glass and  mica shield  in order (only the level gauge for measuring alkaline medium  has mica shield, in order to protect transparent gauge glass, and other reflex gauge glass type level gauge don’t have mica shield). 2. Clean the dust and oil stains on the level gauge; 3. Remove the rust on the level gauge; 4. Remove the residue of the sealing gasket in the sealing window of the level gauge, taking care not to damage the sealing surface; 5. Trim the sealing surface to make the surface roughn...
Read more

Why Borosilicate Glass Is Suitable For Sight Glasses And Gauge Glass

Borosilicate glass mainly refers to toughened (tempered) borosilicate glass. It is a type of glass whose main components are SiO2 and B2O2. It has high working temperature, considerable thermal shock resistance and excellent resistance to chemical attacks. Borosilicate glass has a very low coefficient of thermal expansion, which can withstand high thermal shock, and the glass surface changes very little with temperature. It is the first choice for precision instruments. Borosilicate sight glass contains few ferrous ions and has no obvious absorption in the visible spectral region, so it appears clear, transparent and colorless. It can be used as an observation window for effective and intuitive observation, so it is widely used. Borosilicate sight glass can be processed into flat (such as round, square, special-shaped) glass, and it can also be processed into tubular glass. The flat glass can be polished, drilled, chamfered, and heat treated. The products are widely used in photovolta...
Read more

Why Borosilicate Glass Is Suitable For Sight Glasses And Gauge Glass

Borosilicate glass mainly refers to toughened (tempered) borosilicate glass. It is a type of glass whose main components are SiO 2   and B 2 O 2 . It has high working temperature, considerable thermal shock resistance and excellent resistance to chemical attacks. Buy All Type  Gauge Glass  From Aohong Special Glass Manufacturing Co,.Ltd. Borosilicate glass has a very low coefficient of thermal expansion, which can withstand high thermal shock, and the glass surface changes very little with temperature. It is the first choice for precision instruments. Borosilicate sight glass contains few ferrous ions and has no obvious absorption in the visible spectral region, so it appears clear, transparent and colorless. It can be used as an observation window for effective and intuitive observation, so it is widely used. Borosilicate sight glass can be processed into flat (such as round, square, special-shaped) glass, and it can also be processed into tubular glass. The flat gl...
