Aohong China lead factory price latex beater paper gasket paper material for cylinder head gasket

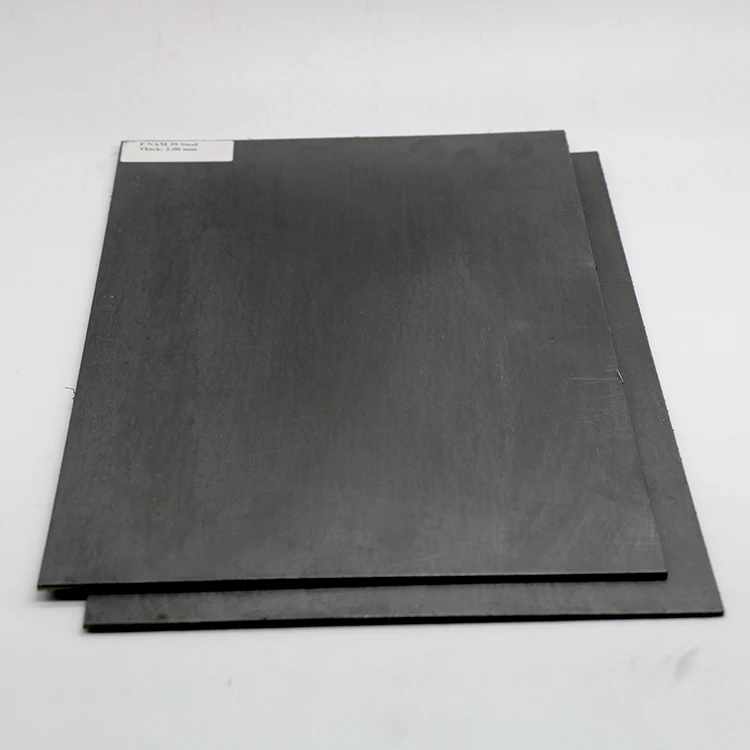

Beater paper
It is made from synthetic latex, mineral fiber and filling material. Normal used for automobile, agricultural machinery, motorcycle, engineering machinery etc, suitable for lubricating oil under temperature 200℃, usually it will be composited with tinplate to composite gasket sheet for cylinder head gasket and exhaust gakset.

non vulcanized beater paper

Applycation: It is normally used to be composited with tinplate to composite sheet
Thickness: 0.5 to 2mm.
Width: 500mm,1000mm,
Length:500mm,1000mm,1200mm


Vulcanized beater sheet

It is the beater paper by vulcanized.it has smooth face and high density .It can cut into gasket directly for the engine sump and gearbox seal box.
Thickness: 0.5 to 2mm.
Width: 500mm,1000mm,
Length:500mm,1000mm,1200mm

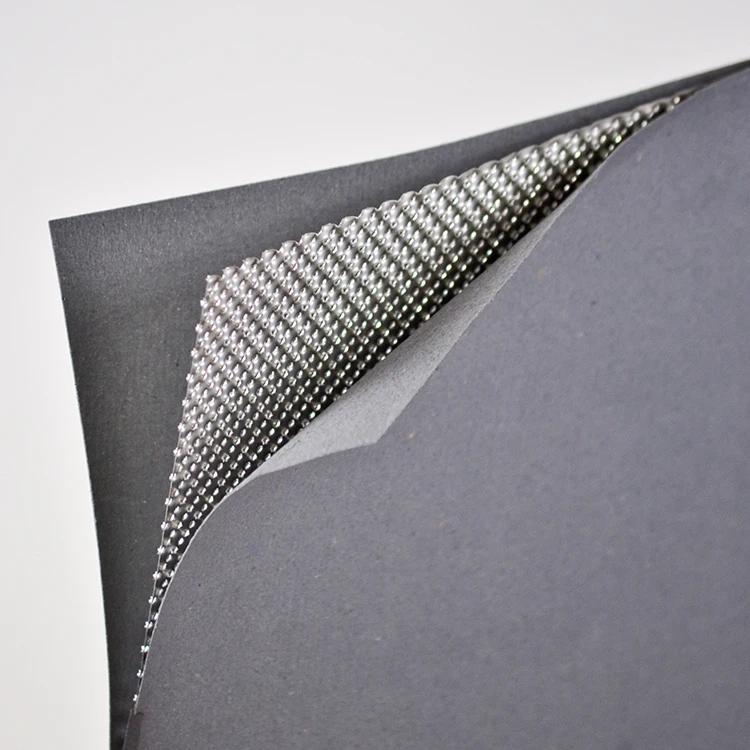

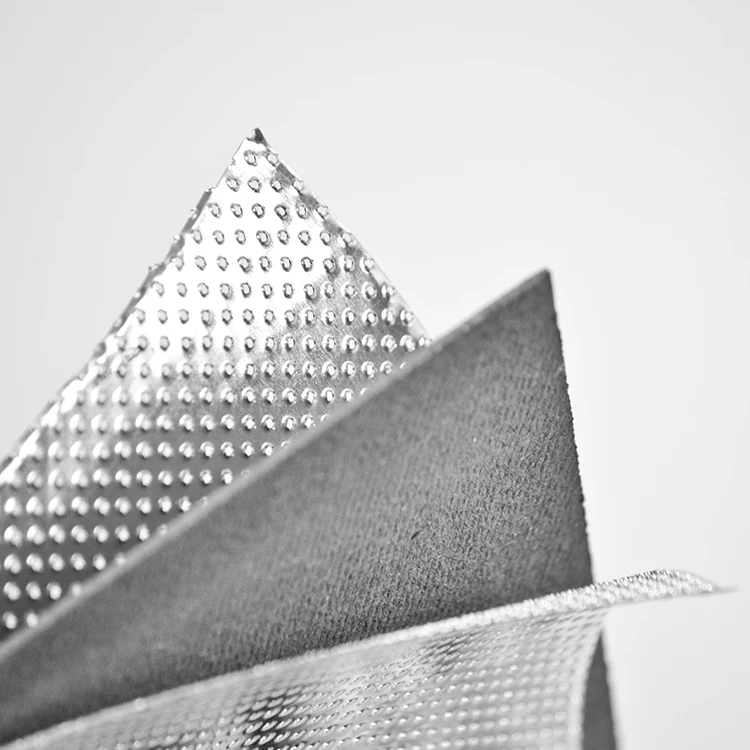

Non asbestos composite sheet.
1. No-asbestos beater sheet + tinplate + no-asbestos beater sheet.
2. No-asbestos beater sheet + SS304/316 + no-asbestos beater sheet.

Available with Both Size Coating Graphite or Silicon Resin.
Available Size:
Thickness: 1.0mm ~ 3.0mm
400mm x 1000mm, 500mm x 1000mm, 500mm x 1200mm, 500mm x 1500mm, 510mm x 1016mm, 1000mm x 1000mm.

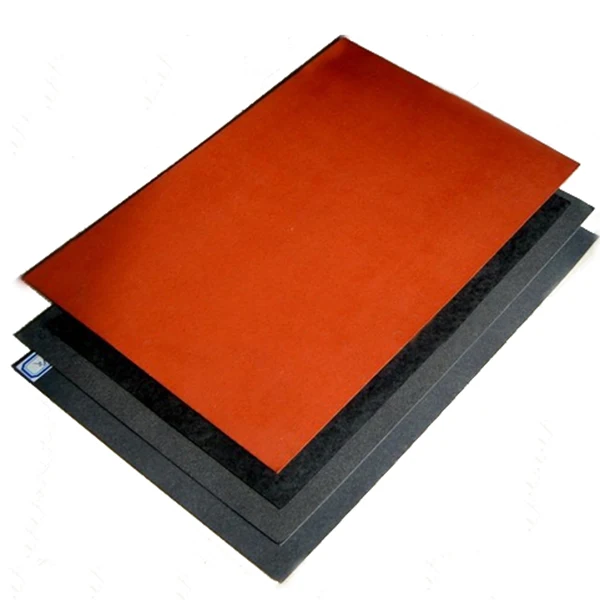

Color: Gray, Black, Red, Green.
The other size is optional or according to the requirements of customers.

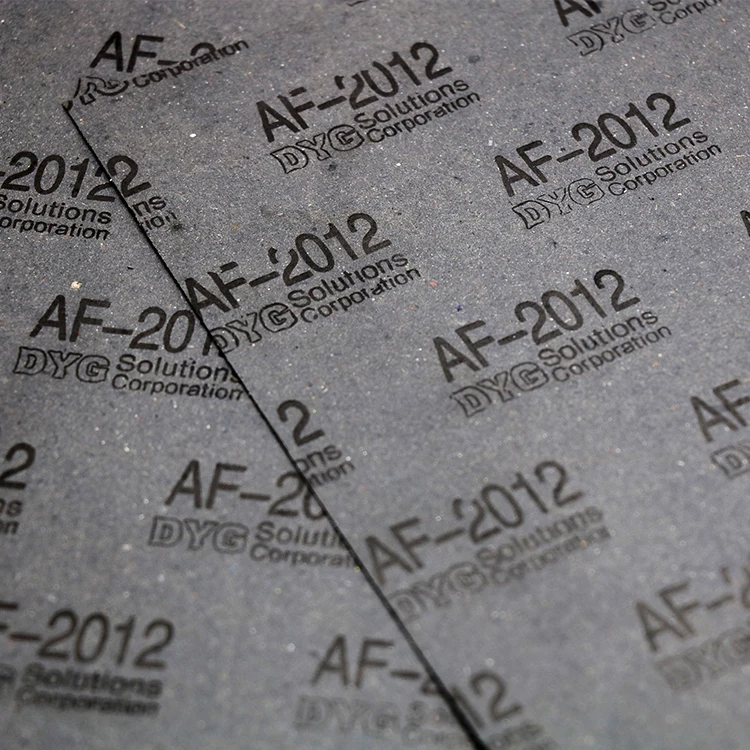

Asbestos free beater sheet or beater paper
Thickness
0.5~2.0mm
Brand Name
Aohong
Length
500mm, 1000mm, 1200mm,1500mm
Width
500mm, 1000mm
Color
Grey, Black, White, graphite, Green, Red
Origin
Hebei China
Details Images
Related products
Exhaust gasket sheet
Non asbestos composite sheet
Graphite coated rubber gasket sheet
Packing and delivery

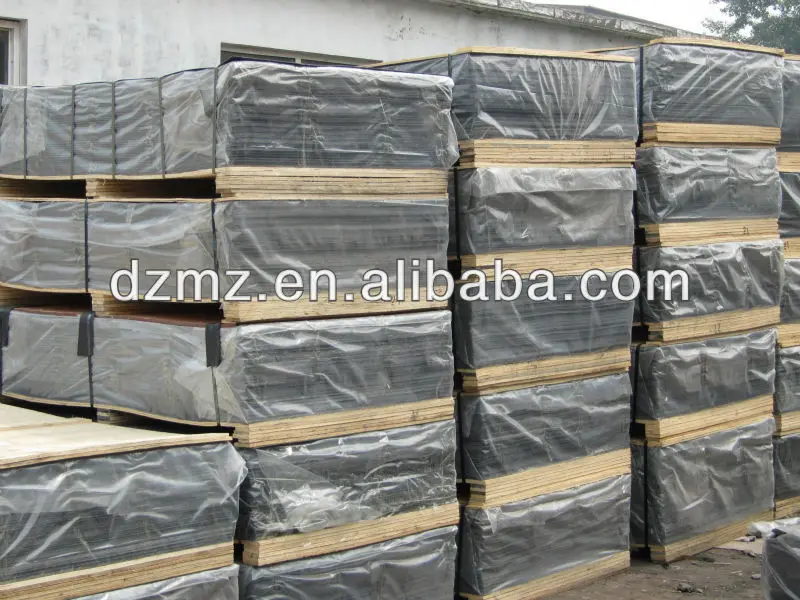

Packing in wooden pallet or as customer request.
