Aohong cylinder head gasket material

Product Description

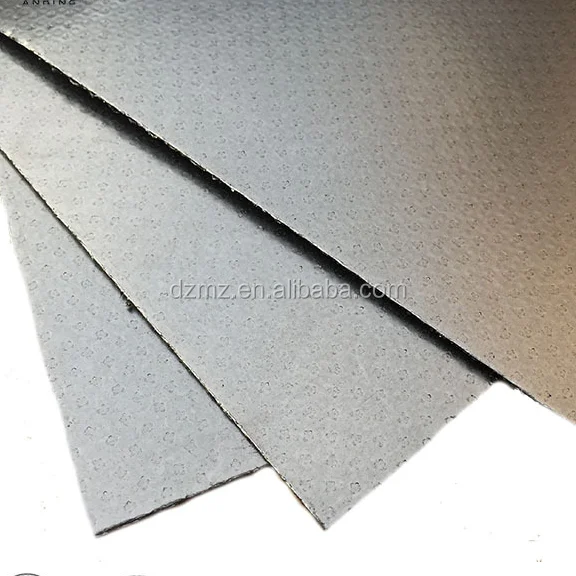

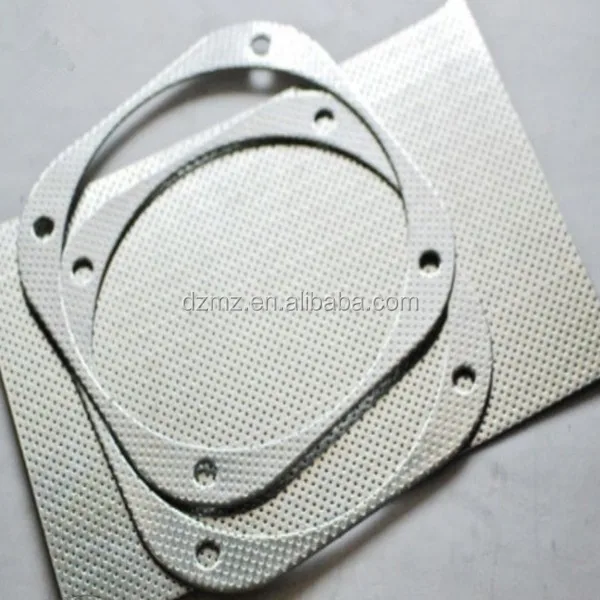

cylinder head gasket

Cylinder head gasket sheet mainly used for gasket cylinder head gasket, engine gaskets, and other industrial purposes.
Composition: two sides Tin plate, non asbestos rubber sheet inseated, or, two sides graphite sheet with tin plate insearted.
Density 2.3-2.5g / cm3
Operating temperature -200 ~ 1200Deg.C (absence of oxygen)
Tensile strength> 70 kgf / cm2
Compressive strength> 800 kgf / cm2
Carbon content of> 98%
Ash content <1.0%
Compression rate> 15%
Rebound> 35%
Detailed Images
Packing & Delivery


Hengshui Aohong Special Glass Manufacturing Co., Ltd.
     Quick Shipping. 20+ Years Of Experience. Request A Call Back.

Address:1-1-908 Fuxing International Park, Ronghua Street, Taocheng District, Hengshui City, Hebei Province.
Zip code: 053000     Tel: +86-318 5261914   Fax: +86-318 5260912

E-mail: info@cn-aohong.com          Website:www.cn-aohong.net
