Aohong Great Acid-resistant jointing gasket sheet

Made of mineral fiber, rubber and heat-resistant sealing material, compressing it to thick sheet. This product is used for the equipment working in water, steam, etc. And used as sealing material in the joints of pipeline.
The series includes: XB150, XB200, XB250, XB300, XB350, XB400, XB450, XB510. Available sizes: 1270 x 1270 mm, 1350 x 1500 mm, 1500 x 1500 mm, 1500 x 1000 mm, 1500 x 2000 mm, 3800 x 1300 mm, 3800 x 2700mm, 4500 x 1500 mm. The other sizes are also optional, we can customize according to your requirements.

Item
NS450
NS350
NS250
Tensile strength Mpa ≥
14
11
8
Weight-increasing
96.17%(H2SO4)=18mol/L*48h
≤45%
≤40%
≤30%
36.97%(HCL)=12mol/L*48h
≤45%
≤35%
≤25%
10%(HNO3)=1.67MOL/L*48h
≤40%
≤30%
≤20%
Max. Pressure Mpa
4.0
3.0
2.0
Max. Temperature ℃
450
350
250
Strain-decreasing % ≤
50
Aging coefficient
0.9
Softness
No Crack
Density g/cm3
1.9-2.1
Burning Loss %
30
Compressibility
12±5
Elasticity

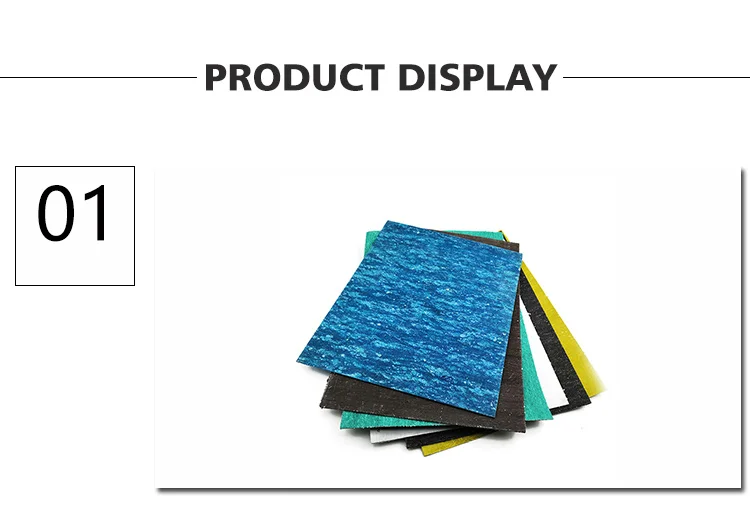

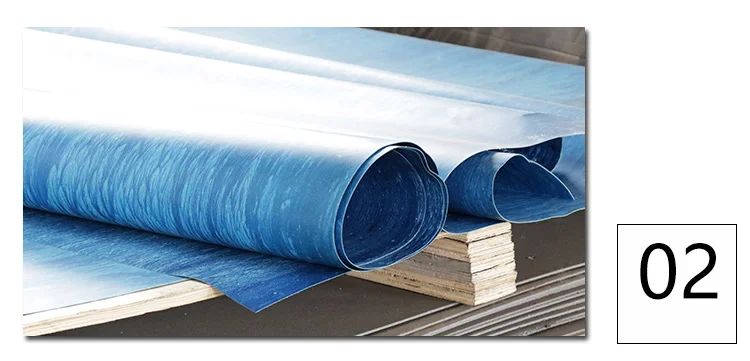

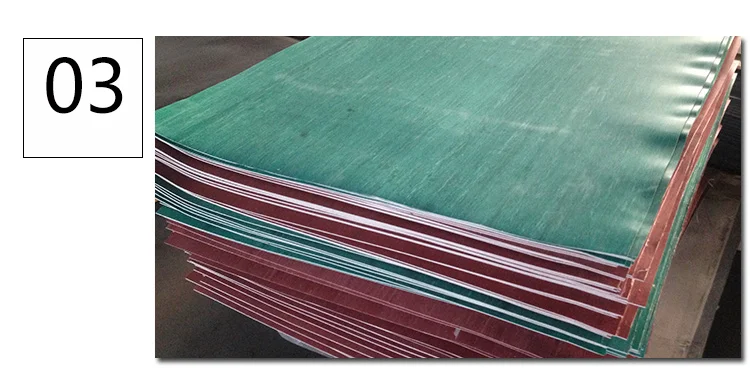

Details Images
Company Profile

Hengshui Aohong Technology Co., Ltd. is an industrial company with an integration of industrial production and trade.

Our company specializes in producing sealings gasket sheets,thermal insulation cloths, rope, tape, level gauge glasses (plane, reflex),etc.

All of our products sell well in both domestic and international markets.

OUR TEAM

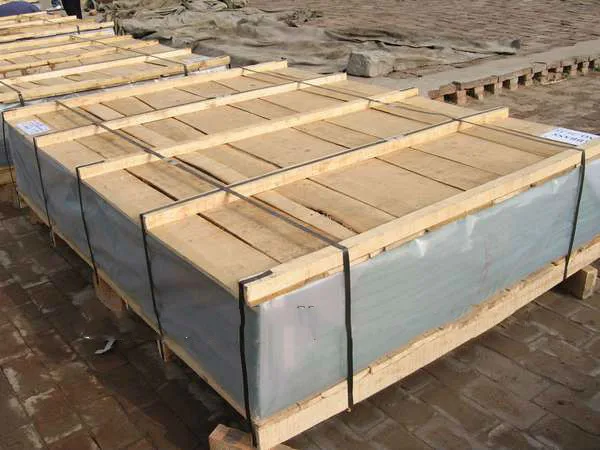

Packing and delivery
Packing in rolls, plywood pallet, plywood case. Or as customers` requests.
By DHL  UPS TNT EMS,By sea or air.
FAQ
1.Can we get your free samples?

Yes, you can. Our free sample can be provided for our customers to test quality. But the freight for express is on buyer's account. The way we send it to you is via DHL, you can also call your local express to pick up samples from our office.

2.Can we do printing or label printing on the bottles?

Yes, you can. We could offer various printing ways: screen printing, hot stamping, label printing.

3.What is the normal lead time?

For stock products, we will send goods to you within 24-48 hours after we receive your payment. For customer color bottle, we will ship out within 3-6 days.

4.What is your shipping terms?

A. For small trial order, FEDEX, DHL, UPS, TNT, etc can be provided.

B. For larger order, we can arrange shipment by sea or by air according to your requirement.

5.How does your factory do regarding quality control?

We do leak test for 3 times before packing.

*Warn Tips: Any man-made damage we cannot change, refund or make up.
