Aohong In Corners Reinforced Braided Graphite Aramid Fiber PTFE Packing

Product introduction
Gland Packing for marine pump
Packing made of 100% g PTFE yarns, and re-impregnated with a silicone lubricant with density about 1.6g/cm3. It is also economical PTFE packing.

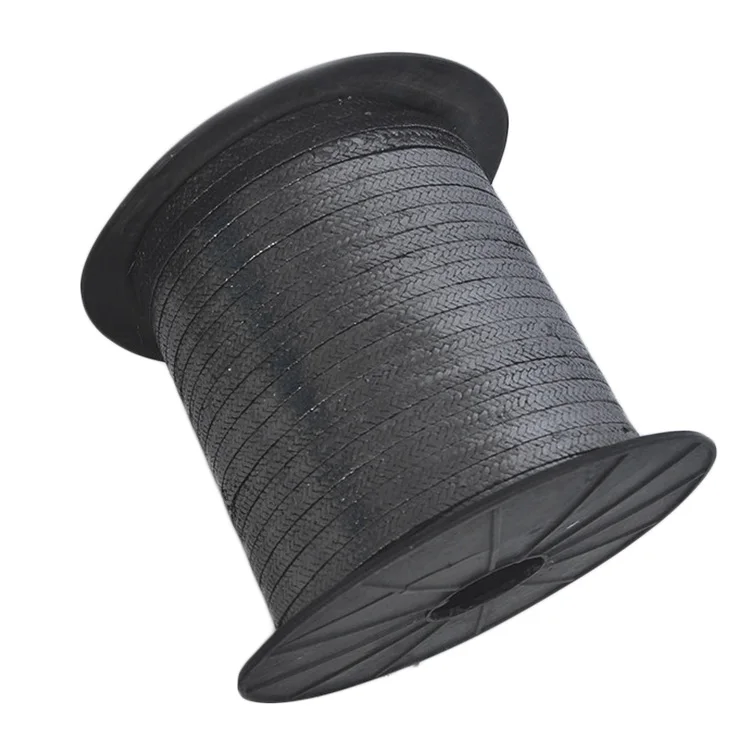

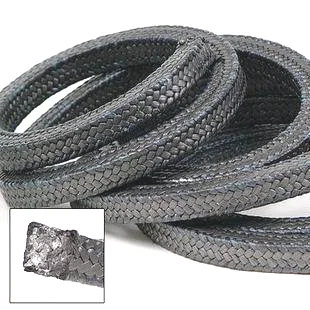

Non asbestos packing with oil and graphite
Size: 6*6mm to 50*50mm
Packing: 5Kg or 10Kg per roll customized weight is available.
Usage :Used as sealing material on rotary shafts, reciprocating pistons and valve spindles. The working medium are steam. air industrial water, petroleum, etc.

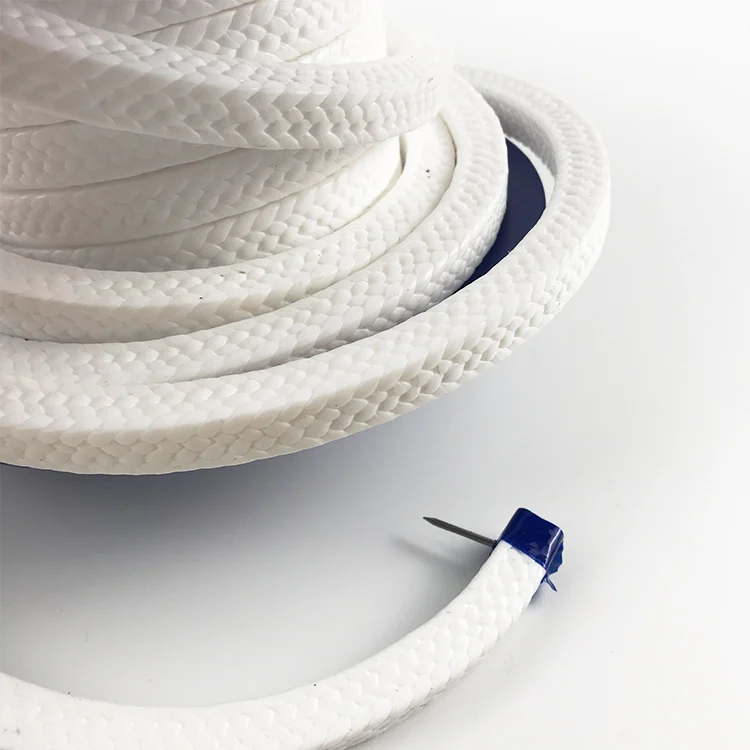

Pure PTFE packing with oil
Size: From 6 x 6 mm to 50 x 50mm.
Packaging: In coils of 5 to 10 kg, other weight on request; as precut length.
Application: Designed for valves and lower shaft speed applications under medial pressure in food processing, pharmaceuticals,
paper mills, fiber plants where high purity and corrosion resistance is required.

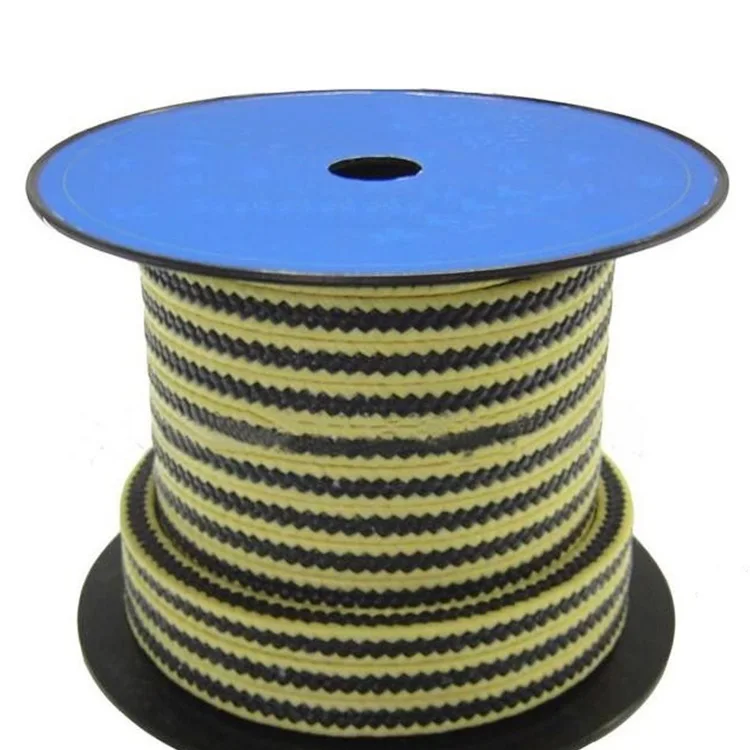

G-PTFE & ARAMID IN ZEBRA BRAIDED PACKING
Size: From 6 x 6 mm to 50 x 50mm.
Packing: In coils of 5 to 10 kg, other weight on request; as precut length.
Application: Offers the strength of aramid fibers, the thermal dissipating and low friction property of graphited PTFE. Used in
reciprocating pumps, mixers, reactors and valves for petrochemical, paper and sugar industries , power stations.
Details Images

Available size:


Square:4*4mm, 6*6mm, 8*8mm, 10*10mm, 12*12mm, 14*14mm, 16*16 mm, 18*18mm,20*20mm, 22*22mm,25*25mm, 30*30mm, 35*35mm, 40*40mm,
45*45mm, 50*50mm , etc.
Can also be produced into flat or round according to customers’ specific requireme.

Pressure
Rotating
15 bar
Reciprocating
100 bar
Static
200 bar
Shaft speed
12 m/s
Density
1.65g/cm3
Temperature
-150~+280°C
PH range
0~14
Packing and delivery

1)carton box /plastic woven bag
2)delivery time:15-20days after the order confimed
3)supply ability:500meter per day

Hengshui Aohong Special Glass Manufacturing Co., Ltd.
     Quick Shipping. 20+ Years Of Experience. Request A Call Back.
Address:1-1-908 Fuxing International Park, Ronghua Street, Taocheng District, Hengshui City, Hebei Province.
Zip code: 053000     Tel: +86-318 5261914   Fax: +86-318 5260912
E-mail: info@cn-aohong.com          Website:www.cn-aohong.net
