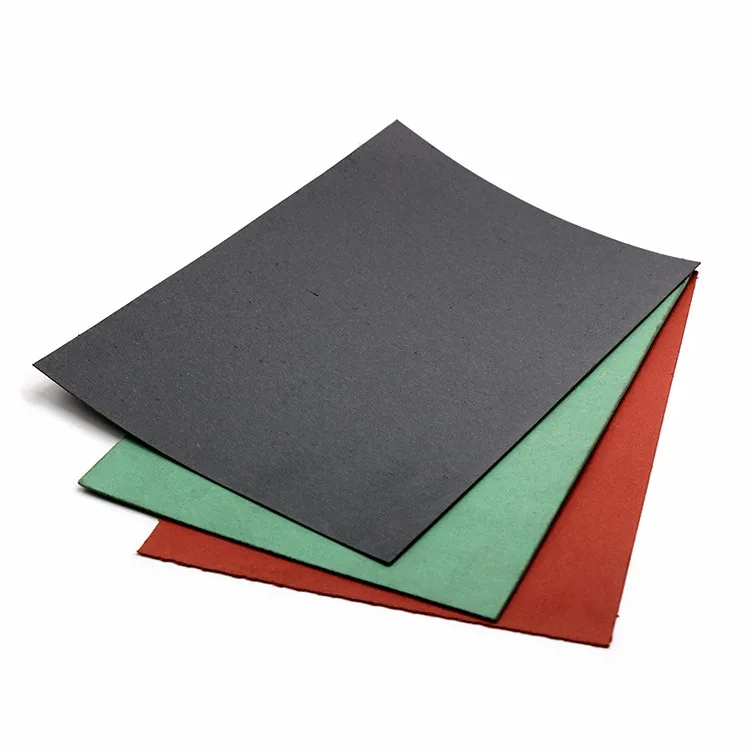

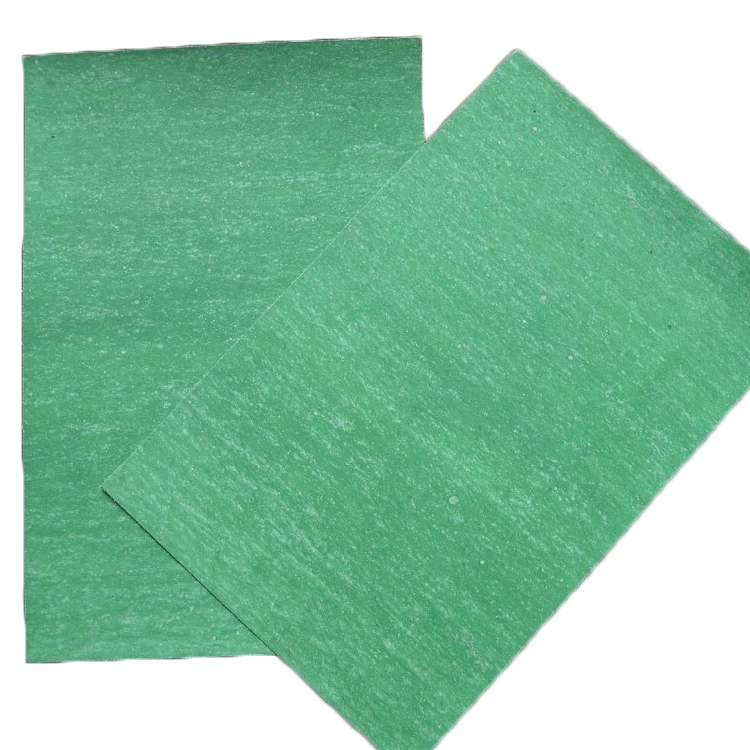

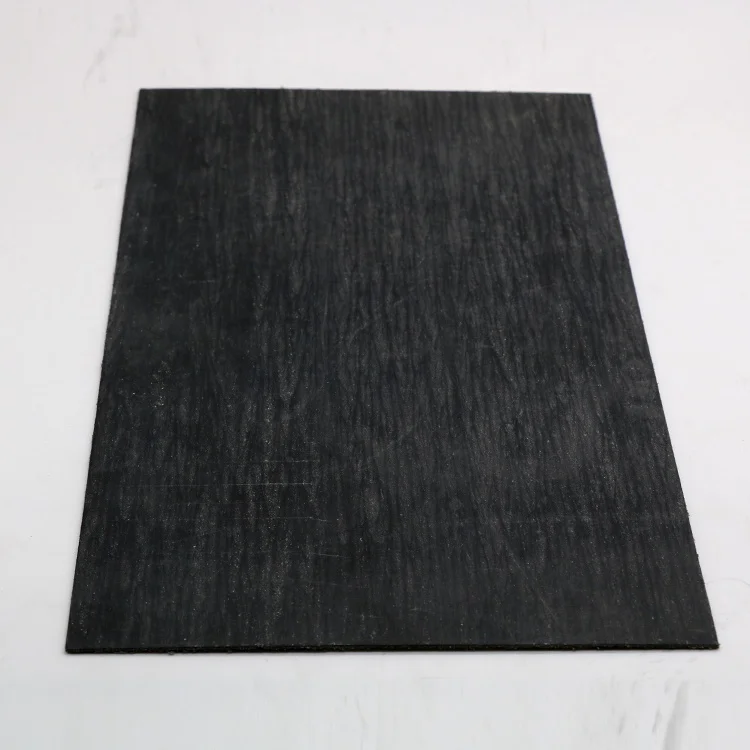

Aohong Non-asbestos rubber sheet

Made of mineral fiber, heat-resistant sealing material, and special nature or NBR rubber compressing it to thick sheet. This product is used for the equipment working in water, steam, etc. And used as sealing material in the joints of pipeline.
The series includes: NXB200, NXB300, NXB350, NNY150, NNY200, NNY300, NNY350.

Non-asbestos rubber sheet series: NXB200, NXB300, NXB350
Used for the equipment in water, steam, etc. and used as sealing material in the joints of pipeline
Working pressure: 1.5~8.0 MPa ,Working temperature: 150 ~450℃.

Oil-resistance non-asbestos rubber sheet series: NNY150, NNY250, NNY300, NNY350.
Mainly used as the aviation liquid the motive's kerosene, lubricant, the fuel oil and cold air system to join together the seal completely of place the sealing gasket material.
Working pressure: 7.0~12 MPa, Working temperature: 150 ~450℃.

Available sizes:1270 x 1270 mm, 1350 x 1500 mm, 1500 x 1500 mm, 1500 x 1000 mm,
1500 x 2000 mm, 3800 x 1300 mm, 3800 x 2700mm, 4500 x 1500 mm.
The other sizes are also optional, we can customize according to your requirements. Meanwhile, steel wire net inserted (coated with graphite) is also available.

Data Sheet                                                   GB/T3985-2008

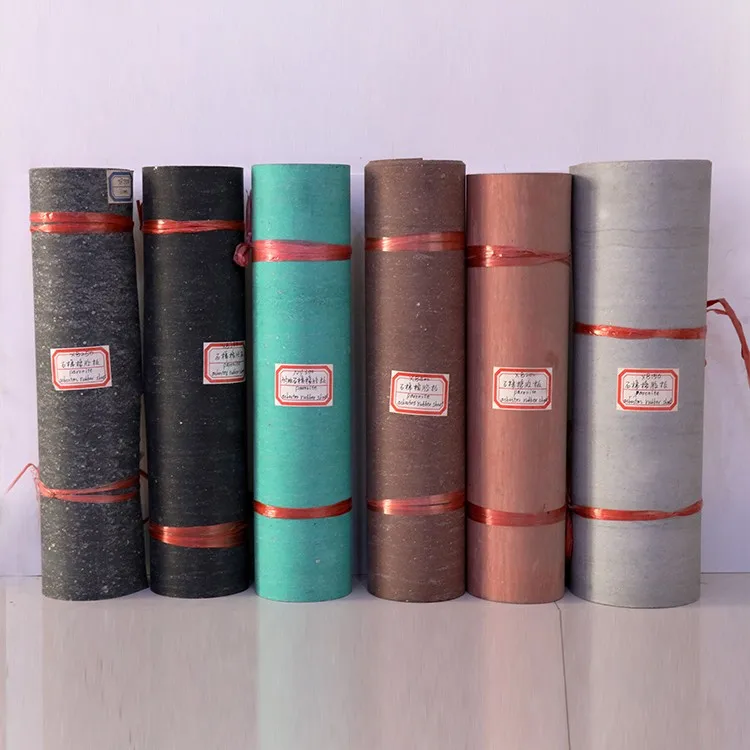

Detailed Images
Packing & Delivery
Packing detail:White paper box for each piece, 50 pieces in one carton, or as customer`s requirements.
Delivery detail:Shipped within 7 days after payment
