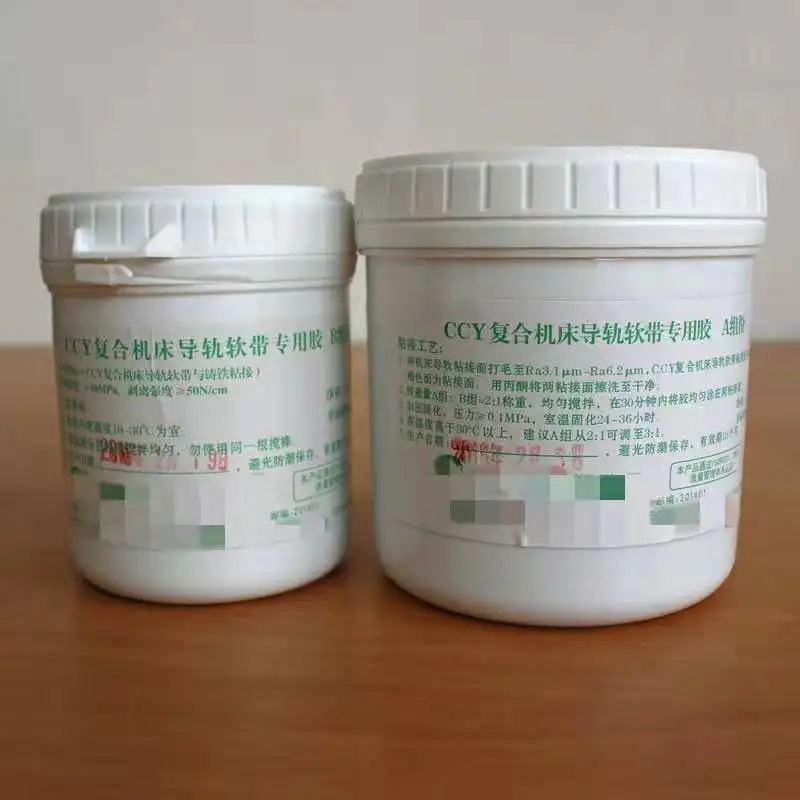

Aohong plaining machine turcite sheet with special glue

Product Description
Slideway turcite is a kind of composite material of PTFE with the nano polymer as the base. In view of high-end guide soft belt products for all kinds high precision of  machine tools, CNC equipment and processing centers.  It contains rich particles of solid lubricants, excellent friction and wear properties.

Special properties
· High wear resistance; · Low friction; · Good shock absorption; · Good lubrication; · Easy maintenance.

Property
unit
value
Density
g/cm3
3.0~3.2
Shore hardness
points
58
Tensile strength(horizontal)
N/mm2
20
Elongation at break(horizontal)
%
250
Bearings
N/mm2
8
Dynamic friction coefficient(with LuBe)
/
0.04
Static friction coefficient (with LuBe)
/
0.04
Dynamic friction coefficient (without LuBe)
/
0.15
Static friction coefficient (without LuBe)
/
0.16
Working temperature
℃
-200/260
Linear expansion corfficient(25~95℃)
10-5/℃
8~10
The data we are herewith providing are all based on laboratory testing and are proposed to technical designers as possible and useful advice.

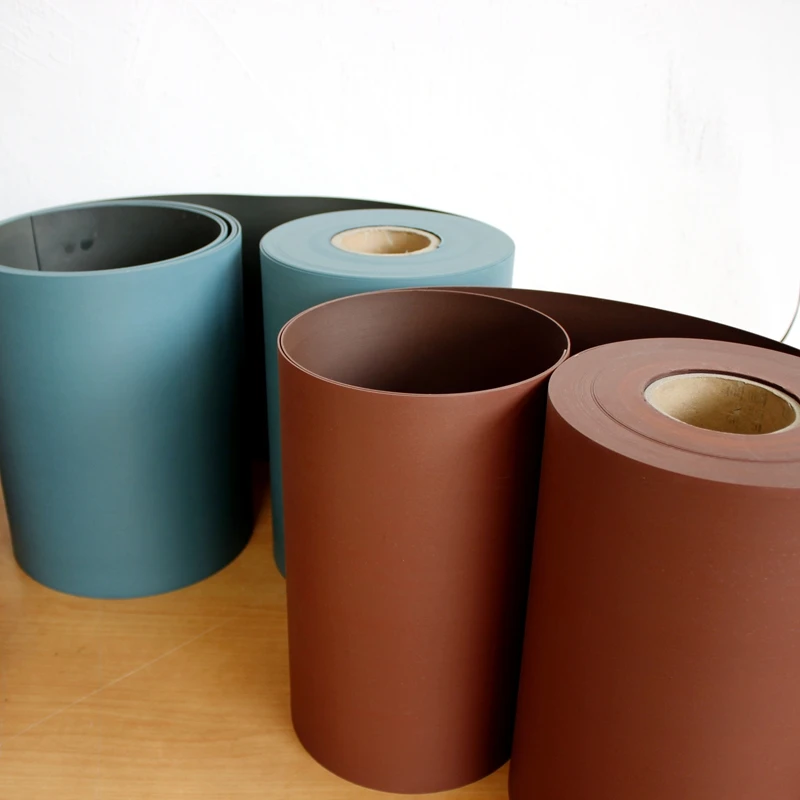

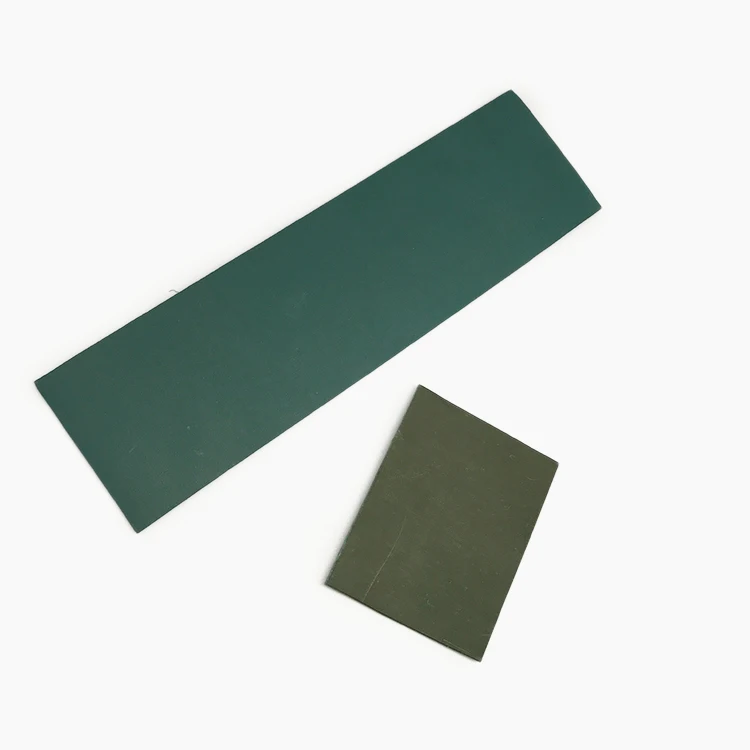

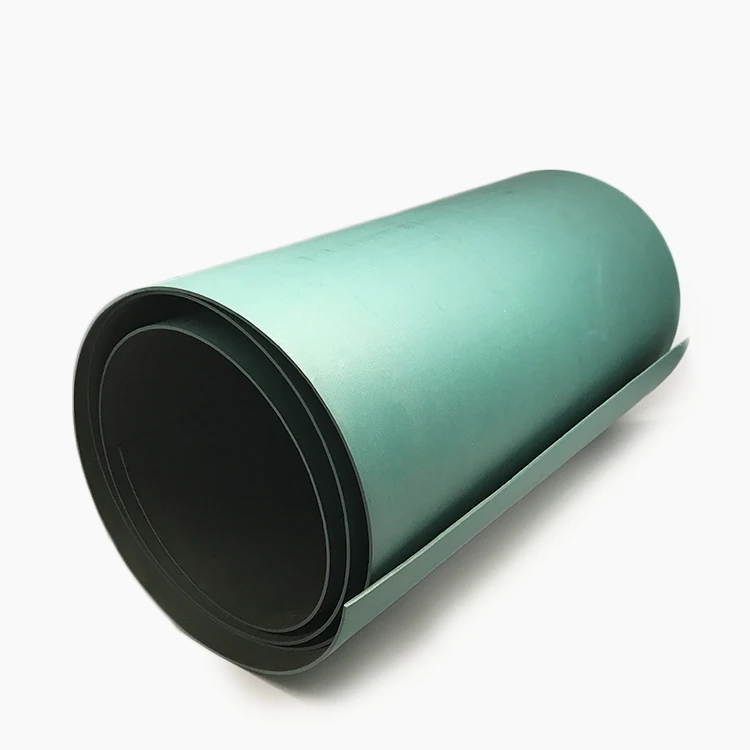

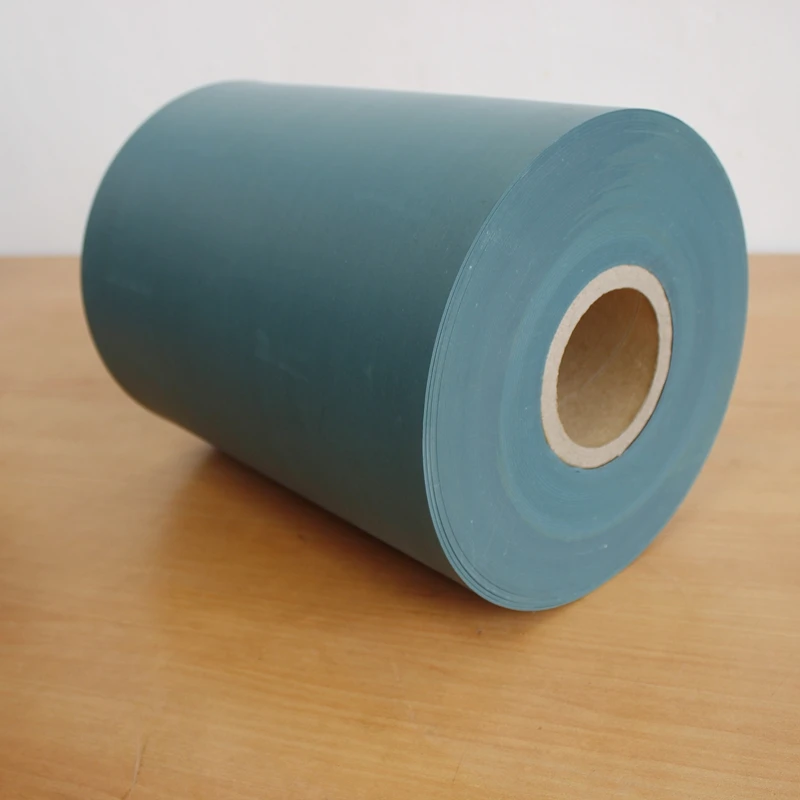

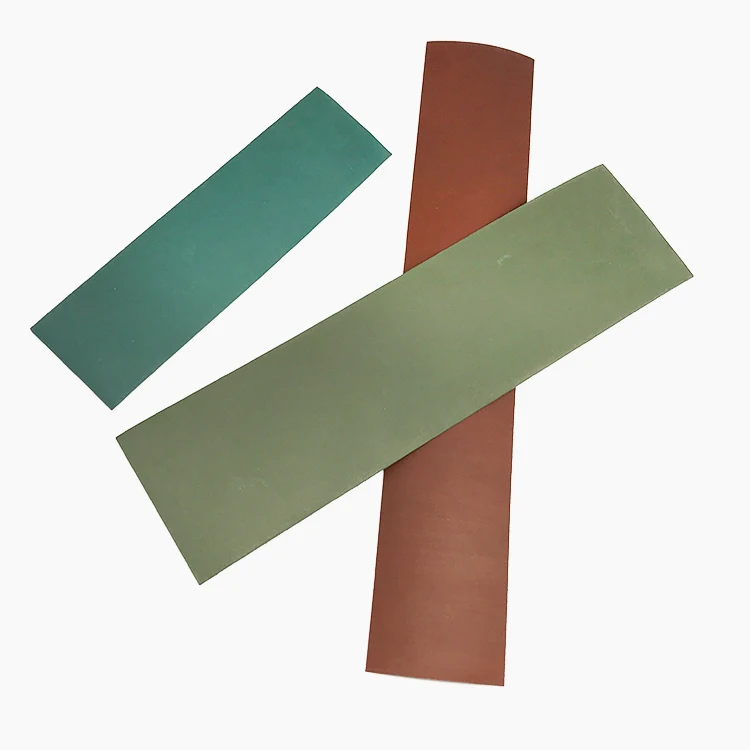

Details Images
What is a CNC machine Slideway turcite ?   CNC machine Slideway turcite sheet is a proprietary formulation of PTFE material impregnated with bronze and friction reducing additives.   What does a Turcite Slideway do?   1.  Reduces friction and wear 2.  Increases accuracy 3.  Extends machine life 4.  Saves energy 5.  Reduces damage caused by mechanical problems

Packing and delivery
In carton. By DHL UPS TNT EMS,By sea or air.
Company Profile
Hengshui Aohong Technology Co., Ltd. is an industrial company with an integration of industrial production and trade.   Our company specializes in producing sealings gasket sheets,thermal insulation cloths, rope, tape, level gauge glasses (plane, reflex),etc.   All of our products sell well in both domestic and international markets.
20 Years of Indusrial glass and gasket manufacture experience
10 years of export sealing material experience OEM manufacture is available Technical guidance Import guidance

Hengshui Aohong Special Glass Manufacturing Co., Ltd.
     Quick Shipping. 20+ Years Of Experience. Request A Call Back.
Address:1-1-908 Fuxing International Park, Ronghua Street, Taocheng District, Hengshui City, Hebei Province.
Zip code: 053000     Tel: +86-318 5261914   Fax: +86-318 5260912
E-mail: info@cn-aohong.com          Website:www.cn-aohong.net
