Aohong round boiler borosilicate frosted sight glass

Borosilicate glass according to DIN 7080.
For compressive stress with temperatures borosilicate circular sight glass up to max. 280 degrees Celsius,
In a toughened form, temperatures up to 315 degrees Celsius are possible whilst annealed glass may be used up 400 degrees Celsius continuously with a short term maximum of 500 degrees Celsius.
Soda Lime glass according to DIN 8902.
For compressive stress with temperatures borosilicate circular sight glass up to max. 150 degrees Celsius,
This is the most commonly used material due to its low cost. It can be easily toughened to effectively increase the mechanical strength of annealed glass by up to five times.
Quartz glass according to customer's requirements, made from JGS1, JGS2, JGS3, on production.
The main dimensions in table:

No
Diameter
Thickness

mm
mm
1
50
10(9-11), 15(14-16), 20(19-21), 25(24-26)
2
55-60
10(9-11), 15(14-16), 20(19-21), 25(24-26)
3
65-70
10(9-11), 15(14-16), 20(19-21), 25(24-26)
4
75-80
10(9-11), 15(14-16), 20(19-21), 25(24-26)
5
85-90
10(9-11), 15(14-16), 20(19-21), 25(24-26)
6
95-100
10(9-11), 15(14-16), 20(19-21), 25(24-26)
7
105-110
10(9-11), 15(14-16), 20(19-21), 25(24-26)
8
115-120
10(9-11), 15(14-16), 20(19-21), 25(24-26)
9
125-130
10(9-11), 15(14-16), 20(19-21), 25(24-26)
10
135-140
10(9-11), 15(14-16), 20(19-21), 25(24-26)
11
145-150
10(9-11), 15(14-16), 20(19-21), 25(24-26)
12
155-160
10(9-11), 15(14-16), 20(19-21), 25(24-26)
13
165-170
10(9-11), 15(14-16), 20(19-21), 25(24-26)
14
175-180
10(9-11), 15(14-16), 20(19-21), 25(24-26)
15
185-190
10(9-11), 15(14-16), 20(19-21), 25(24-26)
16
195-200
10(9-11), 15(14-16), 20(19-21), 25(24-26)
17
205-220
10(9-11), 15(14-16), 20(19-21), 25(24-26)
18
225-240
10(9-11), 15(14-16), 20(19-21), 25(24-26)
19
245-260
10(9-11), 15(14-16), 20(19-21), 25(24-26)
20
265-280
10(9-11), 15(14-16), 20(19-21), 25(24-26)
21
285-300
10(9-11), 15(14-16), 20(19-21), 25(24-26)
22
305-330
10(9-11), 15(14-16), 20(19-21), 25(24-26)
23
335-360
10(9-11), 15(14-16), 20(19-21), 25(24-26)

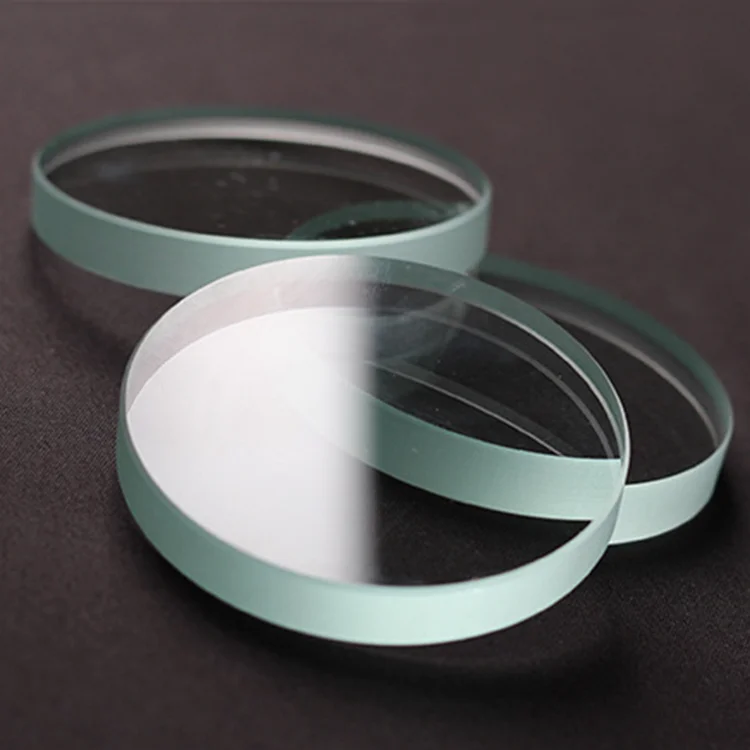

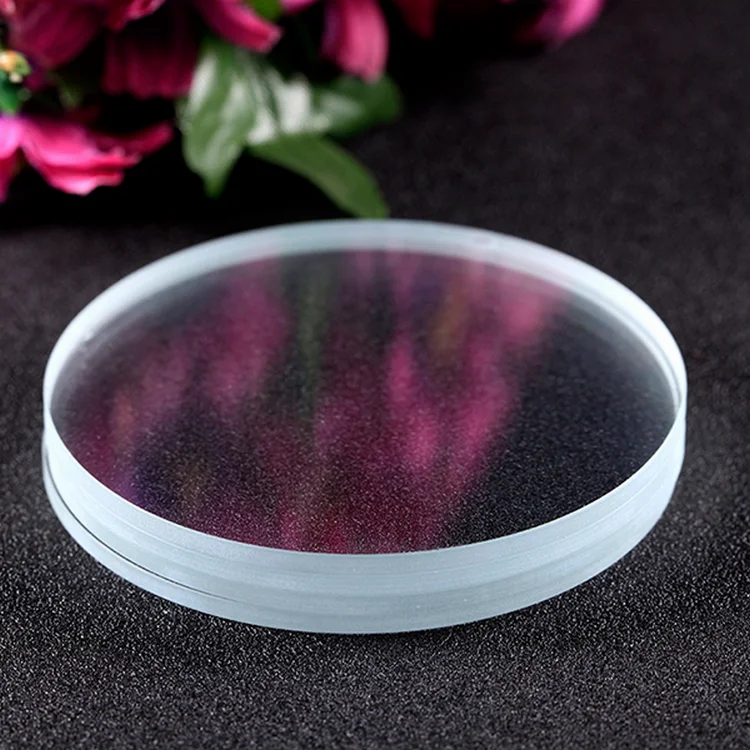

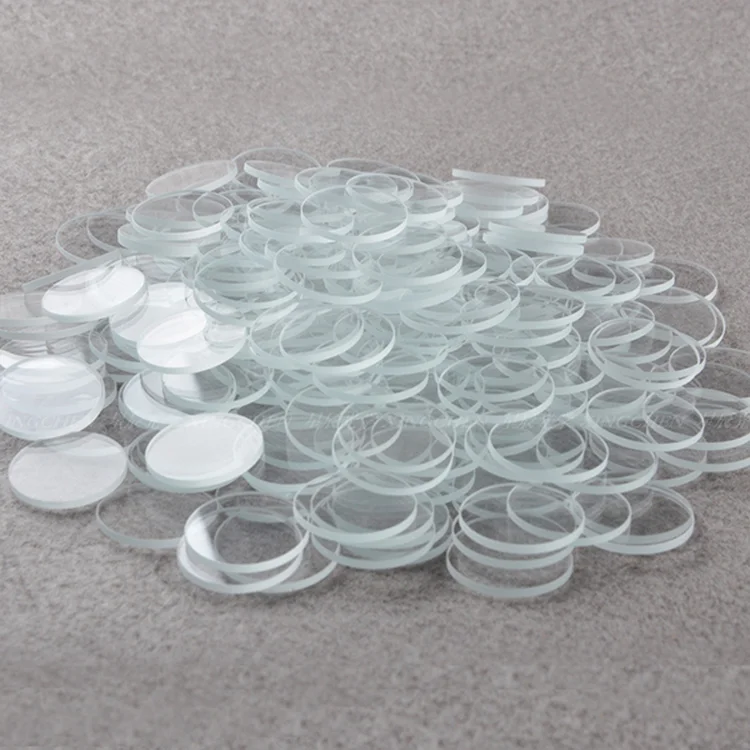

round boiler borosilicate frosted sight glass
round boiler borosilicate frosted sight glassround boiler borosilicate frosted sight glassround boiler borosilicate frosted sight glass
round boiler borosilicate frosted sight glass

Hengshui Aohong Special Glass Manufacturing Co., Ltd.
     Quick Shipping. 20+ Years Of Experience. Request A Call Back.
Address:1-1-908 Fuxing International Park, Ronghua Street, Taocheng District, Hengshui City, Hebei Province.
Zip code: 053000     Tel: +86-318 5261914   Fax: +86-318 5260912
E-mail: info@cn-aohong.com          Website:www.cn-aohong.net
