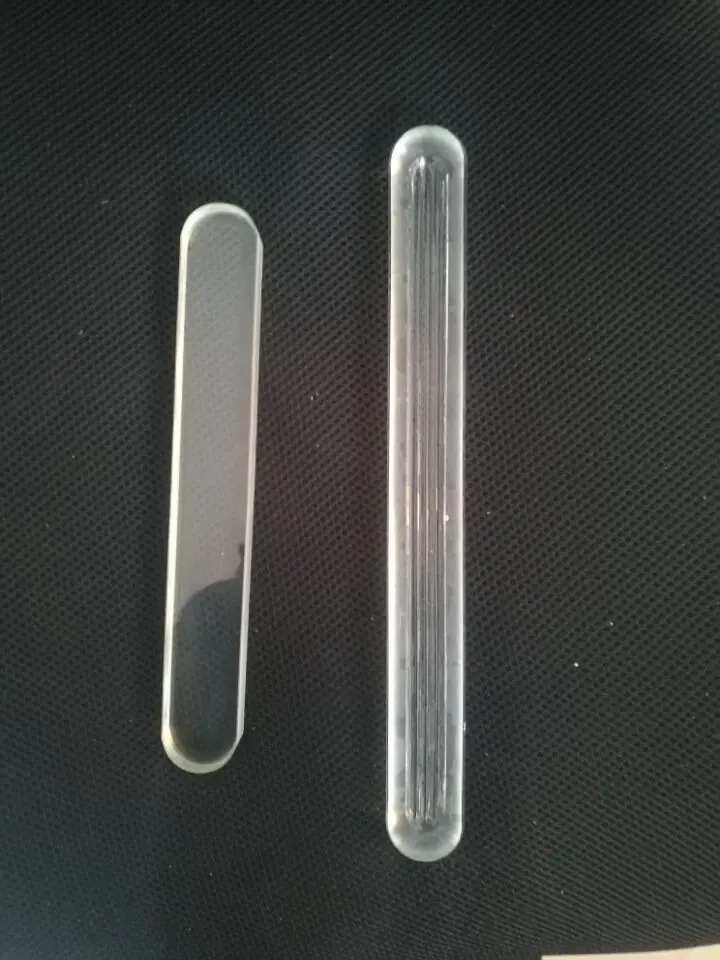

Groove type level gauge glass Sight glass for boiler water level gauge

Tempered borosilicate sight glass for Boiler water level gauge

Transparent flat type high borosilicate glass
Maximum allowable pressure: ≤160kg/cm2
Expansion factor: 3.3
Heat stability: ≤300 ℃  Heat-resistant temperature:≤450 ℃
Acid and alkali Resistance: Test according to GB-6581, First Grade

Reflex flat 3 line 4grooves high borosilicate glass
Maximum allowable pressure: ≤70kg/cm2
Expansion factor: 3.3
Heat stability: ≤300℃  Heat-resistant temperature:≤450 ℃
Acid and alkali Resistance: Test according to GB-6581, First Grade

Graphite gasket with SS316 steel plate structure
Size: 280*34*2mm
Max. temp: 500 degree C
size # 7, made of 99% pure graphite,
density of 701 lb/ft3 (1121.4 kg/cm3), with a melting point of 3315.56 °C (6000 °F), And a compressive strength of 1687.37 kg/cm3 (24000 psi)
steel layer material: SS316
Item
Technique requirements
Sample test result
Quality
Compression ratio %
15-35
30.3
Qualified
Compression resilience ratio %
>=20
20.5
Qualified
Seal leakage cm3/s
<1.0 x 10-3
0.49 x 10-4
Qualified
Aluminosilicate Glass
Material:Resistance to high temperature and high pressure aluminum silicon glass

Size:
80*21*17, 80*24*21, 108*24*17, 108*24*21, 118*24*17, 118*24*21, 130*24*17, 130*24*21, 130*26*19, 140*34*17, 160*34*17, 165*34*17, 190*34*17, 218*34*17, 220*34*17, 250*34*17, 265*26*19, 280*34*17, 320*34*17, 340*34*17, 370*34*17, 400*34*17

Main performance index:
Flexure strength: 280MPa
Compressive strength: 2800kg/cm2
Softening temperature: ≥ 900ºC
Coefficient of thermal expansion: 42-50 * 10-7/ k
Thermal stability: ≥200ºC or higher
Working conditions: the highest working temperature 500ºC
Working pressure: the maximum working pressure ≤ 22.5 MPa
Packaging & Delivery
Packaging Details
1,Glass film processing;External wooden packaging, Glass are to be paper or expandable polyethylene pearl Cotton (EPE) packed in strong seaworthy wooden crates.
2.Wooden crates worthy for ocean and land carriage.
Delivery Time
shipped in 3-20 days after payment
Groove type level gauge glass Sight glass for boiler water level gauge

Hengshui Aohong Special Glass Manufacturing Co., Ltd.
     Quick Shipping. 20+ Years Of Experience. Request A Call Back.
Address:1-1-908 Fuxing International Park, Ronghua Street, Taocheng District, Hengshui City, Hebei Province.
Zip code: 053000     Tel: +86-318 5261914   Fax: +86-318 5260912
E-mail: info@cn-aohong.com          Website:www.cn-aohong.net
