Aohong Sealing Gasket Compressed non Asbestos Fiber Jointing Sheet

Free or Non Asbestos Gasket Jointing Rubber Sheet

Product Description

Non-Asbestos Jointing Sheets are made of special no-asbestos heat-resisting fiber, heat-resisting packing material, and special nature or NBR rubber compound heating and compression molding it.

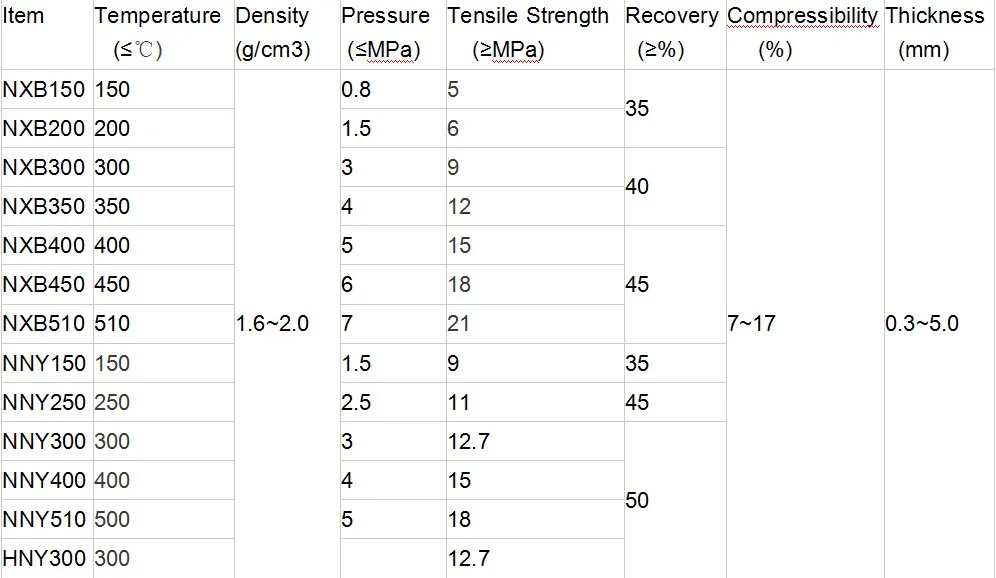

Non-asbestos rubber sheet series include: NXB200, NXB300, NXB350

Uses: Used for the equipment in water, steam, etc. and used as sealing material in the joints of pipeline
Working pressure: 1.5~8.0 MPa ,Working temperature: 150 ~450℃.

Oil-resistance non-asbestos rubber sheet series include: NNY150, NNY250, NNY300, NNY350.

Uses: Mainly used as the aviation liquid the motive's kerosene, lubricant, the fuel oil and cold air system to join together the seal completely of place the sealing gasket material.
Working pressure: 7.0~12 MPa, Working temperature: 150 ~450℃

Available Sizes:

Thickness: 0.5 to 6mm

1500 x 4500mm,  1500 x 4100mm,  1300 x 3850mm,  1500 x 2000mm,
1500 x 1500mm,  1500 x 1360mm,   1500 x 1000mm ,  1270 x 1270mm,

The other size is optional or according to the requirements of customers.
 Sealing Gasket Compressed non Asbestos Fiber Jointing SheetSealing Gasket Compressed non Asbestos Fiber Jointing SheetSealing Gasket Compressed non Asbestos Fiber Jointing Sheet

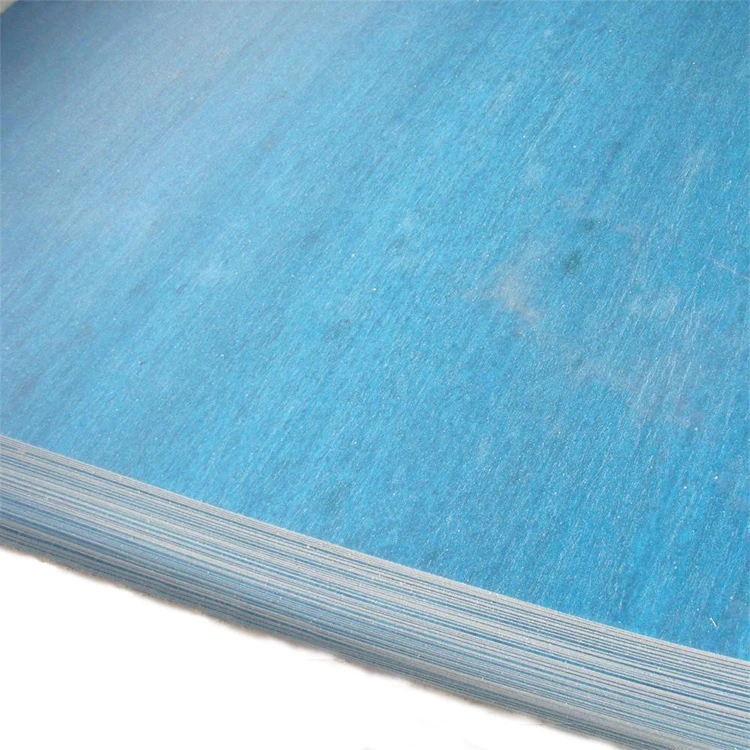

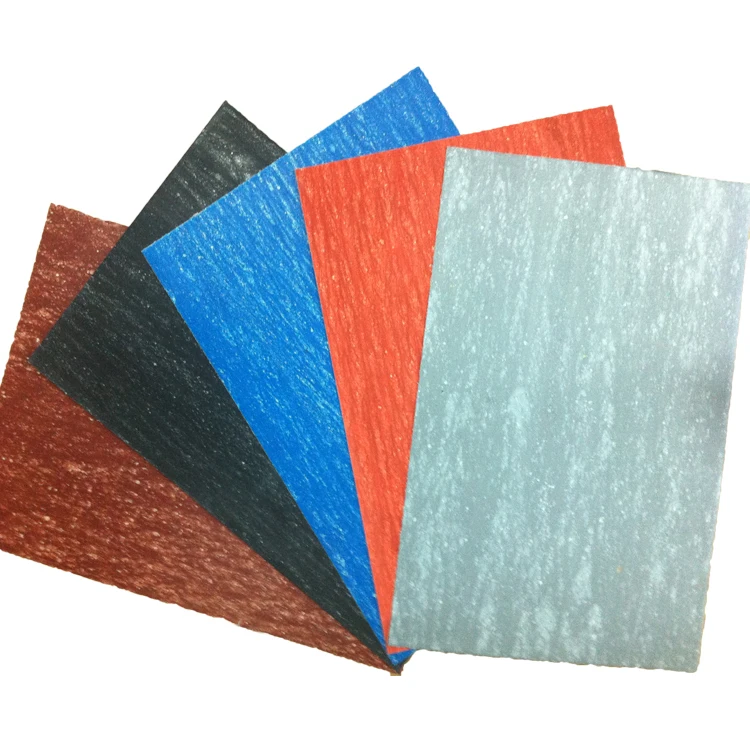

Sealing Gasket Compressed non Asbestos Fiber Jointing Sheet
Packaging & Shipping
Packing Details:in wooden pallet of about 1000 kgs, 2000kgs net each.
Delivery Details:15-20 days after received your payment.



Our Services

  • 20 Years of gasket sheet and material manufacture experience
  • 10 years of export sealing material experience
  • OEM manufacture is available (printing logo or special request)
  • Technical guidance
  • Import guidance
Company Information
  We are an experienced factory and manufacturer of seal materials, espicially In asbestos free rubber sheet, asbestos free rubber gasket, gasket sheet,non-asbestos rubber sheet,non-asbestos rubber gasket,non asbestos beater sheet  ,asbestos free beater sheet (paper),compressed non asbestos  jointing sheet,composite  non asbestos sheet ,PTFE gland packing,PTFE grahite packing,aramid fiber packing, carbon fiber packing, acrylic fiber packing, HDPE fabric,spiral wound gasket,gasket etc


FAQ

Q: Graphited or not on the sheet?

A: No problem, we can make it one side graphited or  both side graphited.

Q: Wire reinforced in the sheet?

A: No problem, common wire diameter 0.20mm and 12 or 16 mesh

Q: Printing logo available?

Yes, it is no problem, shown us the design of the printing, then we make new mould and print it on the sheet.

Q: Are you factory, or only a trading company?

A: Factory, and our factory is located in Wangtong town, Jing county, Hengshui, Hebei

Q:Could I get some samples, and how?

A: No problem, we provide free samples, and it is only needed for you to pay for the shipping charge, your courier account is also ok(such as DHL).

Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However we can discuss it.

Q: What's the payment terms?

A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is open for discussion.
