Aohong China factory price gasket sheet Klinger joint sheet gasket

Product Description
Made of mineral fiber, rubber,oil resistance synthetic rubber and heat-resistant sealing material, compressing it to thick sheet.
This product is used for the equipment working in water, steam, etc. And used as sealing material in the joints of pipeline.
Oil resistant non Asbestos rubber sheet
Thickness: 0.3~5.0mmAvailable size:1500x2000mm,1500x1350mm,
1500x1000mm,1270x1270mm.
Available : NY150 to NY510
Oil resistant non Asbestos rubber sheet
Available color: Black,grey,red, blue.green etcThe working temperature: 150℃~500℃
The working Pressure: 1~15Mpa
It can insert steel wire net and coat graphite one side or both sides.
AoHong Oil resistant non asbestos rubber gasket sheet
Material
Mineral fiber and oil resistance synthetic rubber
Brand Name
AoHong
Origin
Hebei China
Color
Black, gray, red, blue, green, etc.
Thickness
0.3~5.0mm
Maximum width
1550mm
Work temp
150~550℃
Maximum working pressure
15Mpa

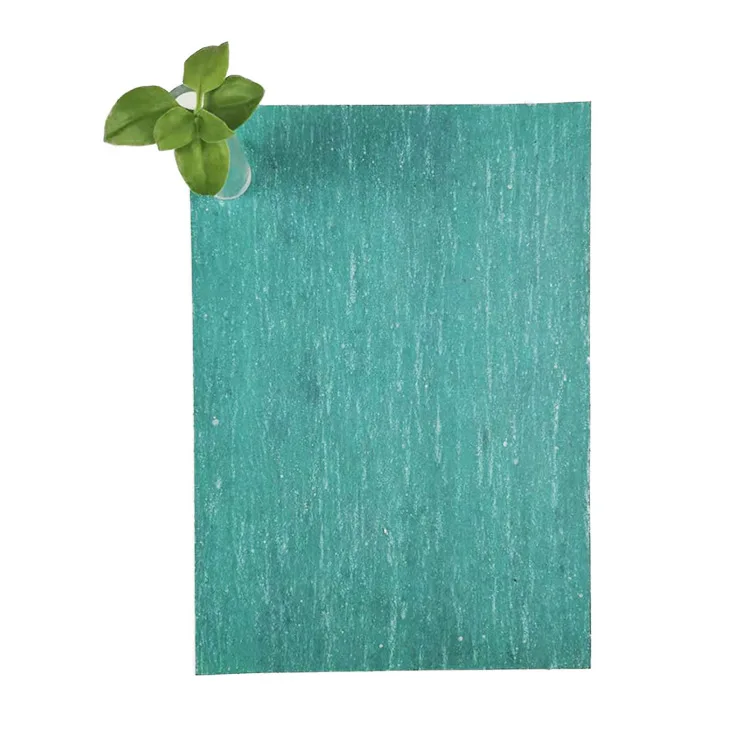

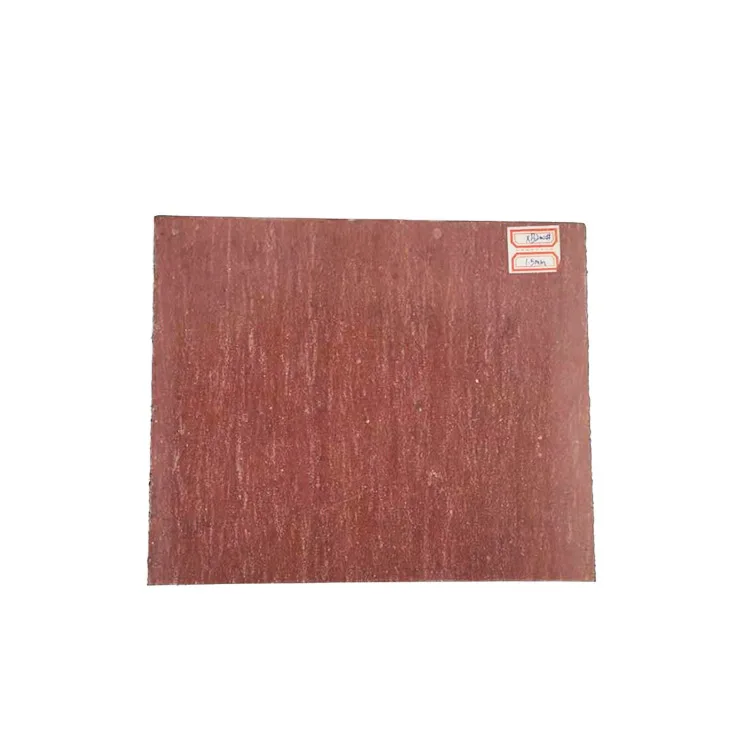

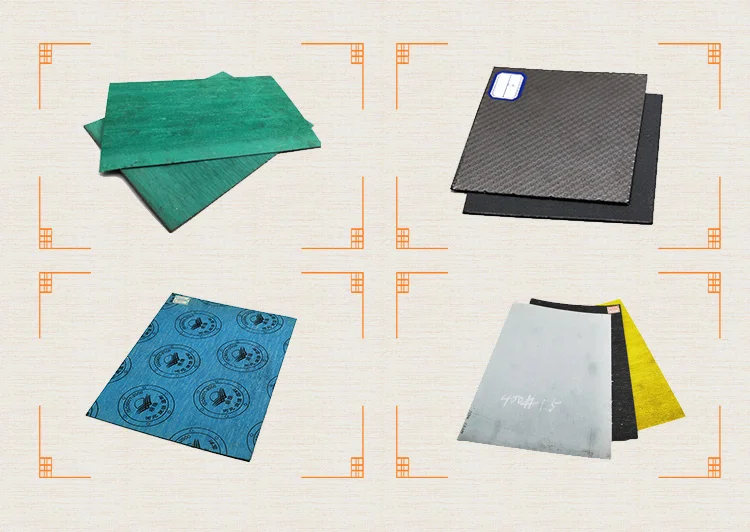

Details Images
Packing and Delivery
Normal Packing: Packing in rolls, plywood pallet, plywood case. Or as customers` requests.
