Aohong China Oil Resistance No-Asbestos Latex Sheet

Non-asbestos beater paper

It is made from synthetic latex, aramid fiber and filling material.
●It don’t vulcanize,usually it is used to be composited with tinplate to non-asbestos composite sheet for cylinder head gasket sheet material.
●Vulcanized non-Asbestos beater sheet, it has smooth face and high density, it can be cut into all kinds of gasket directly for engine sump, gearbox seal gasket.
●Normal color: Grey, Black.
●Size：1000*1500mm, 1000*1300mm, 1000*1200mm, 1000*500mm
●Thickness: 0.5mm to 2mm.
●Used in Automobile, farm machinery, motors, engineering etc.
It can be used in oil system and water supply system at temperature 150C

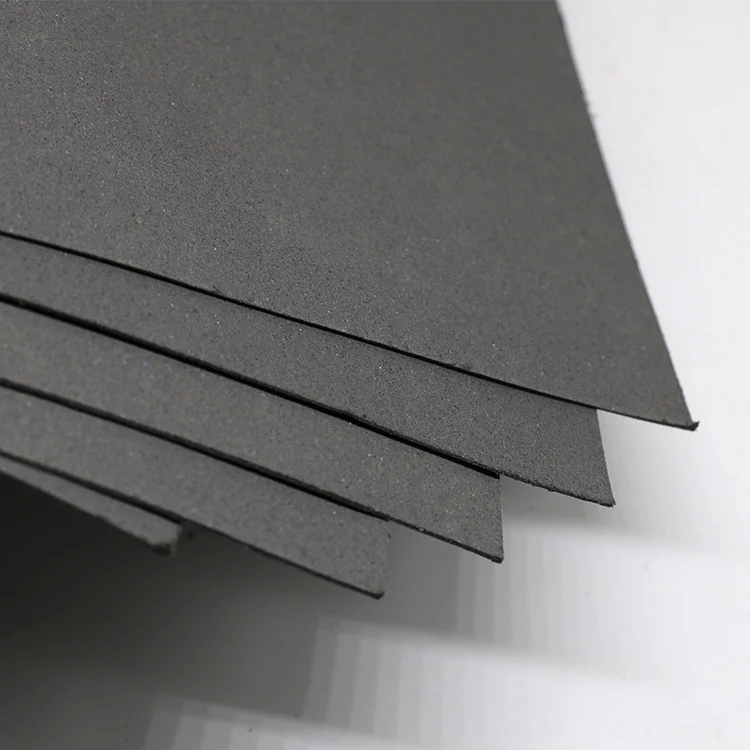

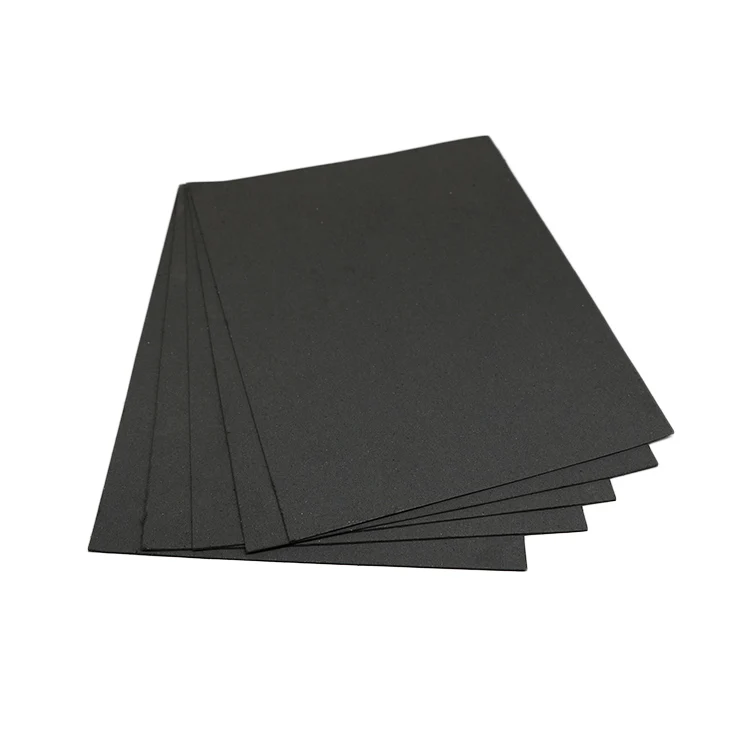

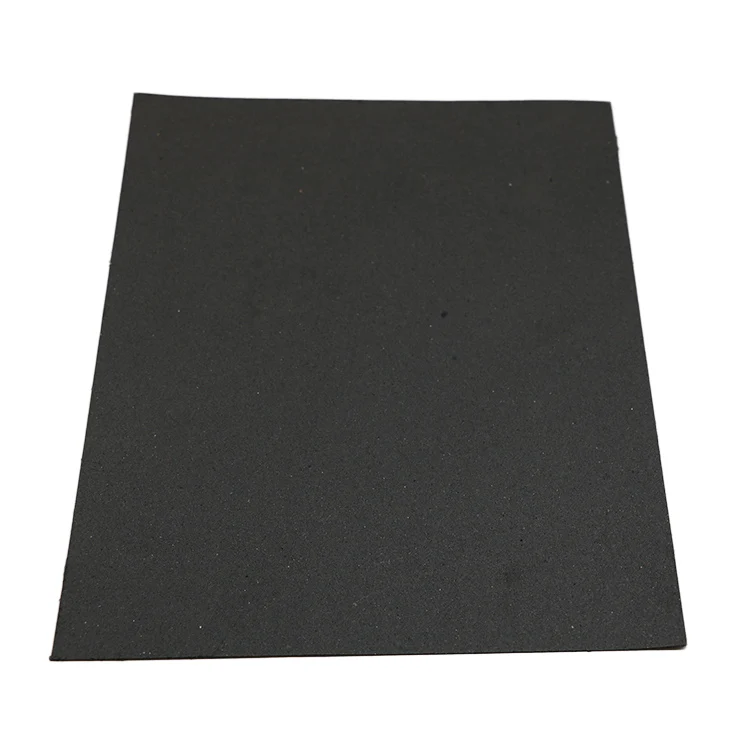

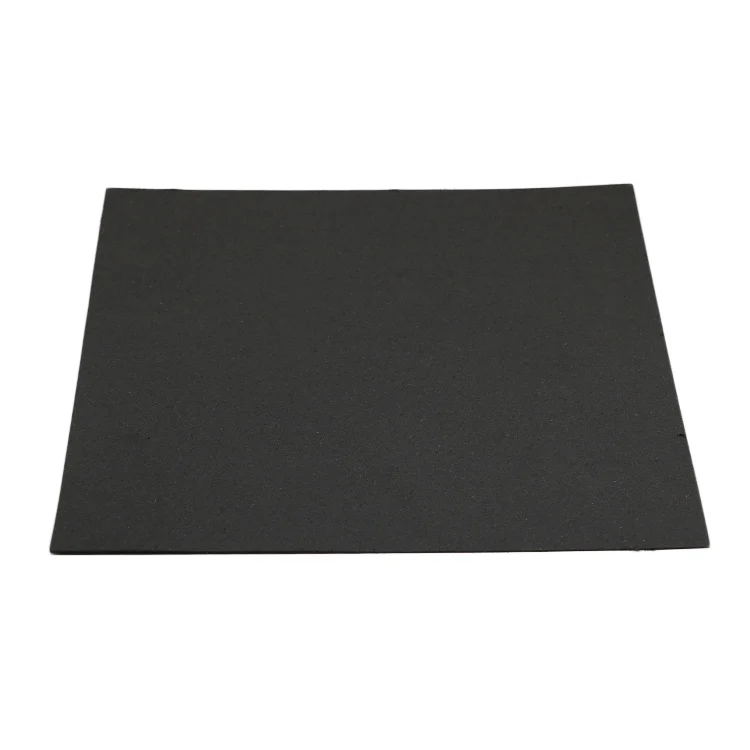

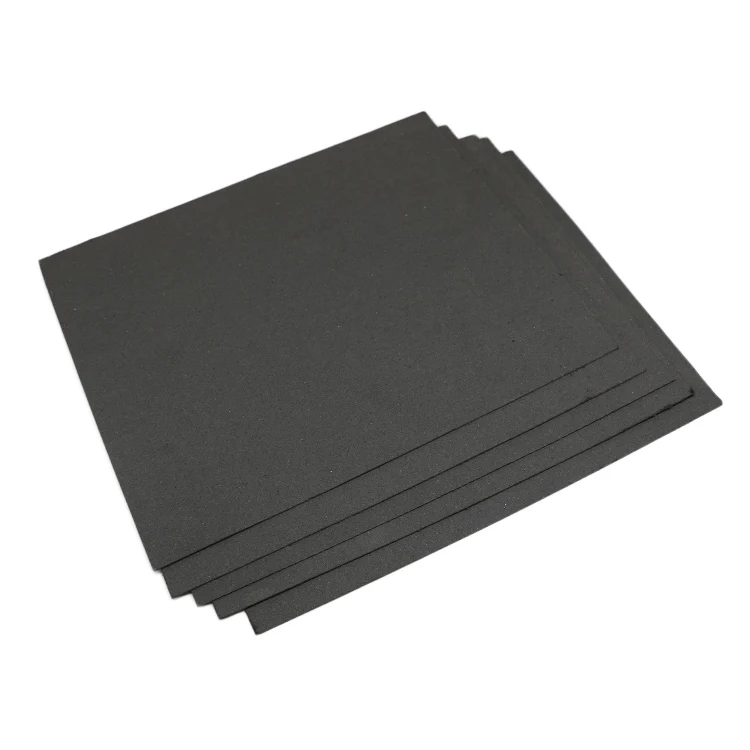

Details Images
item
beater paper
Vulcanized beater sheet
Density g/cm3
1.30±0.1
1.45±0.1
Transverse Tensile strength MPa
≥ 6.0
≥ 12
Recovery %
≥30
40
company profile
Hengshui Aohong Technology Co., Ltd.
Hengshui Aohong Technology Co., Ltd. is an industrial company with an integration of industrial production and trade.
Our company specializes in producing sealings gasket sheets,thermal insulation cloths, rope, tape, level gauge glasses (plane, reflex),etc.
All of our products sell well in both domestic and international markets.
