Aohong Engine Head Gasket Valve Sealing Head Gasket with Good Quality and Factory Price

Asbestos free jointing sheet is made of special heat-resisting fiber, rubber and heat-resisting filling material by roller pressure molding process. It is mainly used as sealing gasket for pipe flange, high pressure vessel flange, internal internal combustion engine and various contact surfaces.
Product Details
Asbestos free jointing sheet can be divided into three kinds according to the sheet property: low pressure jointing sheet, medium pressure jointing sheet and high pressure jointing sheet.
Low pressure jointing sheet:
XB150, XB200
Used for sealing general plumbing equipment, low pressure water pipes and steam pipes.
Medium pressure jointing sheet:
XB250, XB300, XB350
Used as sealing gaskets for equipment pipe flange joints, the suitable media include water, saturated steam, gas, ammonia, lye and
so on.
High pressure jointing sheet:
XB400, XB450, XB510
Used for equipment pipe flange joint sealing gaskets for high temperature and high pressure water, saturated steam, superheated
steam, gas, inert gas and other media.
The jointing sheet can be divided into four kinds according to application situation: common jointing sheet, oil-resistant jointing sheet, acid-resistant jointing sheet and wire mesh reinforced jointing sheet.
Common jointing sheet:
XB150, XB200, XB250, XB300, XB350, XB400, XB450, XB510
Suitable for general plumbing equipment, low, medium and high pressure water pipes and steam pipe sealing gasket

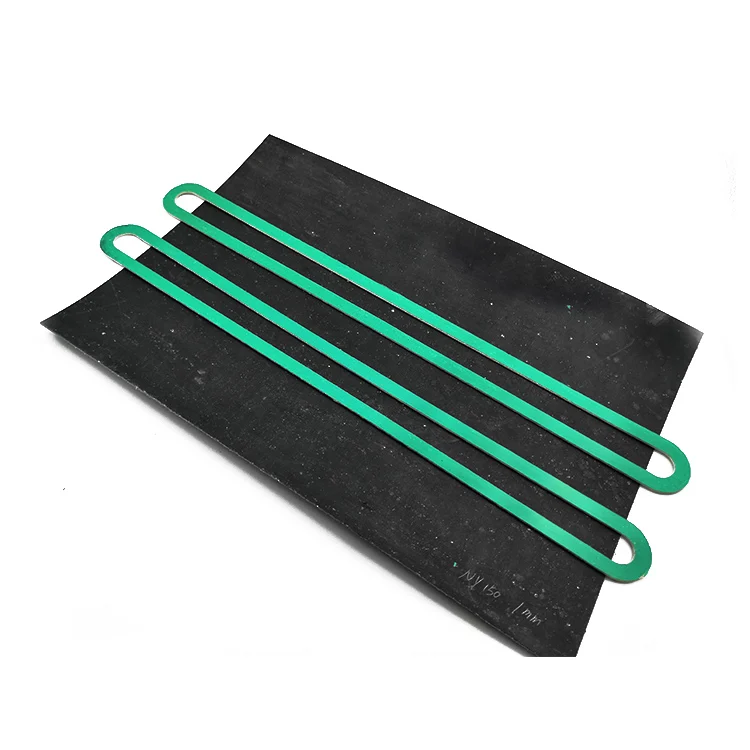

Oil-resistant jointing sheet:
NY150, NY200, NY250, NY300, NY350, NY400, NY450, NY510
Suitable for refining equipment and distillation pipe flange joints, automotive diesel and oil pipeline joints sealing gasket
Acid-resistant jointing sheet:
NS250, NS350, NS450
Used for sealing gasket for acid media
Wire mesh reinforced jointing sheet:
JXB150, JXB250, JXB350, JXB450
Used for sealing gasket for water, steam and other media
Thickness: 0.4 to 12mm
Size: 4500 x 1500mm, 4100 x 1500 mm, 3850 x 1300 mm, 1500 x 2000 mm, 1500 x 1500 mm, 1500 x 1350 mm, 1500 x 1000 mm, 1270 x 1270 mm
Note: other sizes can be customized according to your requirements. In addition, the color can also be customized.
Packing and delivery

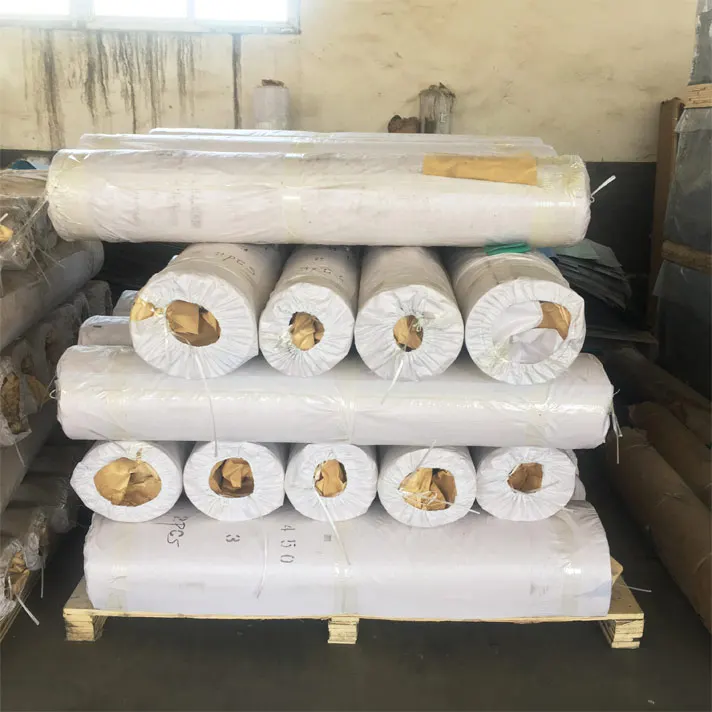

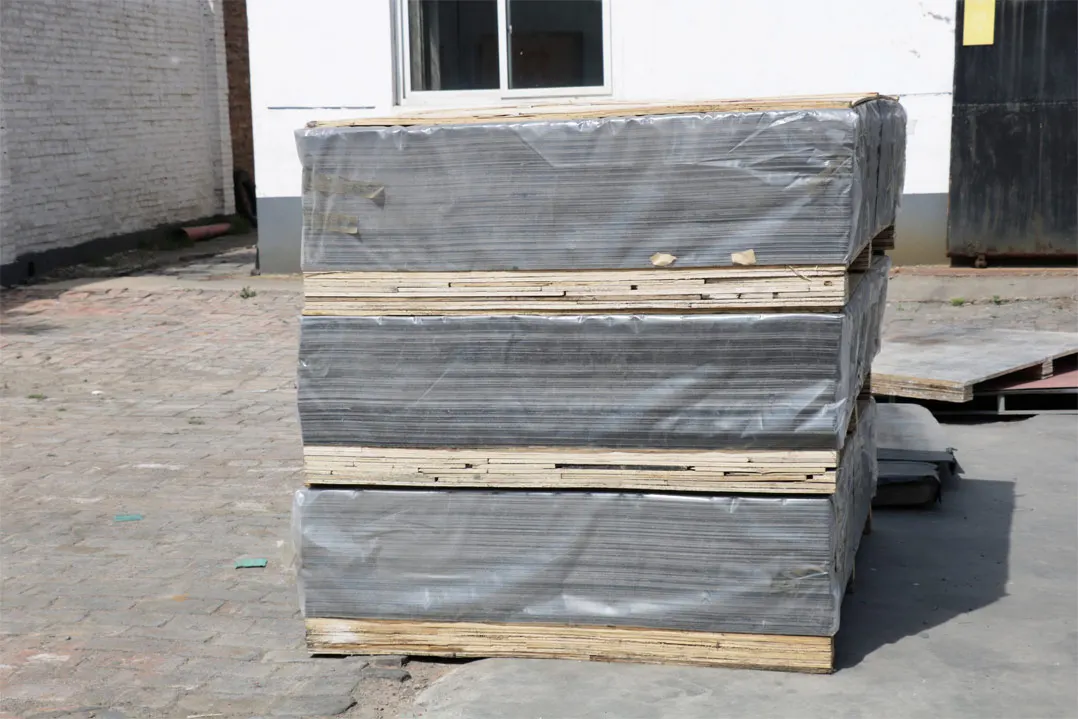

Packing: Rolling, wrapped with kraft paper and then outer woven bag or on wooden pallet.
