Product Description

Reflex glasses is made from tempered borosilicate glass, it can be used with all media at service conditions up to 4MPa and temperature up to 430 °C.

It is used on level gauge of boiler for water position. It is also named: Reflex Gauge Glass, Sight glass, Reflex Glasses, Reflex sight glass, Spares For level Gauge.

Level gauge glass, also known as water level gauge glass or water level gauge glass, is installed on the water level gauge or liquid level gauge to observe or monitor the water level and oil level of pressure vessels.

The Type

Size	Type A			Weight
	L	B	S	g/piece
A1	115	30	17	118
A2	140	30	17	146
A3	165	30	17	176
A4	190	30	17	200
A5	220	30	17	237
A6	250	30	17	265
A7	280	30	17	303
A8	320	30	17	334
A9	340	30	17	359
A10	370	30	17	391

Size	Type B			Weight
	L	B	S	g/piece
B0	95	34	17	110
B1	115	34	17	132
B2	140	34	17	162
B3	165	34	17	195
B4	190	34	17	228
B5	220	34	17	264
B6	250	34	17	301
B7	280	34	17	338
B8	320	34	17	387
B9	340	34	17	410
B10	370	34	17	461

Product Image

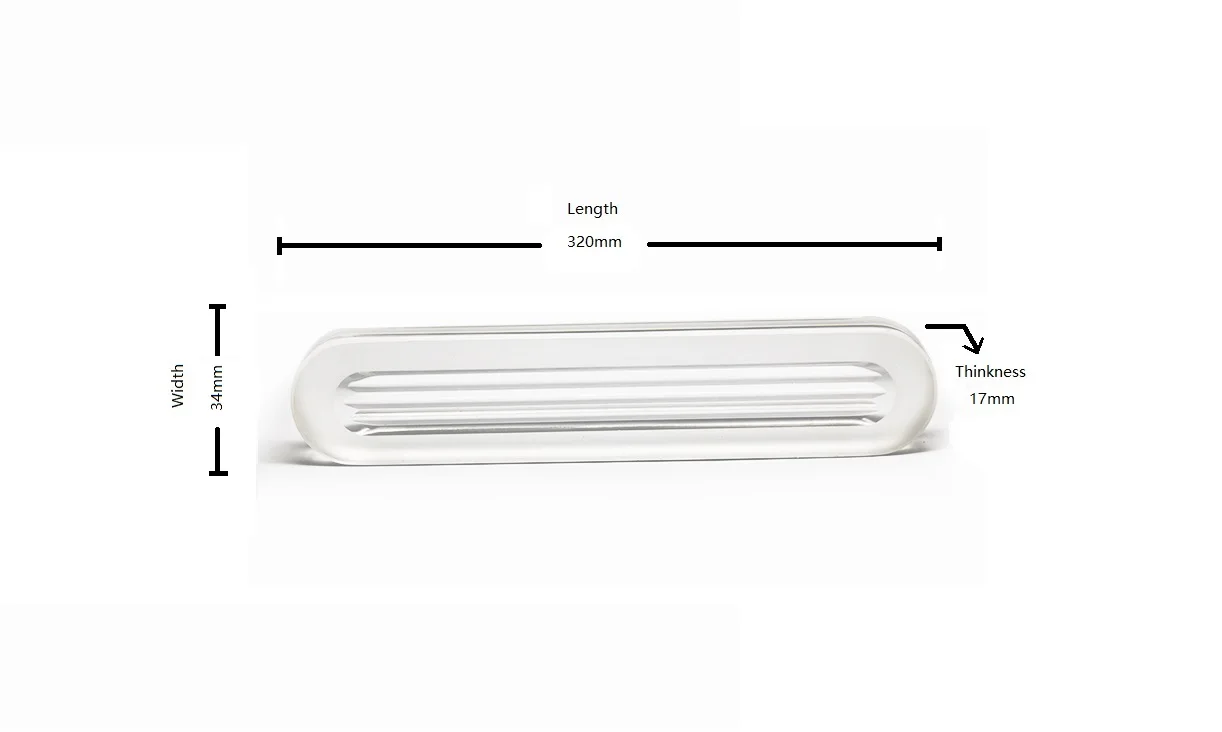

The Size of  Reflex level gauge glass B7



  Gaskets

 we also have gaskets:

 1.non asbestos gaskets

 2.Graphite gaskets

 3.Mica gaskets



Used for liquid water level indicator

Packaging

 packing:Carton packing, 50/carton, 200/wooden box

 shiping: transport by sea, by car, by air.
