6*6mm AH Braided Packing Kevlar Aramid Fiber Gland Packing PTFE Aramid Packing For Pumps

6*6mm AH Braided Packing Kevlar Aramid Fiber Gland Packing PTFE Aramid Packing For Pumps

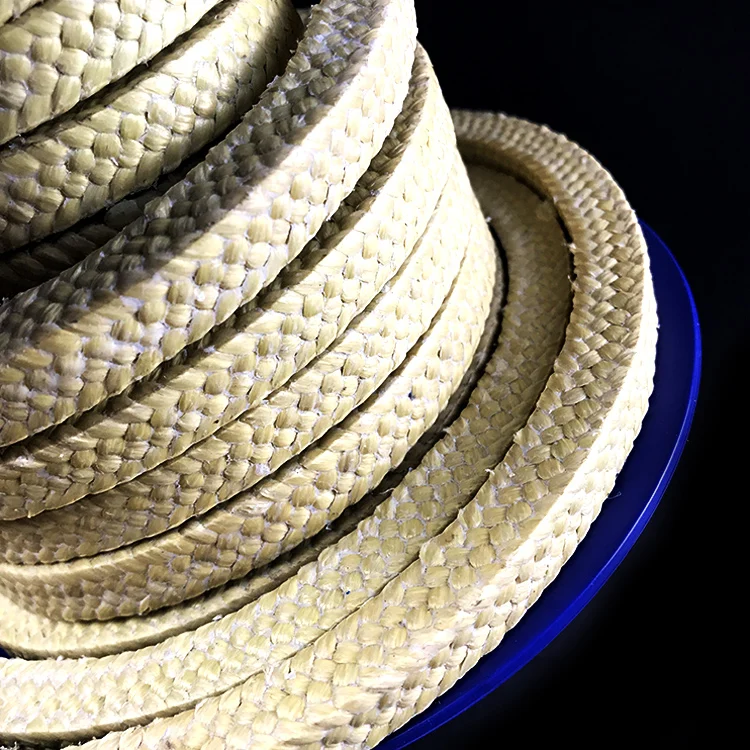

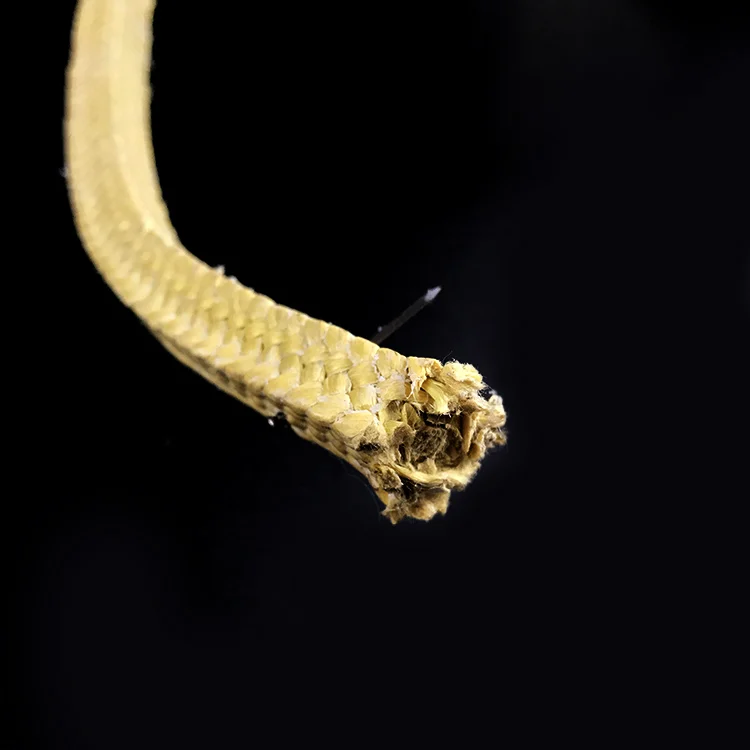

Kevlar Packing (Aramid Packing)
Aramid Packing, it is Braided from high quality Dupont Aramid/Kevlar fiber with PTFE Impregnation and lubricant additive. Extremely hard wearing. It shows good chemical resistance, high elasticity and very low cold flow. It is wear resistant but may damage the shaft if not used properly. A minimum shaft hardness of 60HRC is therefore recommended. Compared with other kinds of packing, it can resist more severe media and higher pressure. The packing is also lubricated with a silicone-based compound for quick and easy break-in.
Max temperature
-100~+280°C
Max pressure
25Bar 100Bar 200Bar
Density
1.4g/cm3
Size
From 6 x 6 mm to 50 x 50mm
PH range
2~12
Packaging
In coils of 5 or 10 kg, other weight on request; as precut length

White PTFE Packing with Aramid Corners

White PTFE Packing with Aramid Corners, it is Multi-yarn packing, the corners of packing are made of aramid yarns impregnated with PTFE, while the friction faces are made of pure PTFE yarns. This structure enhances the lubrication ability of aramid fiber and improves the strength of the pure PTFE.
Style
P260
Pressure
Rotating
20 bar
Reciprocating
100 bar
Static
180 bar
Shaft speed
12 m/s
Temperature
－100~+280°C
H range
2~12
Details Images
Packing and Delivery
Packaging: In coils of 5 or 10 kg, other weight on request; as precut length.
