A9/B9 Klinger Reflex Gauge Glass High Borosilicate 3.3 Level Gauge Glass


Reflex Sight Glass High Borosilicate 3.3 Level Gauge Glass

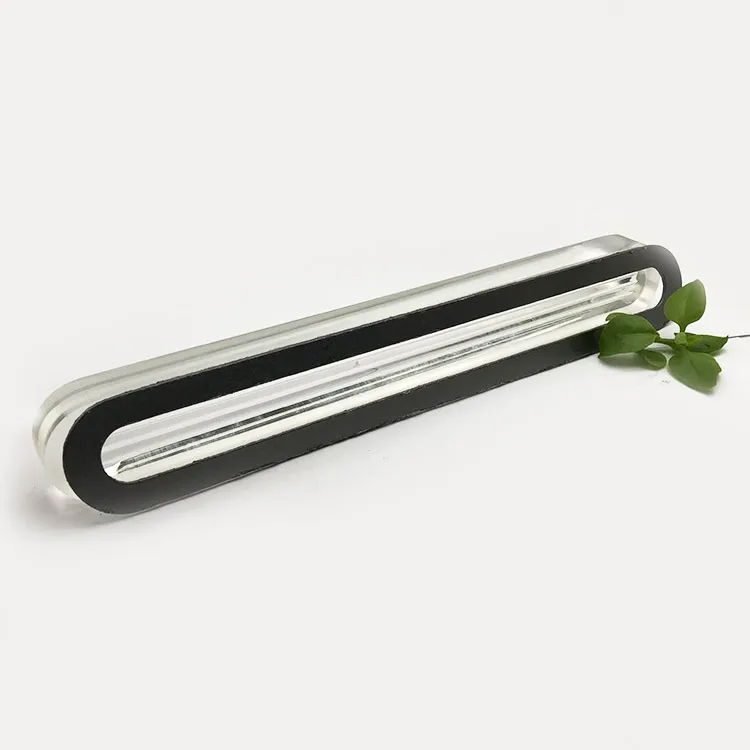

Reflex level gauge glass is made from High Borosilicate,

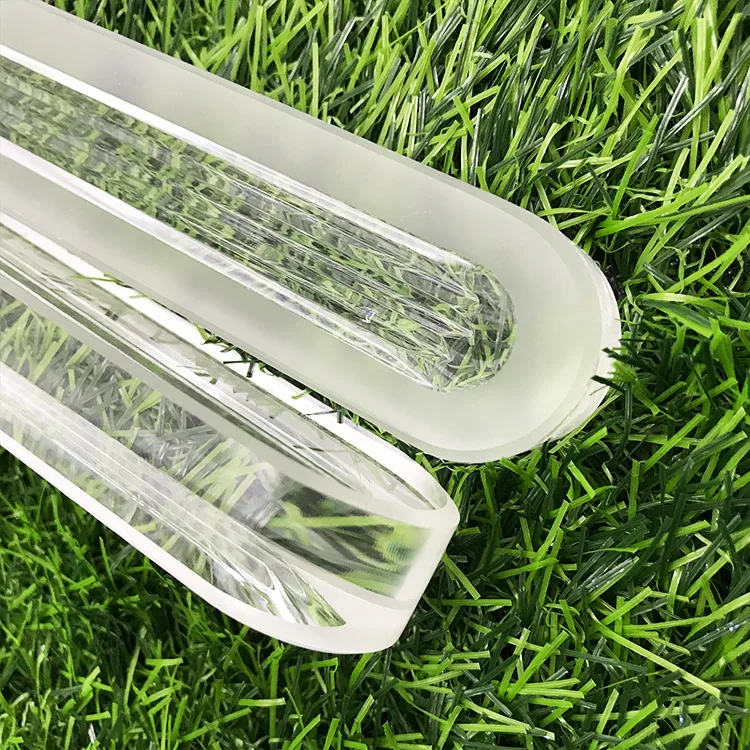

They are used in level gauge in boiler for water position. Reflex type one side facing the medium chamber is provided with molded grooves set at 90 degree angles.
The molding process increases the resistance of the glass grooves to wear; the skin which the glass attains during molding gives it maximum smoothness and hardness.
This makes it extremely resistant to the attack of boiler water

Specifications

* Material: borosilicate glass, aluminosilicate glass.
* Max pressure: 4Mpa.
* Max temperature: 430 °C.
* Grooves: one, two, three or four grooves.
* Using life: more than 20 years.
* Standard: The products is strictly according to the standard of DIN7081.
* Accessories: Gaskets and mica sheet can also be provided together.
Details Images
size
type A
type B
I
115
30
17
115
34
17
II
140
30
17
140
34
17
III
165
30
17
165
34
17
IV
190
30
17
190
34
17
V
220
30
17
220
34
17
VI
250
30
17
250
34
17
VII
280
30
17
280
34
17
VIII
320
30
17
320
34
17
The other size is optional or according to the requirements of customers.

Service

Provide test reports and free samples
Sufficient inventory and efficient transportation
Safe packaging service
Rigorous factory inspection
Undertake defective return
Product packaging
White paper box for each piece, 50 pieces in one carton, or as customer`s requirements.
