Aohong China graphite composite sheet carbon sheet cylinder head gasket sheet

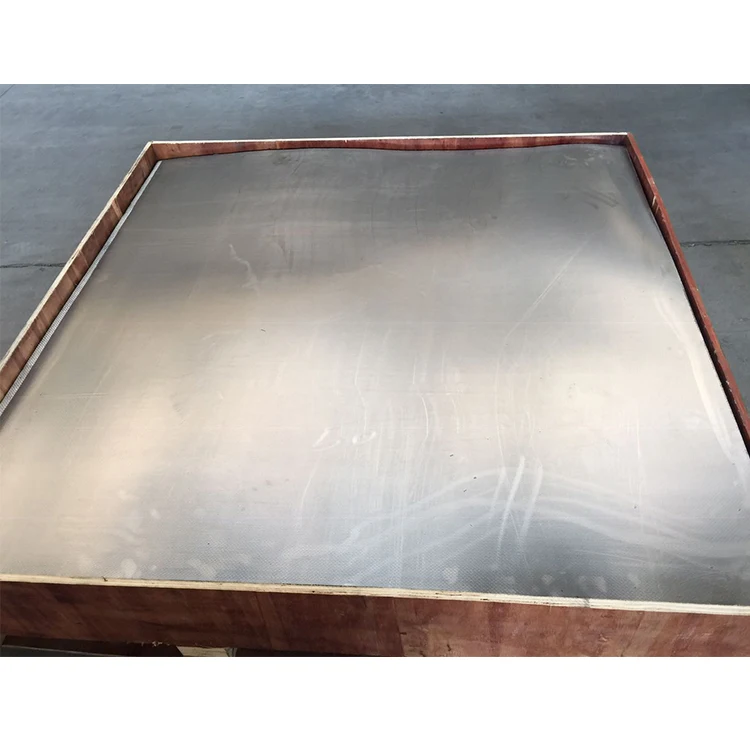

China graphite composite sheet
Aohong graphite composite sheet
Technical Data:
Density: 1.30~1.50g/cm3
Appled Temp: -200 ~ 2500 Deg.C ( In Non Oxidizing Atmosphere)
Threshold Temp.For Oxidation: 500 Deg.C ( a temp at which weight reduced 1% during 24 hrs in air)
Tensile Strength: > 70 kgf/cm2
Compressive Strength: > 800 kgf/cm2
Carbon Content: > 98%
Ash Content: < 1.0%
Compressibility: >15%
Recovery: >35%
Standard Sheet Size: 400mm x 1000mm, 500mm x 1000mm, 800mm x 1000mm, 1000mm x 1000mm. 1000x1500mm ,1500x1500mm
Thickness: 1.0mm~3.0mm.
Appled Temp: -200 ~ 2500 Deg.C ( In Non Oxidizing Atmosphere)
Threshold Temp.For Oxidation: 500 Deg.C ( a temp at which weight reduced 1% during 24 hrs in air)
Tensile Strength: > 70 kgf/cm2
Compressive Strength: > 800 kgf/cm2
Carbon Content: > 98%
Ash Content: < 1.0%
Compressibility: >15%
Recovery: >35%
Standard Sheet Size: 400mm x 1000mm, 500mm x 1000mm, 800mm x 1000mm, 1000mm x 1000mm. 1000x1500mm ,1500x1500mm
Thickness: 1.0mm~3.0mm.

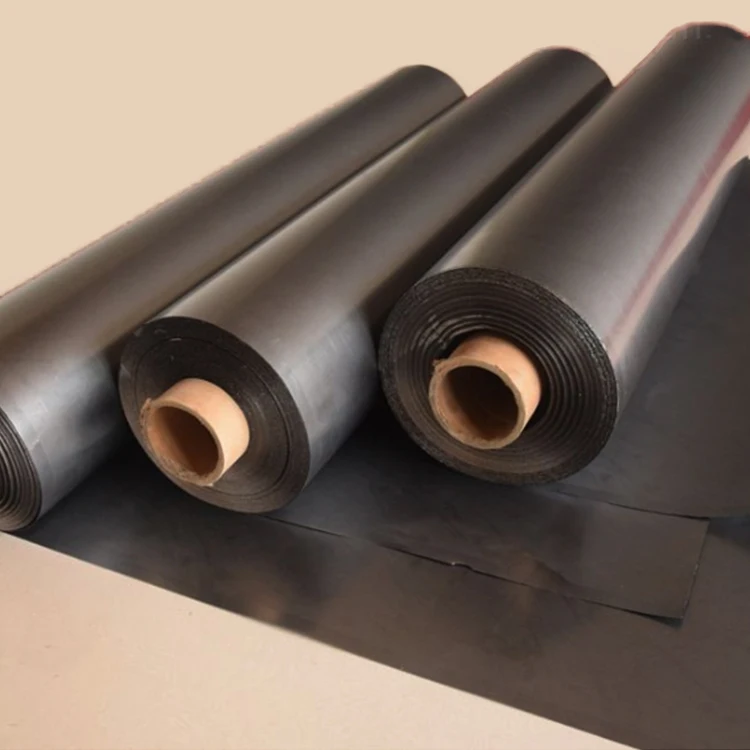

Aohong Graphite paper
Avaliale width: 500mm,1000mm
Length: 80 meters per roll.
Application:
1. Made for packing rings and various kinds of gaskets.
2. Cut into strip for filler of spiral wound gasket.
3. Used widely in chemical, automotive and pump,valve industries. As a superior replacement for asbestos, new more applications are Being identified daily.
1. Made for packing rings and various kinds of gaskets.
2. Cut into strip for filler of spiral wound gasket.
3. Used widely in chemical, automotive and pump,valve industries. As a superior replacement for asbestos, new more applications are Being identified daily.
Aohong Flexible Graphite Tape
1) Flexible graphite tape is cutted by flexible graphite rolls
2) Graphite tape filler is used for spiral wound gasket,In-situ pump and valve gland packing, Manufacture of graphite packing rings
3) Facing material for camprofile type gaskets,Filler for metal jacketed type gaskets.
Also manufacture Crinkled Graphite Tape.
5) Size:
Length for one roll:50M;80M;100M,120M
Width:4.0MM;5.0MM;5.4MM,5.5MM;5.7MM ,6.0MM8.0MM,12MM,14MM
Thickness:0.4MM;0.5MM;0.7MM,0.8MM
2) Graphite tape filler is used for spiral wound gasket,In-situ pump and valve gland packing, Manufacture of graphite packing rings
3) Facing material for camprofile type gaskets,Filler for metal jacketed type gaskets.
Also manufacture Crinkled Graphite Tape.
5) Size:
Length for one roll:50M;80M;100M,120M
Width:4.0MM;5.0MM;5.4MM,5.5MM;5.7MM ,6.0MM8.0MM,12MM,14MM
Thickness:0.4MM;0.5MM;0.7MM,0.8MM

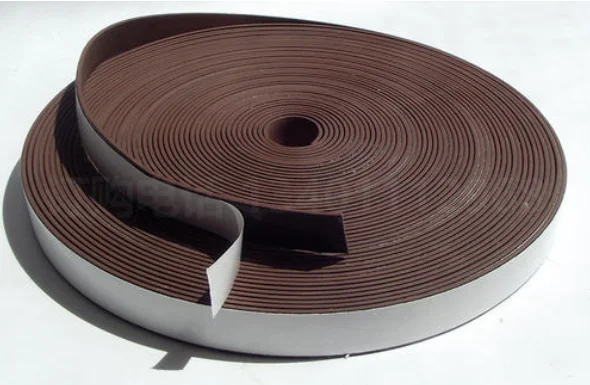

Aohong adhensive graphite tape
1.Width:2.5~1000mm
2.Thickness :0.1~0.8mm
3.Length:80 meter per roll
4.Carbon Content %: 96~99.9%
5.Tensile Strength 45 Mpa .
6.Density； 0.7~1.3g/cm3
7.Work Temperature :-200~650 ℃.
Packing and Delivery
1.The graphite strip PE packing then in wooden case.
2. The graphite composite sheet in wooden case.
3. The graphite paper in carton then in pallets.
company profile
HengShui Aohong Technology Co.,Ltd
We can provide all kinds graphite products : Graphite composite sheet ,pure graphite sheet ,graphite paper ,graphite tape and the graphite packing etc.
