Aohong Hand Tool Parts Logo quiz by Bubble Spirit Level

Hand Tool Parts Logo quiz by  Bubble Spirit Level

We have sizes:

Coding	Size	Color		Coding	Size	Color
YY-0885	8*8.5mm	Green		YY-2510	25*10mm	Green
YY-1006	10*6mm	Green		YY-3011	30*11mm	Green
YY-11806	11.8*6mm	Green		YY-3016	30*16mm	Green
YY-1206	12*6mm	White		YY-3617	36*17mm	Green
YY-1207	12*7mm	White		YY-3207	32*7mm	White
YY-1408A	14*8mm	Green		YY-4311	43*11mm	White
YY-1408B	14*8mm	Green		YY-5009A	50*9mm	Black
YY-143082	14.3*8.2mm	Green		YY-5009B	50*9mm	red
YY-1506	15*6mm	Green		YY-5017A	50*17mm	red
YY-1508	15*8mm	White		YY-5017B	50*17mm	Black
YY-1809	18*9mm	Green		YY-5017C	50*17mm	Red
YY-1910A	19*10mm	Green		YY-5017D	50*17mm	Black
YY-1910B	19*10mm	Green

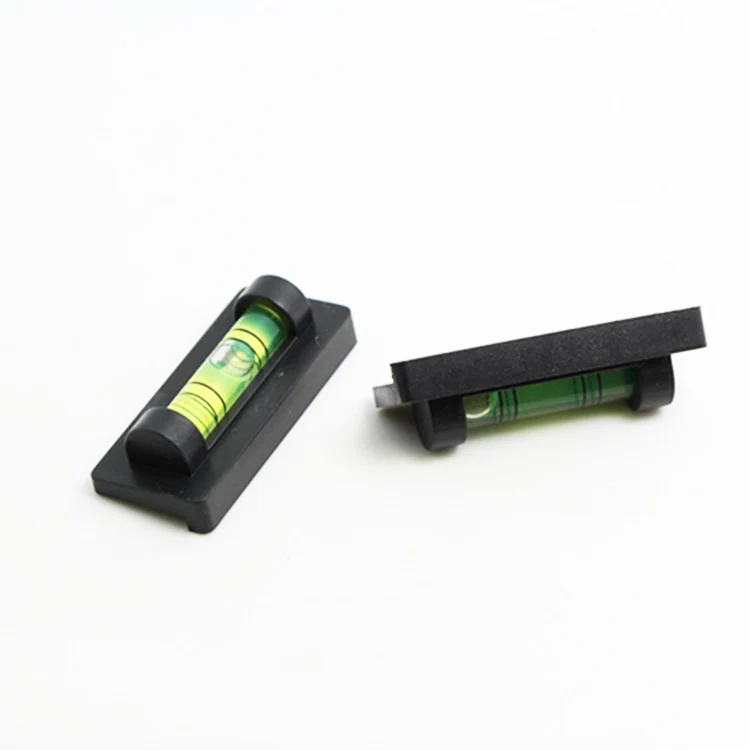

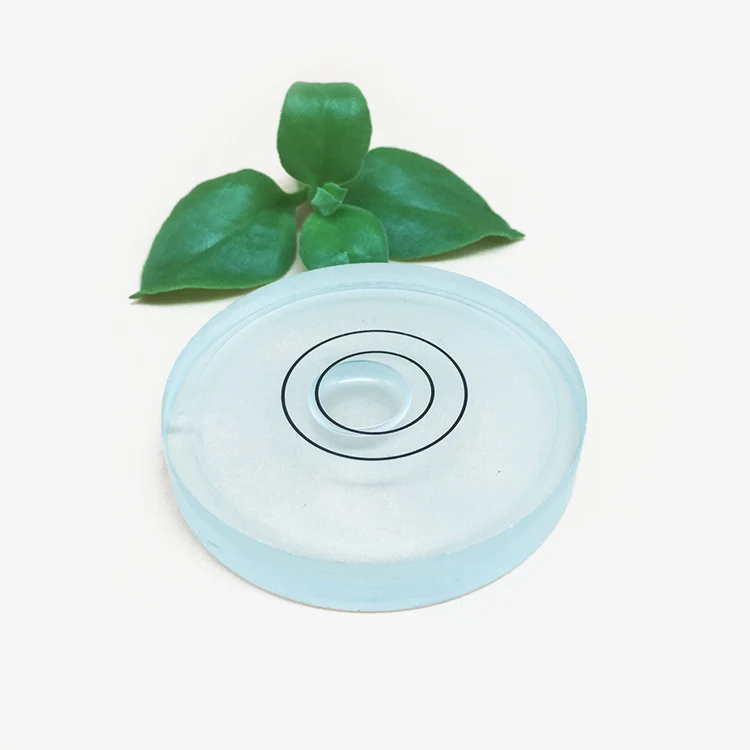

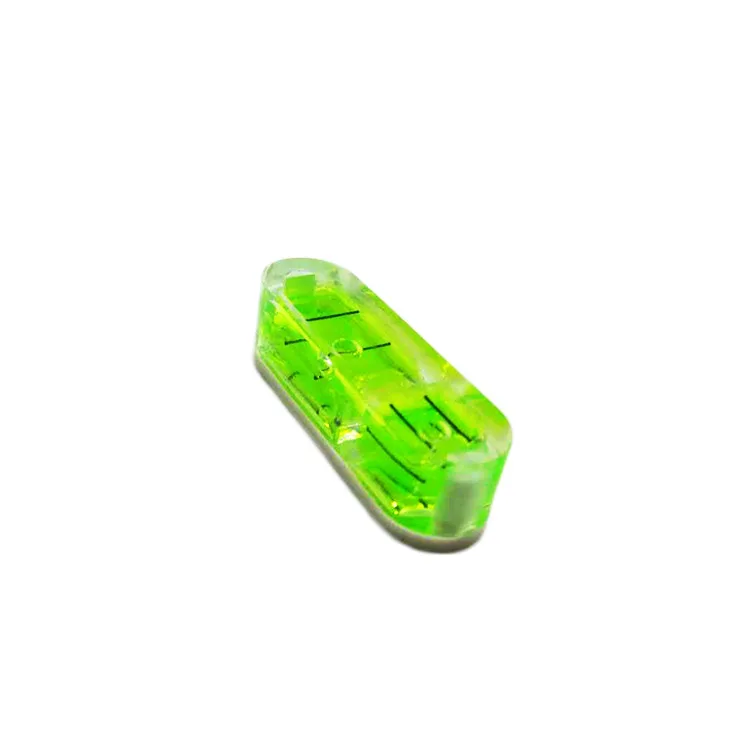

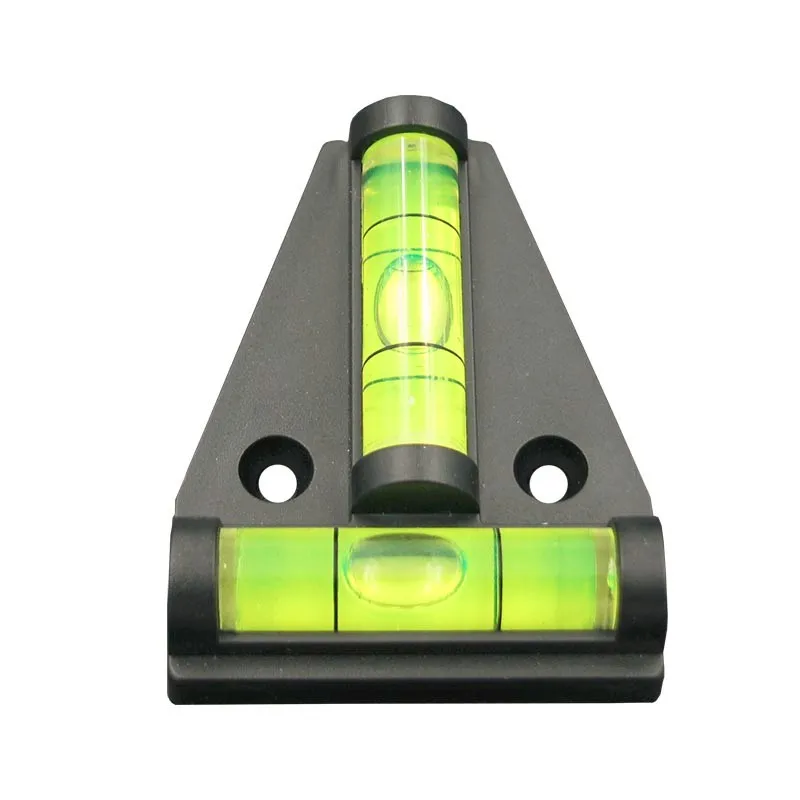

 Detailed Images



How to use

1.To properly use a spirit level, it should be positioned in the centre, on a firm horizontal or vertical surface. If the plane to be checked is not even, place a straightedge on top and the spirit level on top of the straightedge.

2.The bubble should sit between the graduation marks.
Where the bubble sits over or out of the graduation marks, adjust the spirit level to the left or right.

3.When the left side is too high the bubble will sit on the right side of the graduation marks and vice-versa for the opposite side.

4.Using this as a guide, you can now make the necessary adjustment to create a perfectly level project.

5.When you need to check vertical levels, place the back edge of the spirit level against a straightedge, which is then positioned against the vertical plane to be checked.

6.If the bubble is between the graduations, the plane is level. Where the bubble lies outside the graduations, move the straightedge until the bubble is centrally placed.

7.This will allow you to determine any unevenness on the vertical plane.

Certification

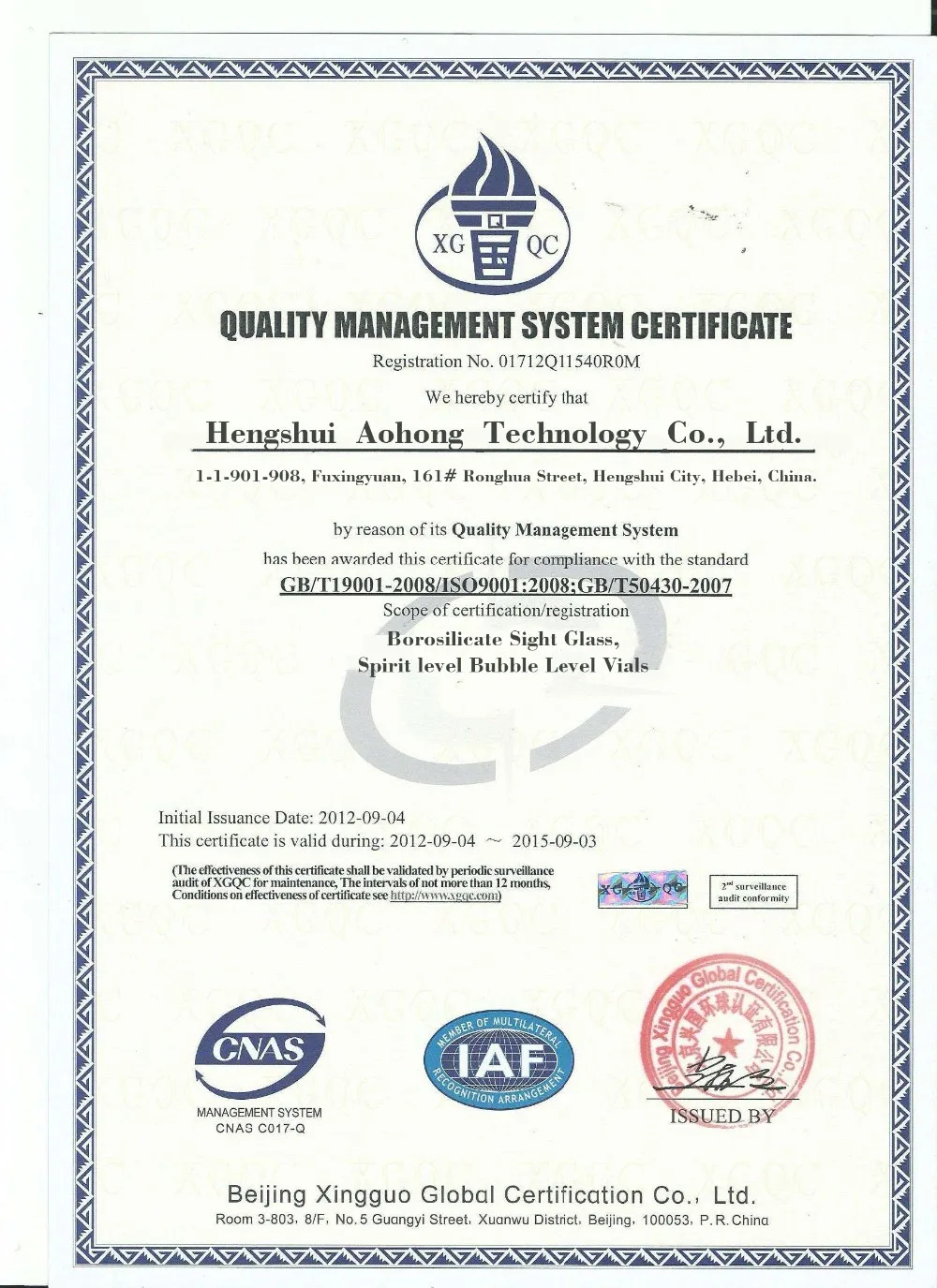

Quality management system certificate

 Packing &Delivery

Packing:  in plastic bag, then in carton

Delivery: We will send out the package in 1-15 Business Days for your orders.

If you have not received your shipment within 30 days from payment, please contact us in time. We will track the shipment and get back to you as soon as possible with a reply. Your satisfaction is our greatest reward and power!

Note: We only send to the address in the order. Buyer will be responsible for any taxes, customs and any other charges generated in the buyer's country!
