BII 140x34x17 Toughened Reflex Water Glass Plate Level Gauge glass

BII 140x34x17 Toughened Reflex Water Glass Plate Level Gauge glass
If samples needed, please contact with us.
SIZE
Type A
Weight
L
B
S
g/pc
0
--
--
--
--
I
115
30
17
118
II
140
30
17
146
III
165
30
17
176
IV
190
30
17
200
V
220
30
17
237
VI
250
30
17
265
VII
280
30
17
303
VIII
320
30
17
334
IX
340
30
17
359
X
370
30
17
391
SIZE
Type B
Weight
L
B
S
g/pc
0
95
34
17
110
I
115
34
17
132
II
140
34
17
165
III
165
34
17
195
IV
190
34
17
228
V
220
34
17
264
VI
250
34
17
301
VII
280
34
17
338
VIII
320
34
17
387
IX
340
34
17
410
X
370
34
17
461

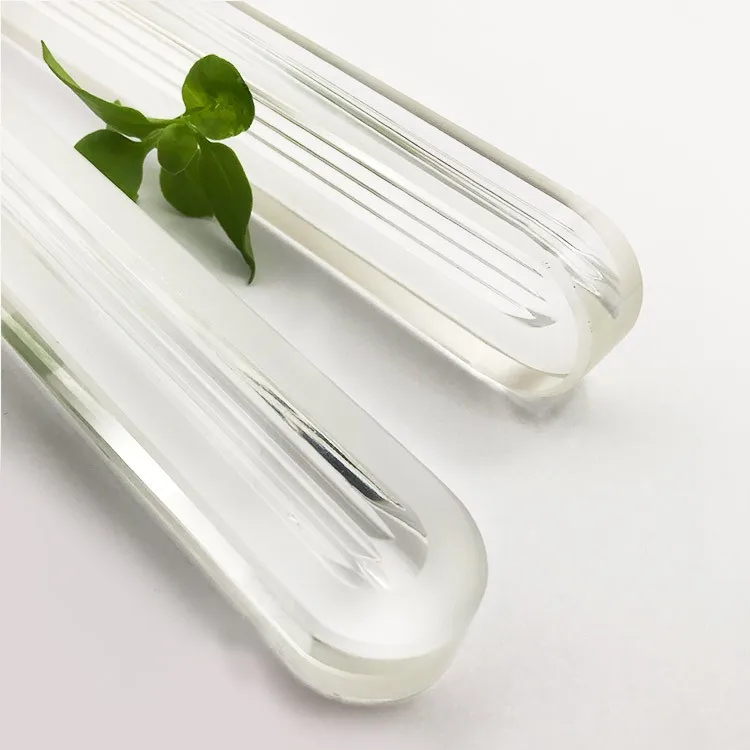

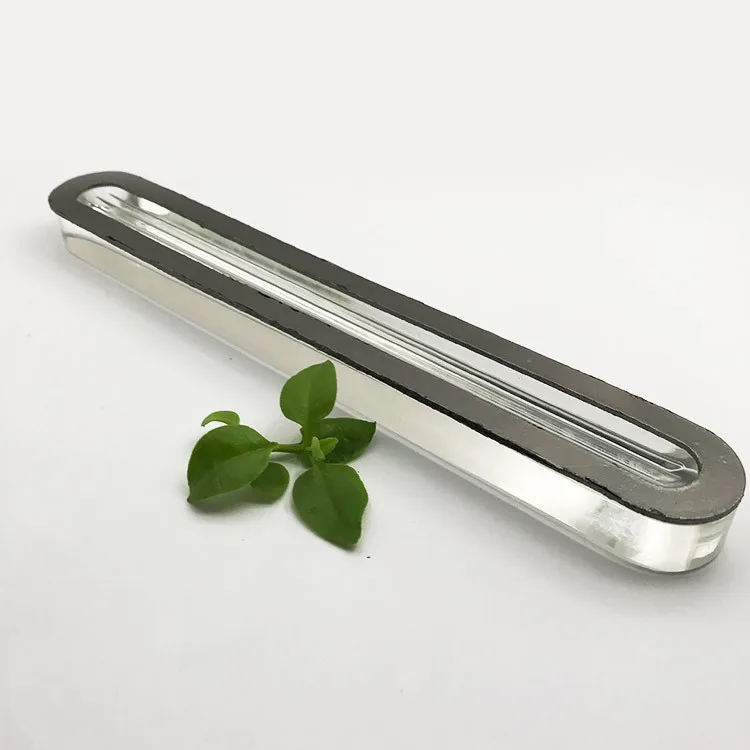

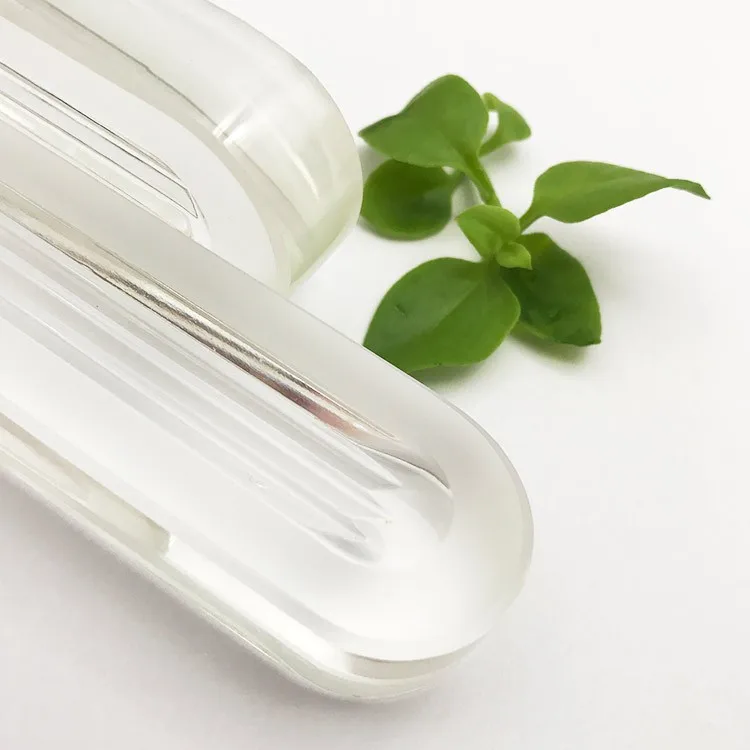

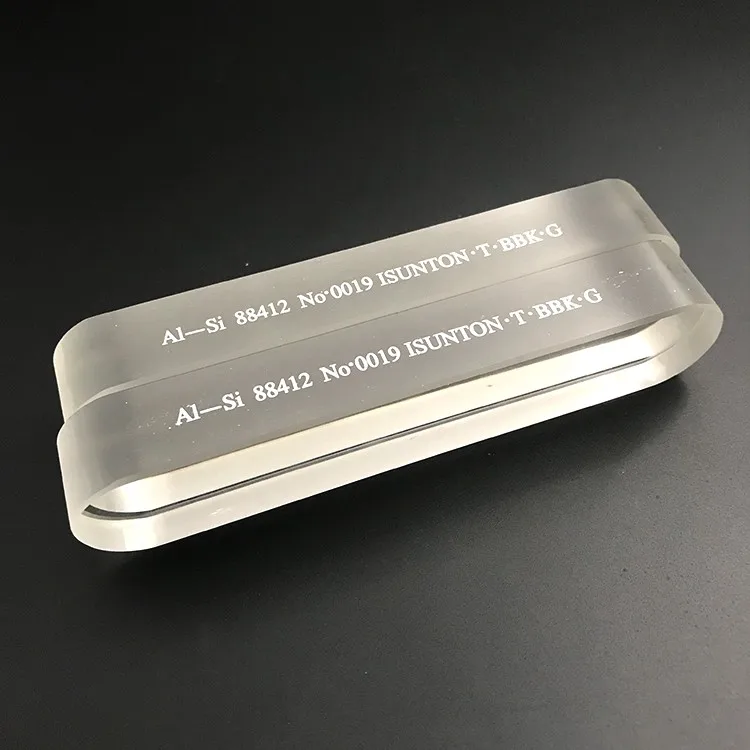

Detailed Image
Our Factory
Packing & Delivery
White paper box for each piece, 50 pieces in one carton, or as customer`s requirements
