Flanged Sight Glass Round Shape Flat Glass

 Flanged Sight Glass Round Shape Flat Glass

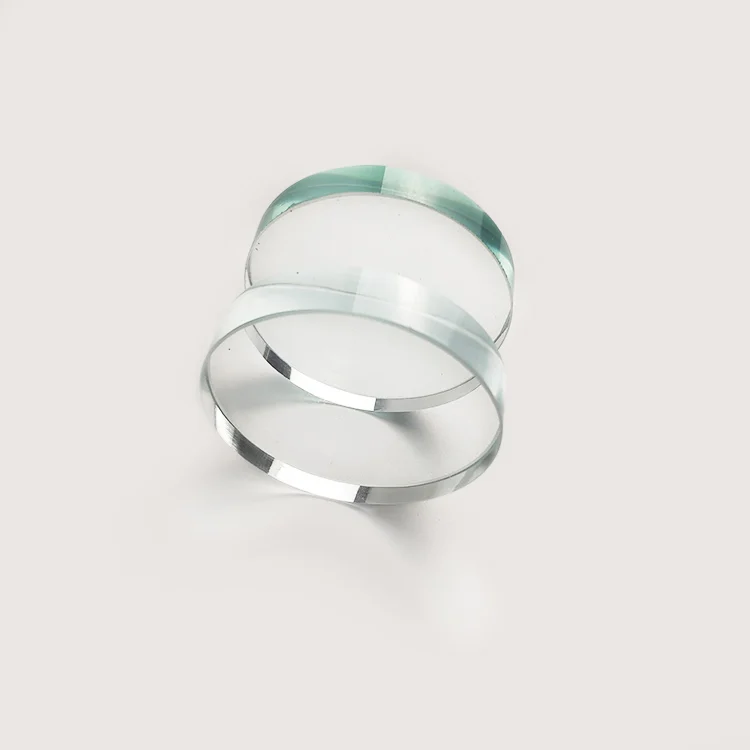

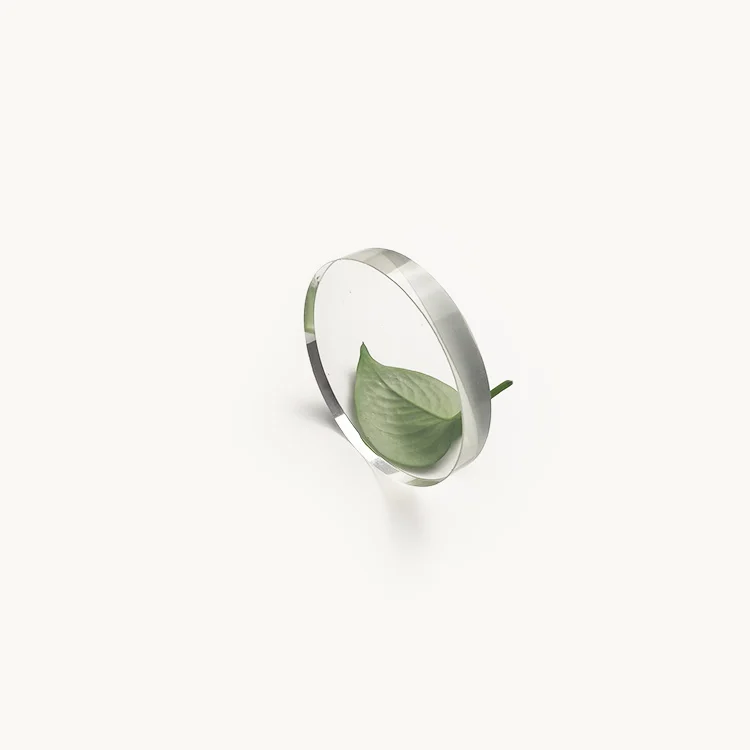

Round Glass
The borosilicate round glass is produced according to the international standard DIN7080.
Operating temperature is 280 degrees Celsius.

In a toughened form, temperatures up to 315 degrees Celsius are possible whilst annealed glass may be used up 400  degrees Celsius continuously with a short term maximum of 500 degrees Celsius.
In addition to the standard DIN size, other sizes can be customized.
Details Images

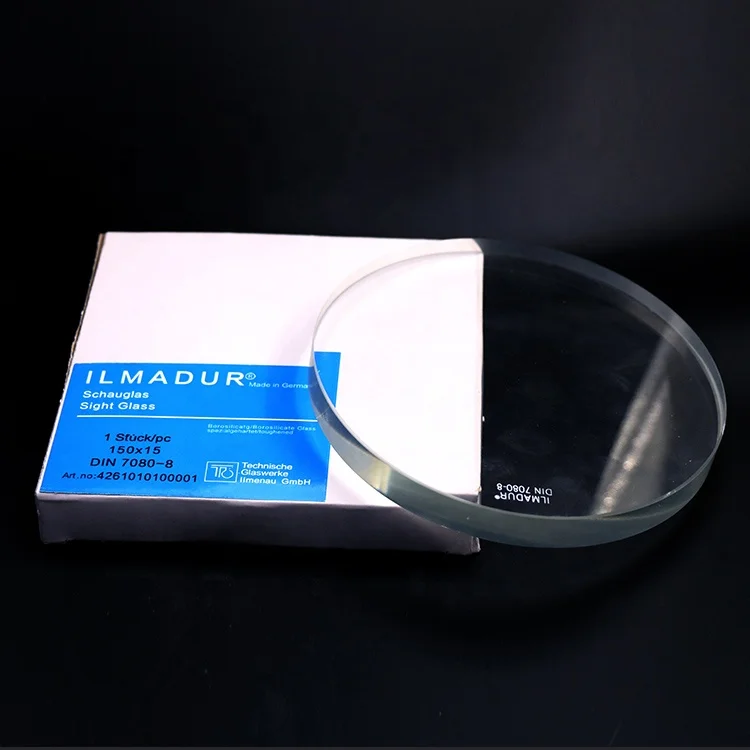

Product packaging
White paper box for each piece, 50 pieces in one carton, or as customer`s requirements.
