High borosilicate heat resistant round sight glass

High borosilicate heat resistant round sight glass

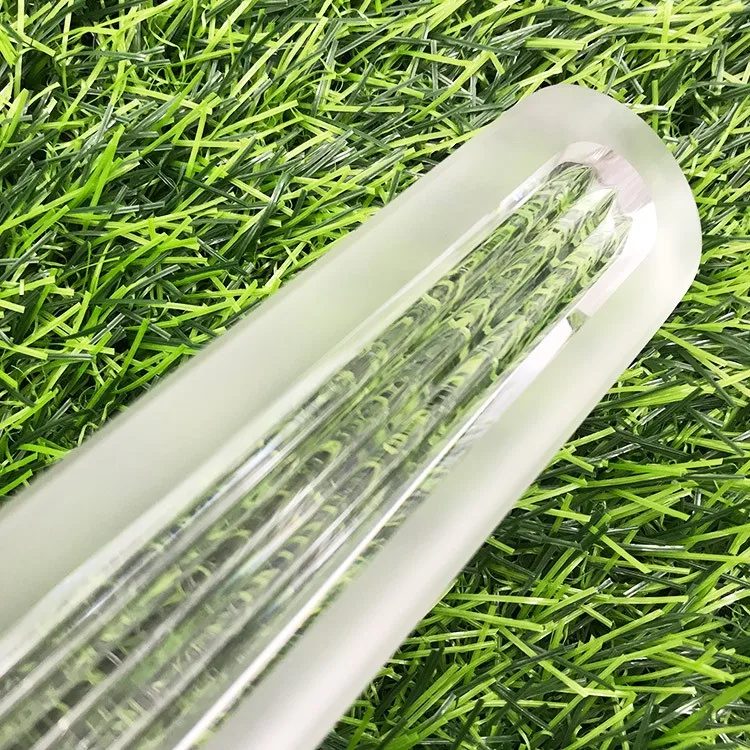

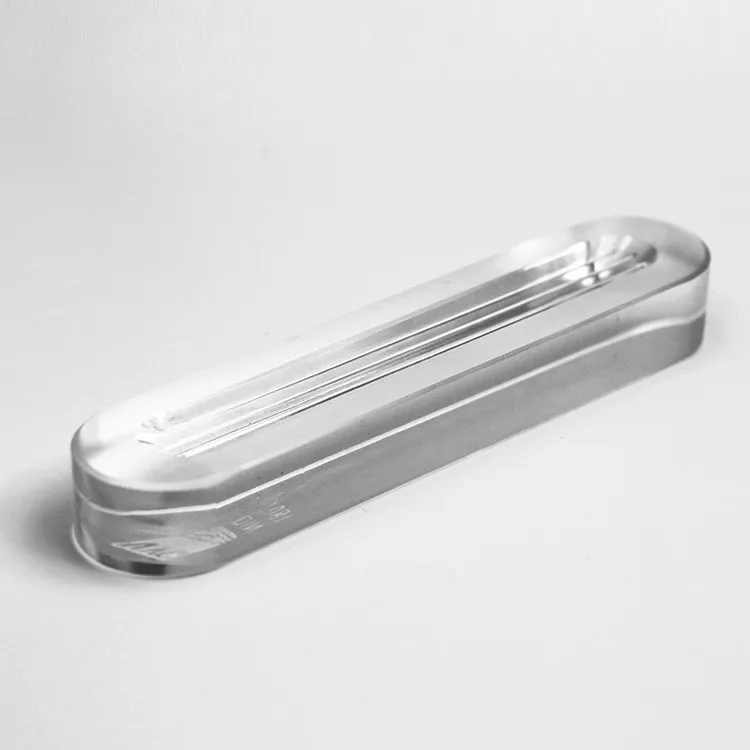

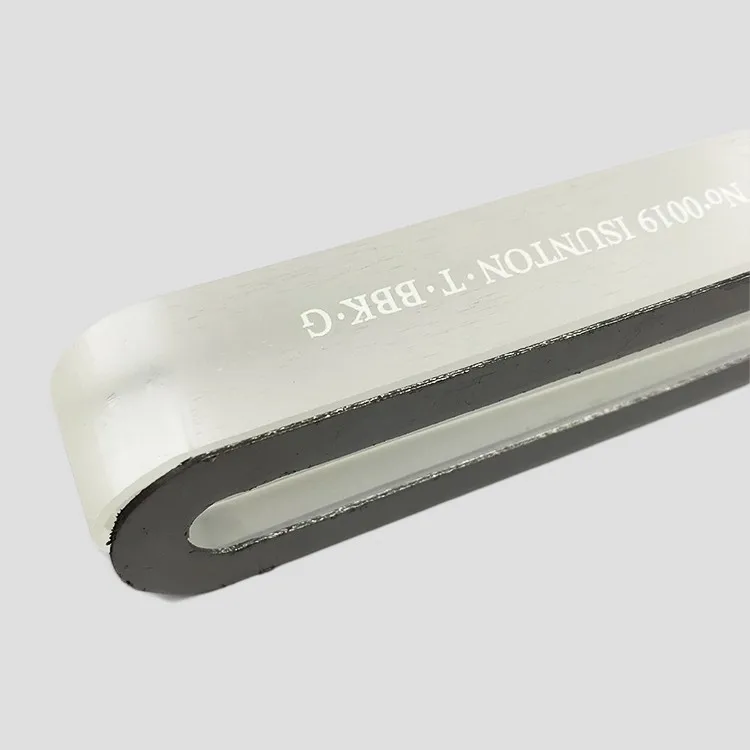

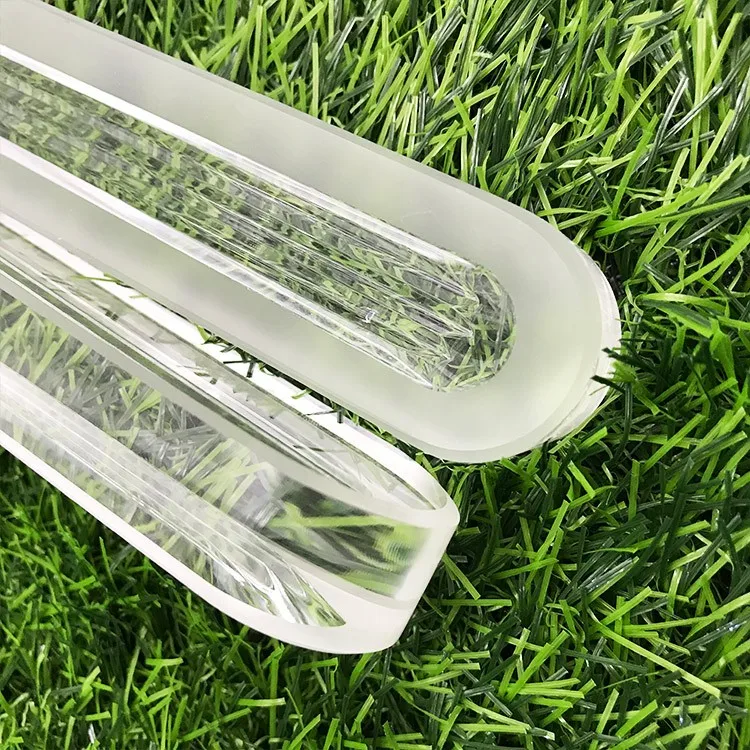

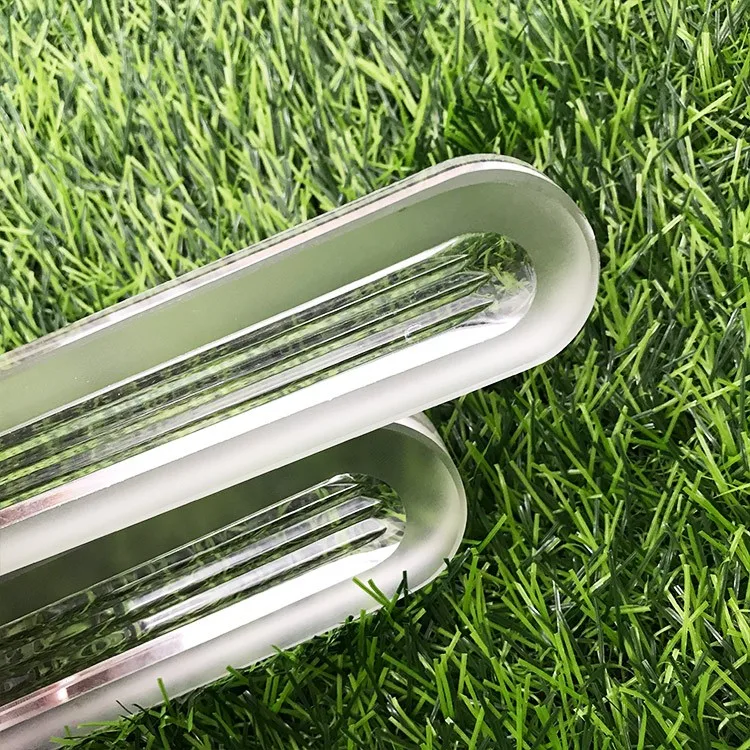

Reflex glasses is made from tempered borosilicate glass, it can be used with all media at service conditions up to 4MPa and temperature up to 430 °C.

The side facing the medium chamber is provided with molded grooves set at 90°angles. The moulding process increases the resistance of the glass grooves to wear; the skin which the glass attains during moulding gives it maximum smoothness and hardness.This makes it extremely resistant to the attack of boiler water.
It is used on level gauge of boiler for water position. It is also named: Reflex Gauge Glass, Sight glass, Reflex Glasses, Reflex sight glass, Spares For level Gauge.

SIZE
Type A
Weight
L
B
S
g/pc
0
--
--
--
--
I
115
30
17
118
II
140
30
17
146
III
165
30
17
176
IV
190
30
17
200
V
220
30
17
237
VI
250
30
17
265
VII
280
30
17
303
VIII
320
30
17
334
IX
340
30
17
359
X
370
30
17
391
SIZE
Type B
Weight
L
B
S
g/pc
0
95
34
17
110
I
115
34
17
132
II
140
34
17
165
III
165
34
17
195
IV
190
34
17
228
V
220
34
17
264
VI
250
34
17
301
VII
280
34
17
338
VIII
320
34
17
387
IX
340
34
17
410
X
370
34
17
461
Detailed Images

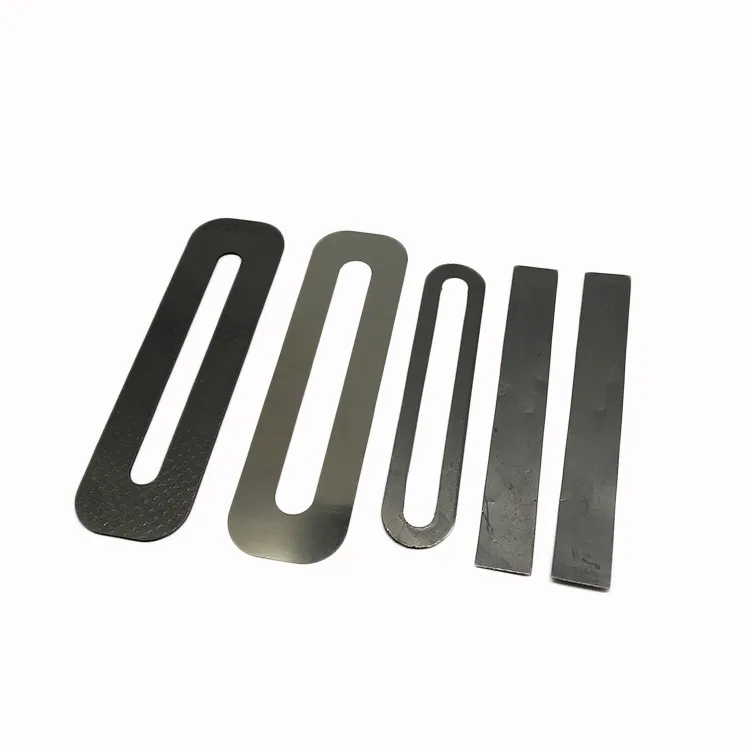

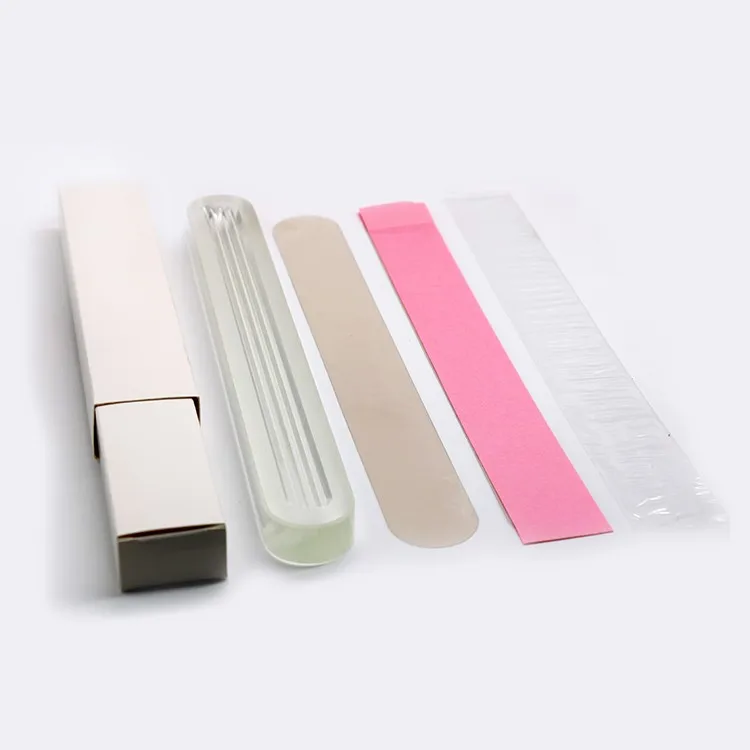

Non asbestos gasket

Thickness: 1mm, 1.5mm, 2mm

Graphite gasket

Thickness:1mm,1.5mm,

Mica sheild

Thickness: 0.1mm  0.15mm  0.2mm
Related Products
Packing & Delivery

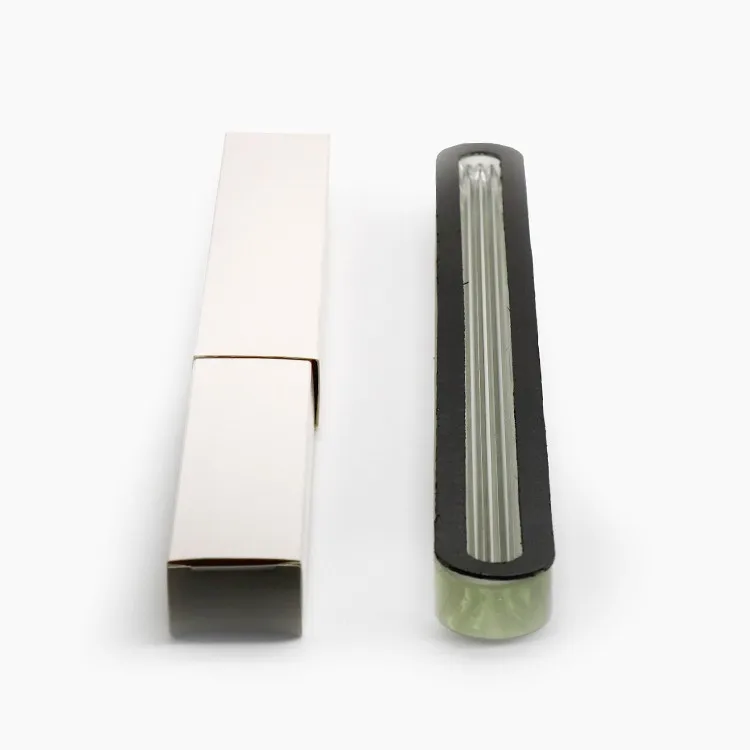

White paper box for each piece, 50 pieces in one carton, or as customer`s requirements

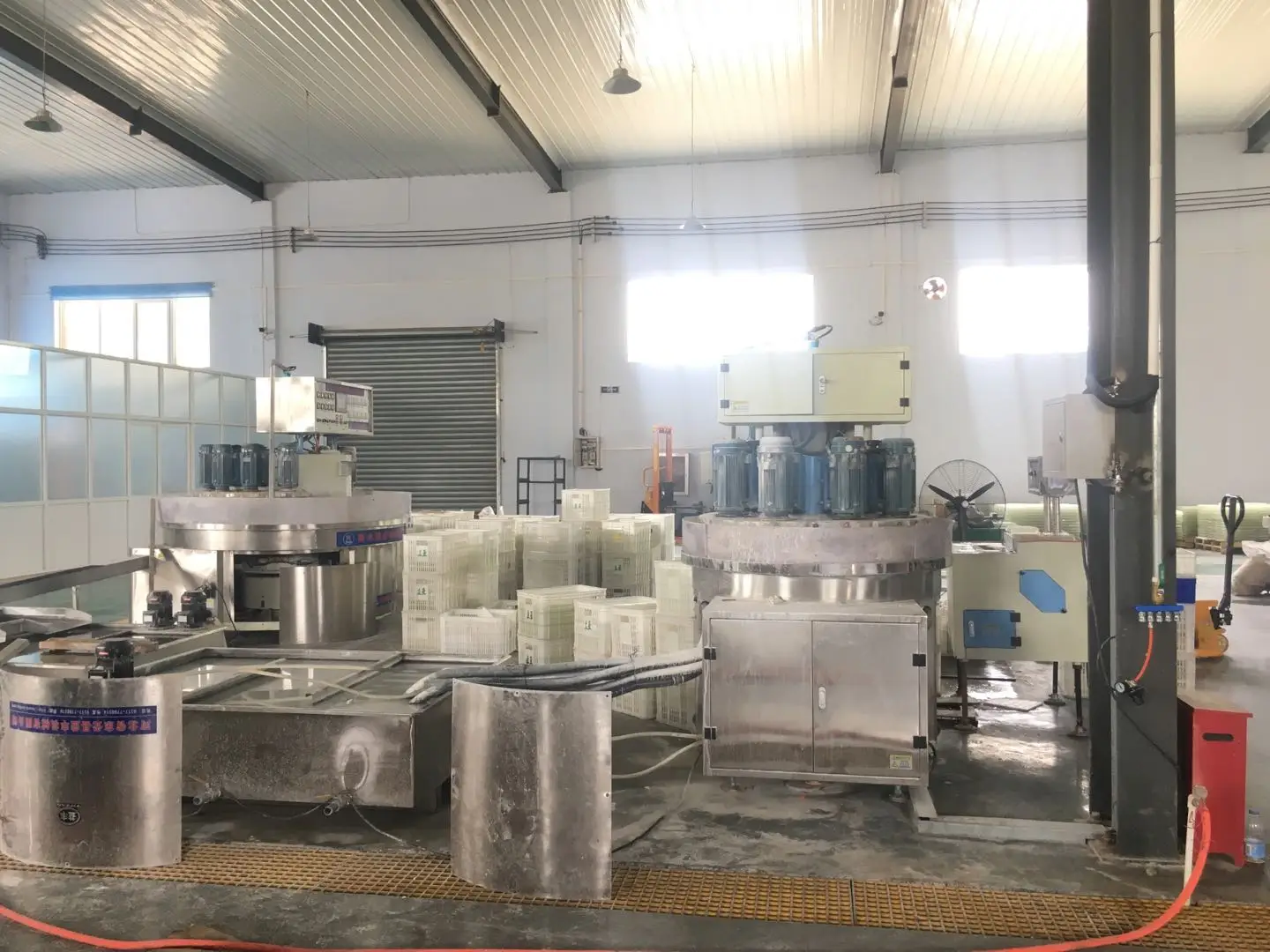

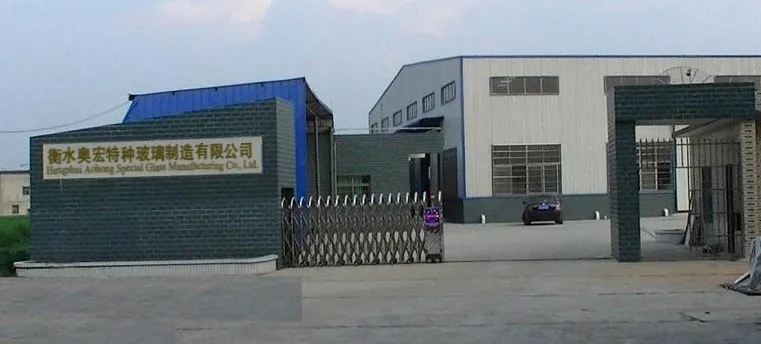

Our Factory
Our Company
Hengshui Aohong Technology Co., Ltd. is an industrial company with an integration of industrial production and trade.

Our company specializes in producing sealings gasket sheets,thermal insulation cloths, rope, tape, level gauge glasses (plane, reflex),etc.

Welcome your inquiry and visit our factory !
FAQ
Q: Are you factory, or only a trading company?
A: Factory, and our factory is located in Wangtong town, Jing county, Hengshui, Hebei

Q:Could I get some samples, and how?
A: No problem, we provide free samples, and it is only needed for you to pay for the shipping charge, your courier account is also ok(such as DHL).

Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However we can discuss it.

Q: What's the payment terms?
A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is open for discussion.
