Manufacture High temperature round fused quartz sight glass

China oil level sight glass round glass

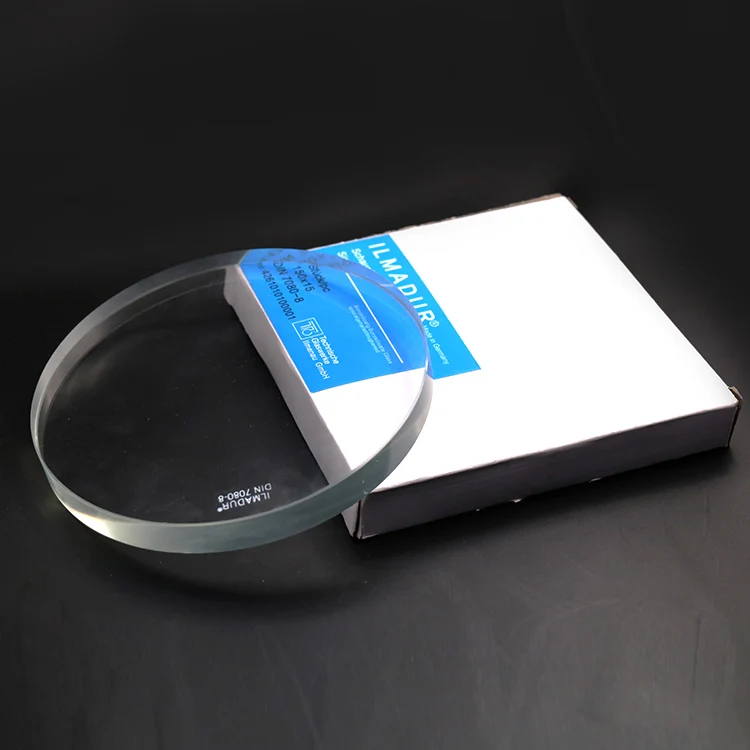

Borosilicate glass according to DIN7080.

For compressive stress with temperatures borosilicate circular sight glass up to max 280 degrees Celsius,

In a toughened form, temperatures up to 315 degrees Celsius are possible whilst annealed glass may be used up 400 degrees Celsius continuously with a short term maximum of 500 degrees Celsius.

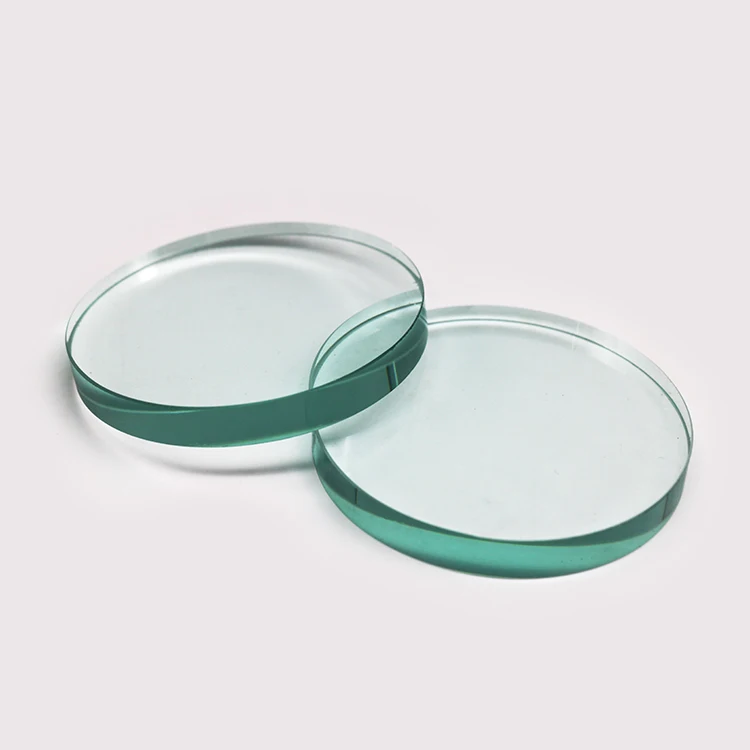

Soda Lime glass according to DIN 8902.

For compressive stress with temperatures borosilicate circular sight glass up to max. 150 degrees Celsius,

This is the most commonly used material due to its low cost. It can be easily toughened to effectively increase the mechanical strength of annealed glass by up to five times.

Quartz glass according to customer's requirements, made from JGS1, JGS2, JGS3, on production.
The main dimensions in table:
NO.
Diameter(mm)
Thickness(mm)
1
50
10(9-11), 15(14-16), 20(19-21), 25(24-26)
2
55-60
10(9-11), 15(14-16), 20(19-21), 25(24-26)
3
65-70
10(9-11), 15(14-16), 20(19-21), 25(24-26)
4
75-80
10(9-11), 15(14-16), 20(19-21), 25(24-26)
5
85-90
10(9-11), 15(14-16), 20(19-21), 25(24-26)
6
95-100
10(9-11), 15(14-16), 20(19-21), 25(24-26)
7
105-110
10(9-11), 15(14-16), 20(19-21), 25(24-26)
8
115-120
10(9-11), 15(14-16), 20(19-21), 25(24-26)
9
125-130
10(9-11), 15(14-16), 20(19-21), 25(24-26)
10
135-140
10(9-11), 15(14-16), 20(19-21), 25(24-26)
11
145-150
10(9-11), 15(14-16), 20(19-21), 25(24-26)
12
155-160
10(9-11), 15(14-16), 20(19-21), 25(24-26)
13
165-170
10(9-11), 15(14-16), 20(19-21), 25(24-26)
14
175-180
10(9-11), 15(14-16), 20(19-21), 25(24-26)
15
185-190
10(9-11), 15(14-16), 20(19-21), 25(24-26)
16
195-200
10(9-11), 15(14-16), 20(19-21), 25(24-26)
17
205-220
10(9-11), 15(14-16), 20(19-21), 25(24-26)
18
225-240
10(9-11), 15(14-16), 20(19-21), 25(24-26)
19
245-260
10(9-11), 15(14-16), 20(19-21), 25(24-26)
20
265-280
10(9-11), 15(14-16), 20(19-21), 25(24-26)
21
285-300
10(9-11), 15(14-16), 20(19-21), 25(24-26)
22
305-330
10(9-11), 15(14-16), 20(19-21), 25(24-26)

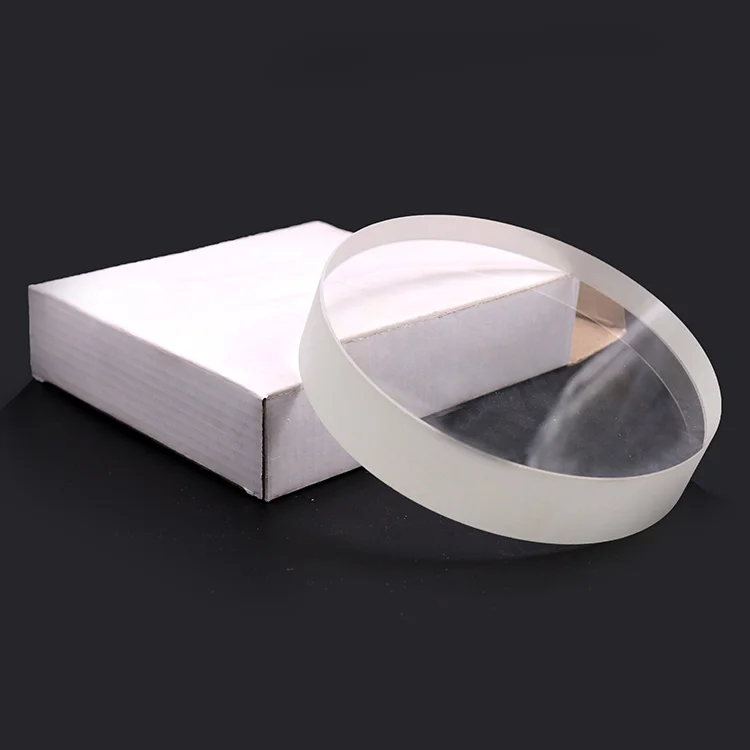

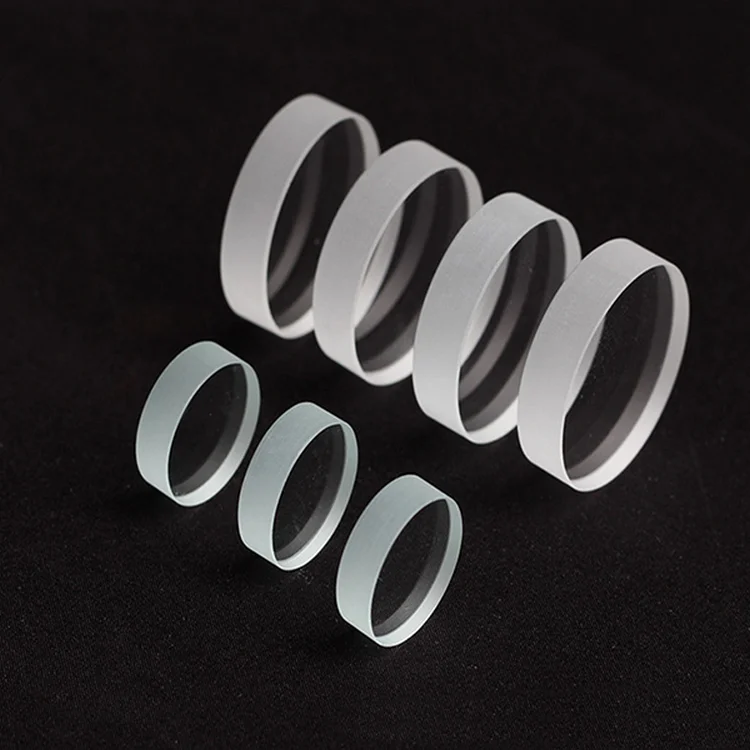

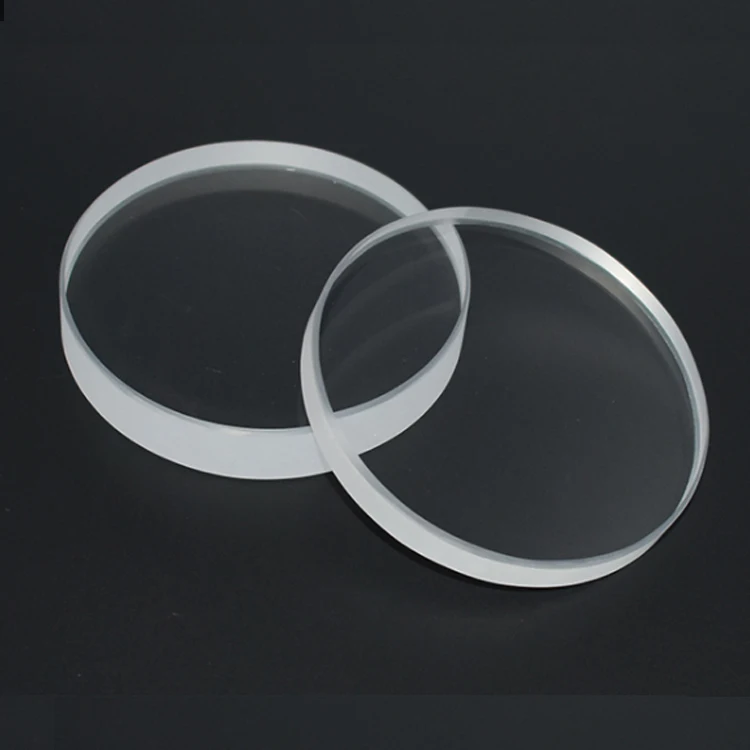

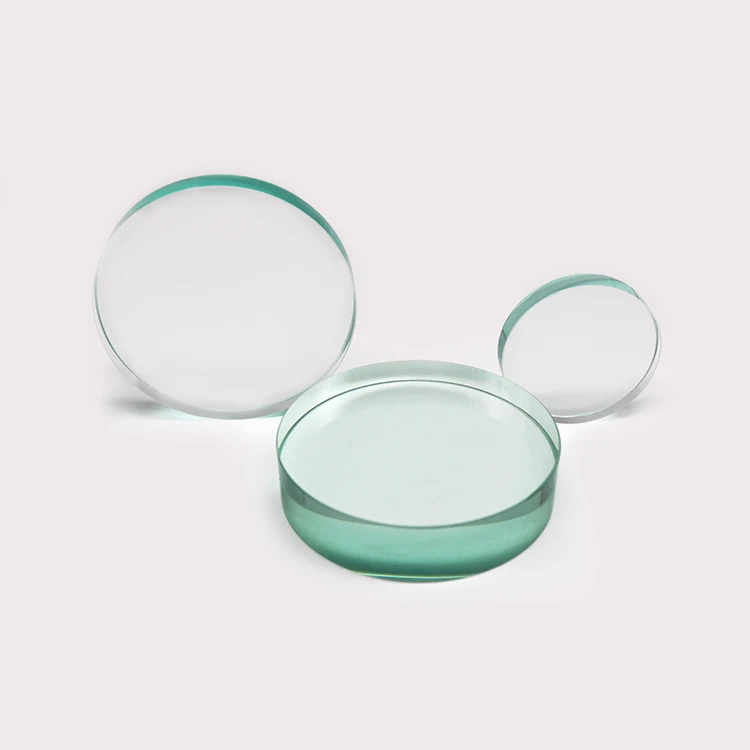

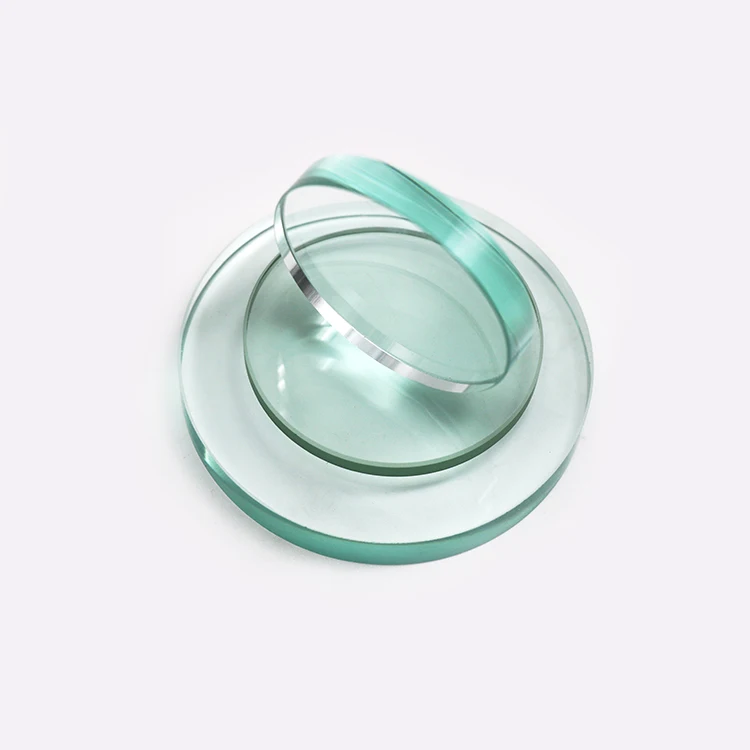

Detailed Images
Packing & Delivery
Packing detail:White paper box for each piece, 50 pieces in one carton, or as customer`s requirements.
Delivery detail:Shipped within 7 days after payment
Our Company
Hengshui Aohong Technology Co., Ltd. is an industrial company with an integration of industrial production and trade.

Our company specializes in producing sealings gasket sheets,thermal insulation cloths, rope, tape, level gauge glasses (plane, reflex),etc.

Welcome your inquiry and visit our factory !
FAQ
Q: Are you factory, or only a trading company?
A: Factory, and our factory is located in Wangtong town, Jing county, Hengshui, Hebei

Q:Could I get some samples, and how?
A: No problem, we provide free samples, and it is only needed for you to pay for the shipping charge, your courier account is also ok(such as DHL).

Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However we can discuss it.

Q: What's the payment terms?
A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is open for discussion.
