Non Asbestos Jointing Sheet Fiber Composite Gasket Sheet For Cylinder Head

Composite Gasket Sheet For Cylinder Head

Non-asbestos composite gasket sheet

Manufactured from non-asbestos beater sheet(100% not contain asbestos) with mechanically clinched to 0.18~0.25mm thick carbon steel tanged (perforated) metal sheet - 08F tinplate insert. It is best gasket material for motorcycle and automobile cylinder head gasket.

Types :
●No-asbestos beater sheet + tinplate/SS304/316 + No-asbestos beater sheet
●Exhaust Gasket Sheet
●Reinforced Non asbestos composite sheet with both size coating graphite
●Graphite Composite Sheet

Available Size :
Thickness: 1.0mm ~ 3.0mm.
400mm x 1000mm, 500mm x 1000mm, 500mm x 1200mm, 500mm x 1500mm, 510mm x 1016mm, 510mm x 1530mm, 1000mm x 1000mm, 1000mm x 1500mm.
Color: Gray, Black.
The other size is optional or according to the requirements of customers.

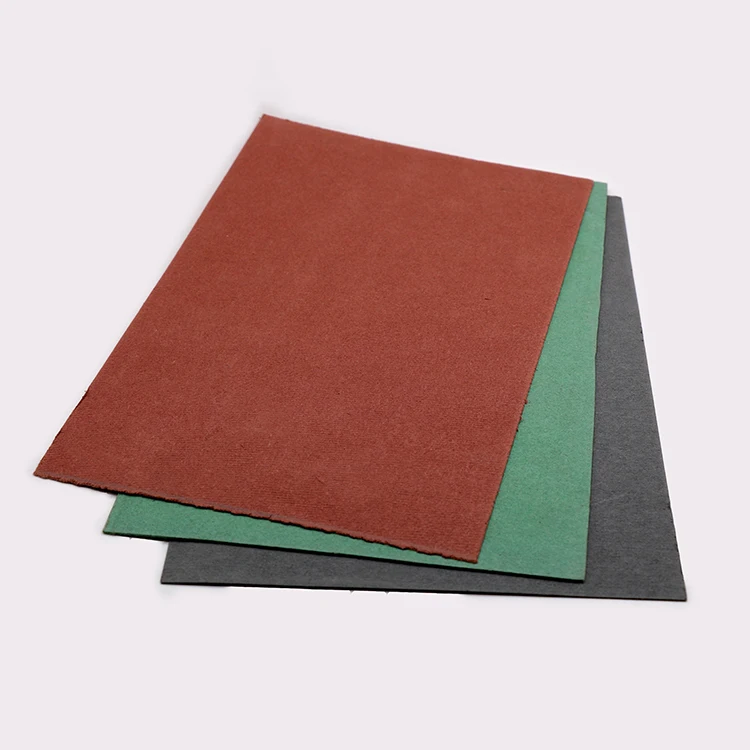

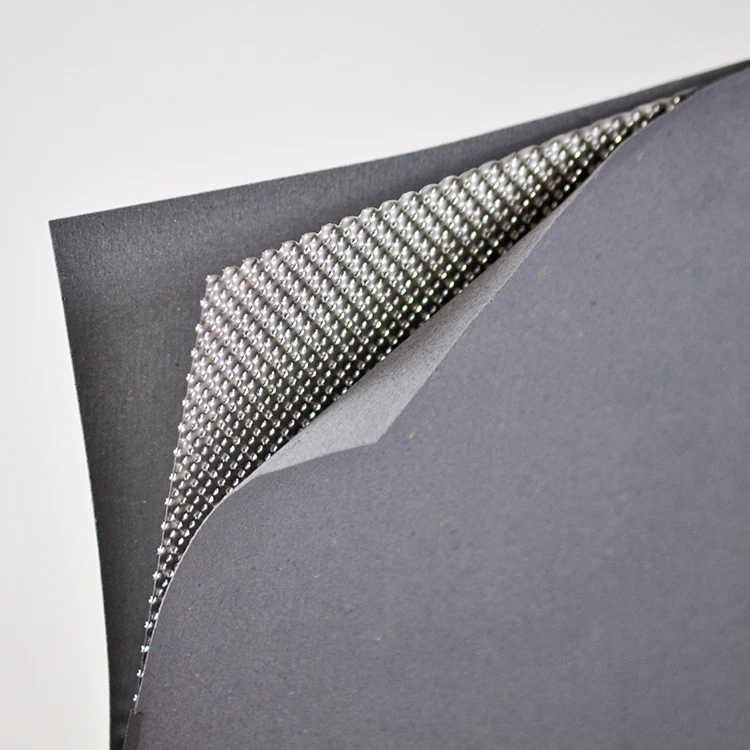

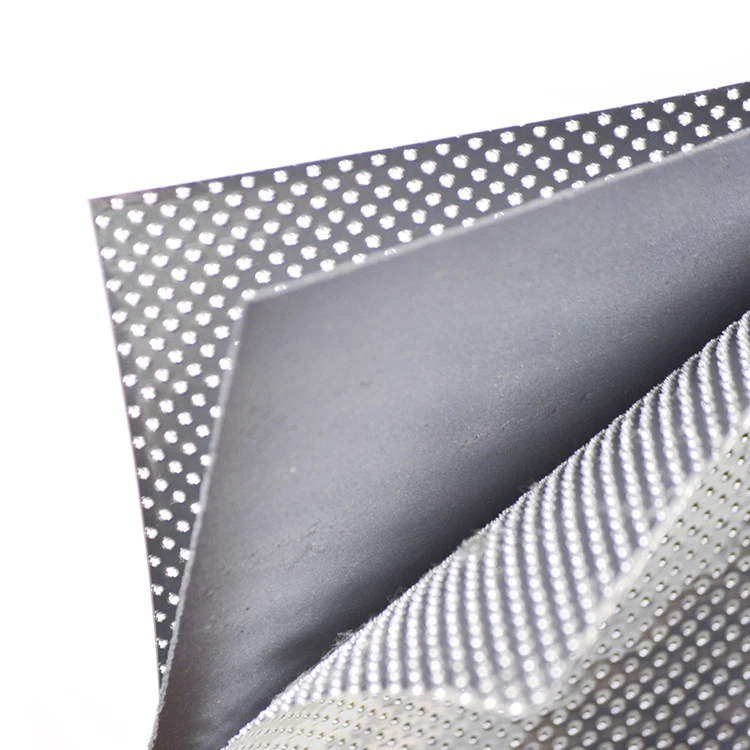

Details Images
Technical Date Sheet
Density g/cm3
1.30~1.50
Working Temperature ℃
150～300
Tensile Strength MPa ≥
12.7
Compressive Strength MPa ≥
80
Compressibility%
10±5%
Recovery ≥ %
40

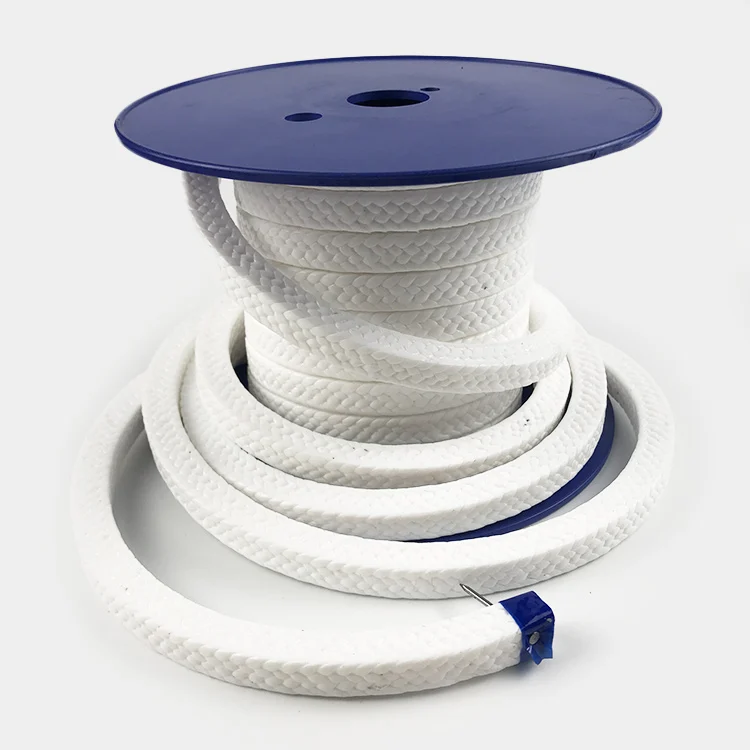

Related Products

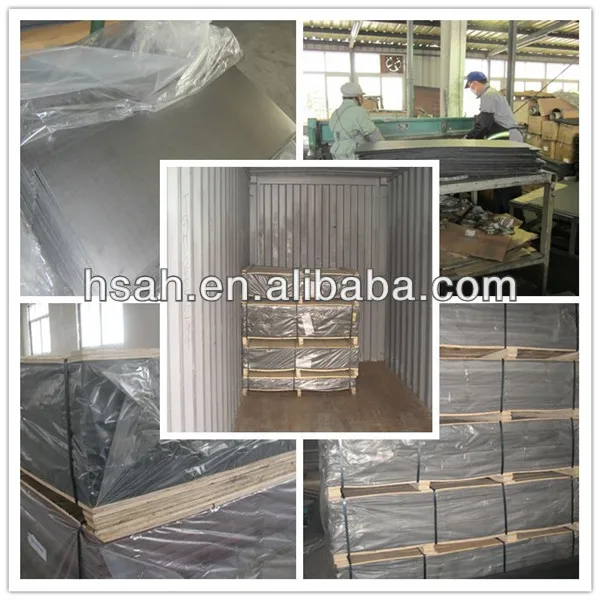

Packing and Delivery
Packing: in wooden pallet of about 1000 kgs, 2000kgs net each.
