Turcite B composed by PTFE and bronze slideway

High Quality For machine Lathe Guide Way Powder Guide Soft Belt Turcite sheet

Machine Tool Guide is a nano-polymer composites based on PTFE material,applying in all types of predision machine tools requiring high accuracy,CNC equipments and high-end guide bands products of processing centers. The guide bands contain rich solid lubricant particles,which enables the bands have a excellent friction and wearing properties. By force of nano super fine recipe,uniform and dense material and strong wearing resistance,the soft bands are widely used in all types of common machine tools,textiles,printing,paper-manufacturing,food,chemical engineering,woodworker or manufacture and maintenance of other mechanical sliding guide.,especially precision machine tools etc.
Material
PTFE+bronze
Colour
Blue
Red
Green
Density (g/cm3)
3.4
3.3
3.2
Coefficient of linear expansion (40-120°C)
7.7
7.62
7.5
Tensile strength (Mpa)
17
16
14
Elongation (%)
180
170
150
Compressive strength (Mpa)
33--42
30--40
28---38
Bending strength (Mpa)
25-30
25-30
23--29
Non-notched impact strength (KJ/m2)
>16
>15
>14
Wear(PV=0.7N/mm2.m/s)
0.010-0.020
0.010-0.020
0.010-0.020
Friction loss performance

(dry friction) Friction coefficient (μ)
0.13--0.20
0.15-0.21
0.16-0.23

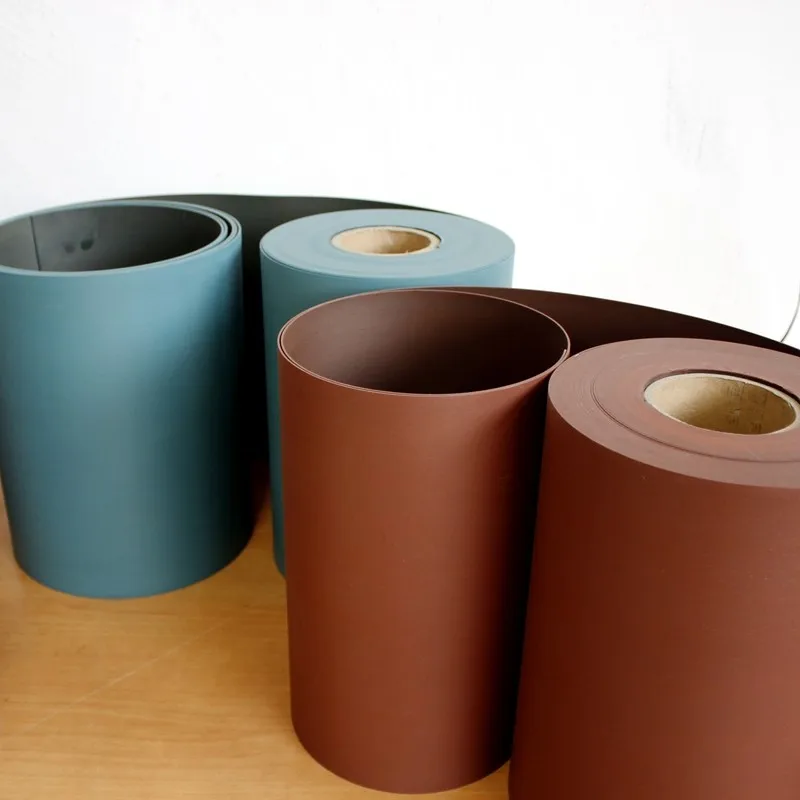

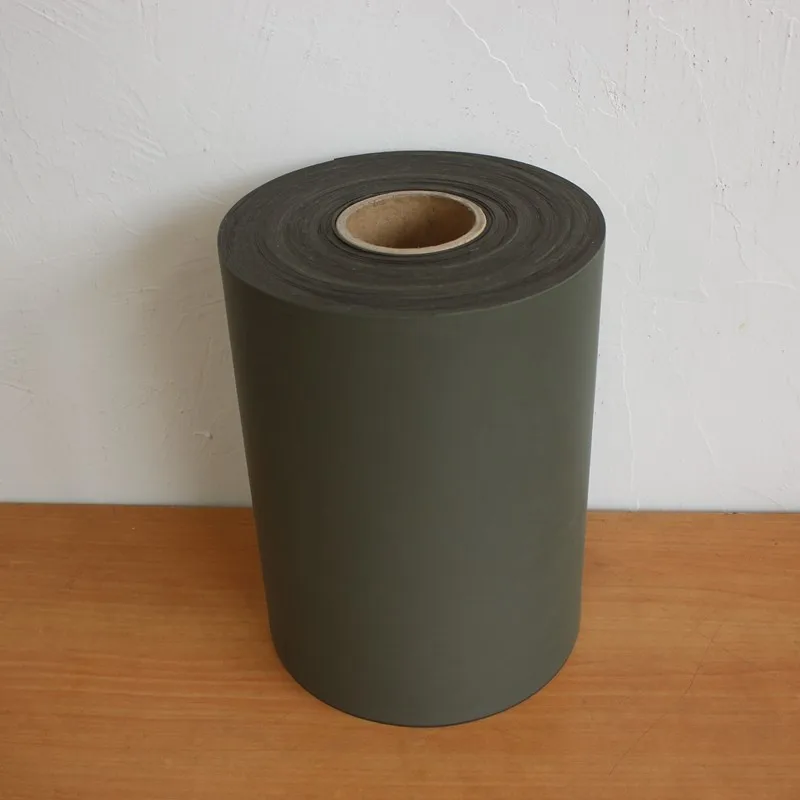

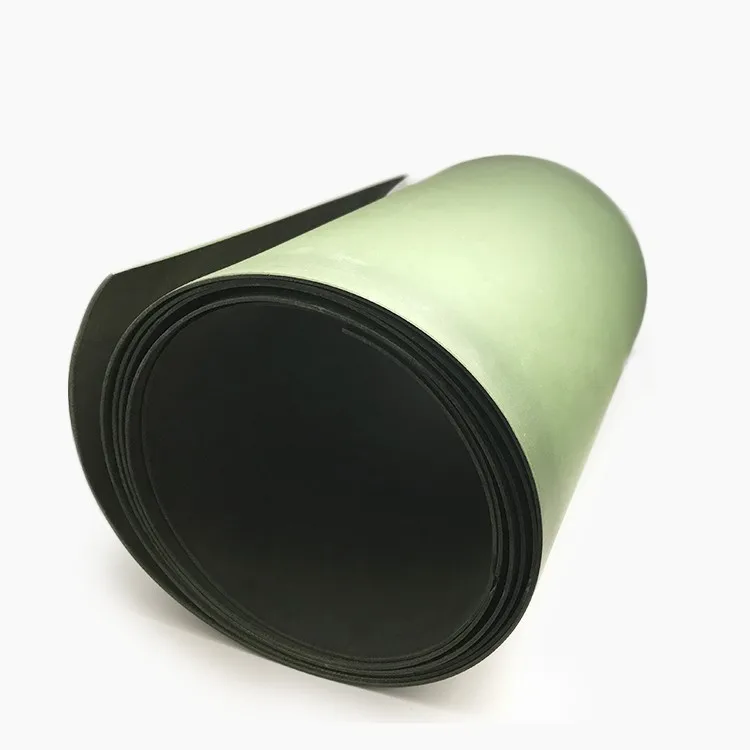

Detailed Images
Related Products
Packing & Delivery

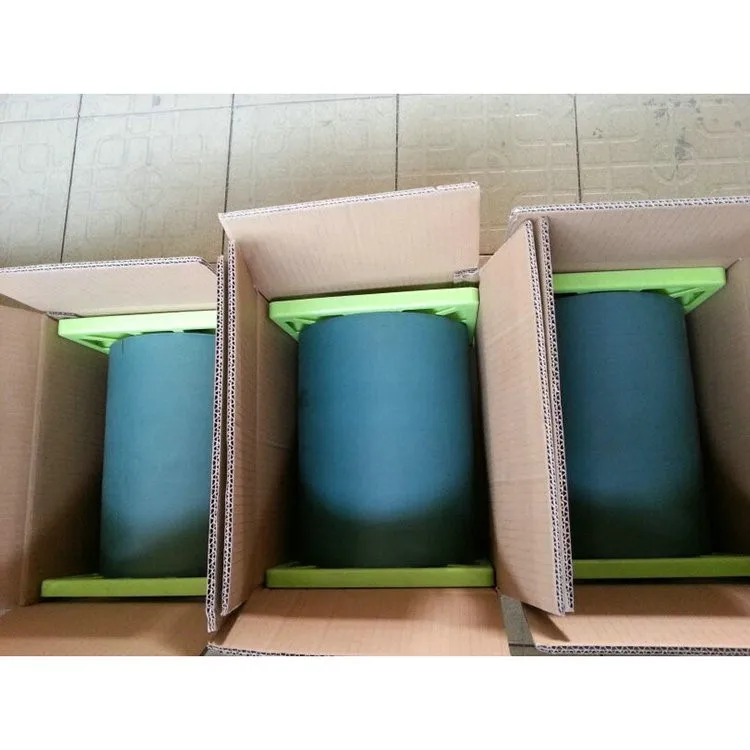

Packing details

Packing:Often packed it with carton,Or according the customer's ask .

Shipping :International express TNT , DHL , EMS ,by air or by ship and so on
FAQ
Q: Are you factory, or only a trading company?
A: Factory, and our factory is located in Wangtong town, Jing county, Hengshui, Hebei

Q:Could I get some samples, and how?
A: No problem, we provide free samples, and it is only needed for you to pay for the shipping charge, your courier account is also ok(such as DHL).

Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However we can discuss it.

Q: What's the payment terms?
A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is open for discussion.
