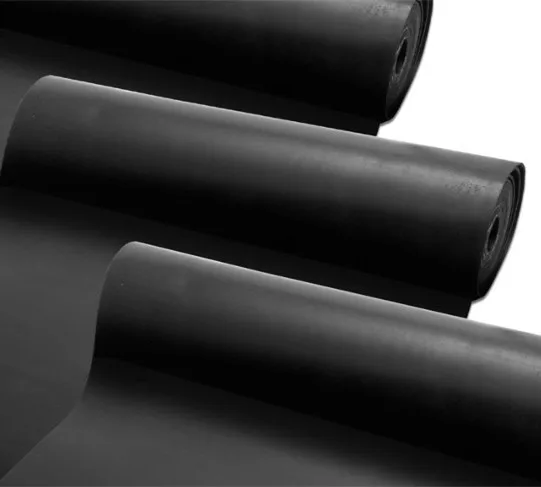

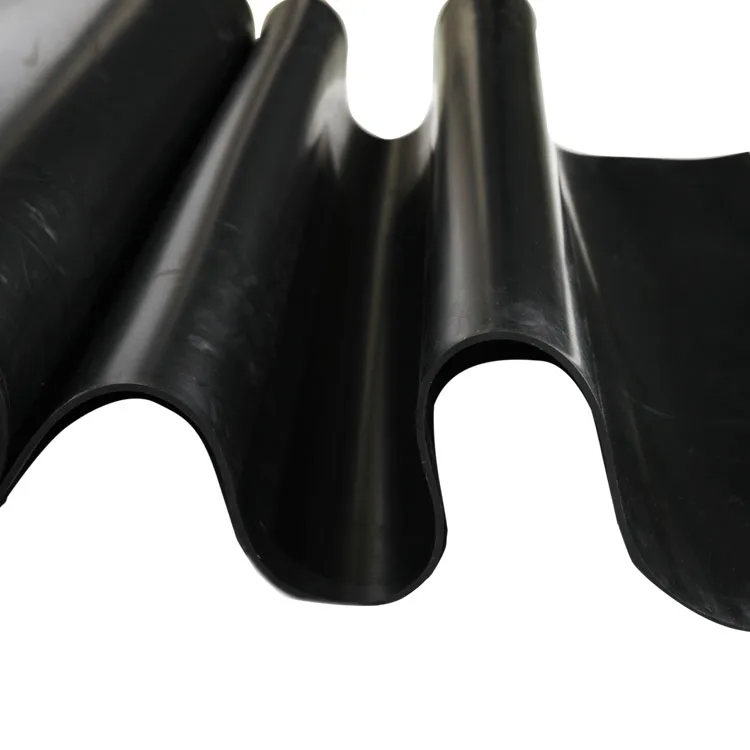

Smooth Surface SBR Rubber Sheet

Smooth Surface SBR Rubber Sheet

Styrene butadiene rubber (SBR) copolymer of butadiene and styrene. Performance close to natural rubber, is currently the largest production of general synthetic rubber, which is characterized by abrasion resistance, aging resistance and heat resistance than natural rubber, texture is also more natural rubber.

Disadvantages are:
low elasticity, flex, tear resistant performance is poor;processing performance is poor, especially since viscosity is poor, raw rubber of low intensity. Temperature range: about -50 °C~100°C. Mainly used to replace natural rubber, rubber, rubber tire production, rubber and other general products.
Data
Unit
A
B
C
D
E
F
G
Tensile Strength
Mpa
8.0
7.5
6.0
5.0
4.0
3.0
2.0
Density
g/cc
1.45
1.45
1.50
1.50
1.50
1.60
1.70
Hardness
Shore
65+/-5
65+/-5
65+/-5
65+/-5
65+/-5
65+/-5
65+/-5
Elongation
%
300
300
300
300
250
200
150
Detailed Images
Related Products
Packing & Delivery
Packaging Details:In rolls with plastic bags inside, outer white woven bags , and finally wooden pallets.

Delivery detail:Shipped within 7 days after payment or after negotiation.
Our Factory
We are an experienced factory and manufacturer of seal materials, espicially In asbestos free rubber sheet, asbestos free rubber gasket, gasket sheet,non-asbestos rubber sheet,non-asbestos rubber gasket,non asbestos beater sheet ,asbestos free beater sheet (paper),compressed non asbestos jointing sheet,composite non asbestos sheet ,PTFE gland packing,PTFE grahite packing,aramid fiber packing, carbon fiber packing, acrylic fiber packing, HDPE fabric,spiral wound gasket,gasket etc.
