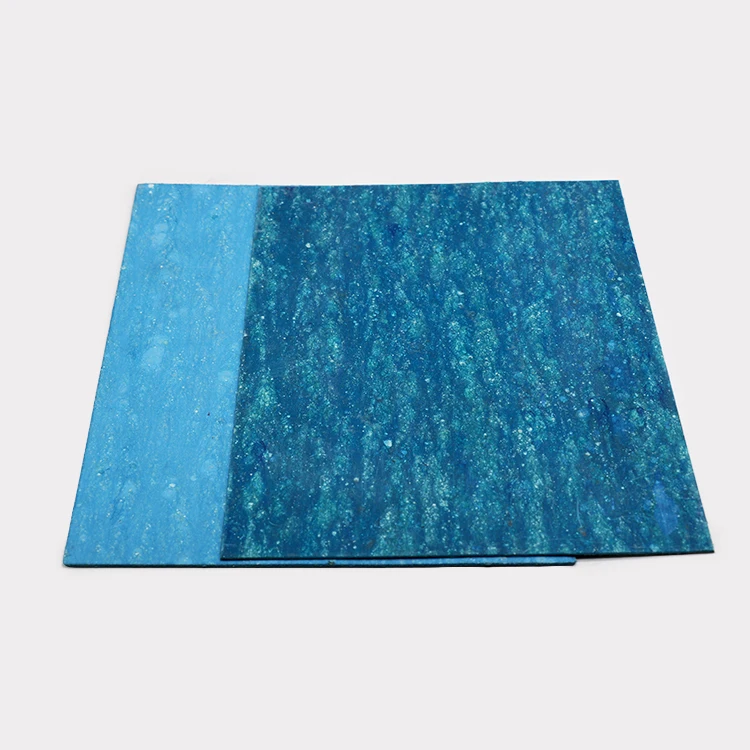

Steam Resistance Non Asbestos Klinger quality Gasket Sheet

 Steam Resistance Non Asbestos Klinger quality Gasket Sheet

Bright Pearl Steam Resistance Non Asbestos Klinger quality Gasket Sheet
NY300 non asbestos caf gasket sheet, is also called oil resistant type compressed free asbestos fiber jointing sheet for sealing condition of temperature 300 centigrade.
It is also named non asbestos fiber jointing sheet, non asbestos rubber sheet etc.
Application:
It is common sealing gasket material for equipment pipeline flange joint, in the fields of fuel oil reinfing, boiler room, gereration plant, gasoline industry, water heating, distillation, water supply and drainage, waste water solution, chemical industry, fertilizer factory, petroleum transmission pipeline, metallurgy, machinery engine, automobile and motorcycle etc.

Suitable Media:
oil, gas, gasoline, fuel, aliphatic hydrocarbons, organic acids, refrigerant, air etc.

Property:
temperature: for 300 centigrade continuous working condition
pressure: for 3mpa continuous working condition
tensile strength min: 12.7mpa

Color:
green, red, blue, gray, black, yellow etc.
can be customized

Size:
1270x1270mm, 1350x1500mm etc.
can be customiszed




Steam Resistance Non Asbestos Klinger quality Gasket SheetSteam Resistance Non Asbestos Klinger quality Gasket Sheet

Steam Resistance Non Asbestos Klinger quality Gasket SheetSteam Resistance Non Asbestos Klinger quality Gasket Sheet
 Steam Resistance Non Asbestos Klinger quality Gasket SheetSteam Resistance Non Asbestos Klinger quality Gasket Sheet



Steam Resistance Non Asbestos Klinger quality Gasket Sheet
Steam Resistance Non Asbestos Klinger quality Gasket Sheet


Steam Resistance Non Asbestos Klinger quality Gasket Sheet
