Tempered Water Level Gauge Glass Transparent Gauge Sight Glass For Liquid Level In Boiler

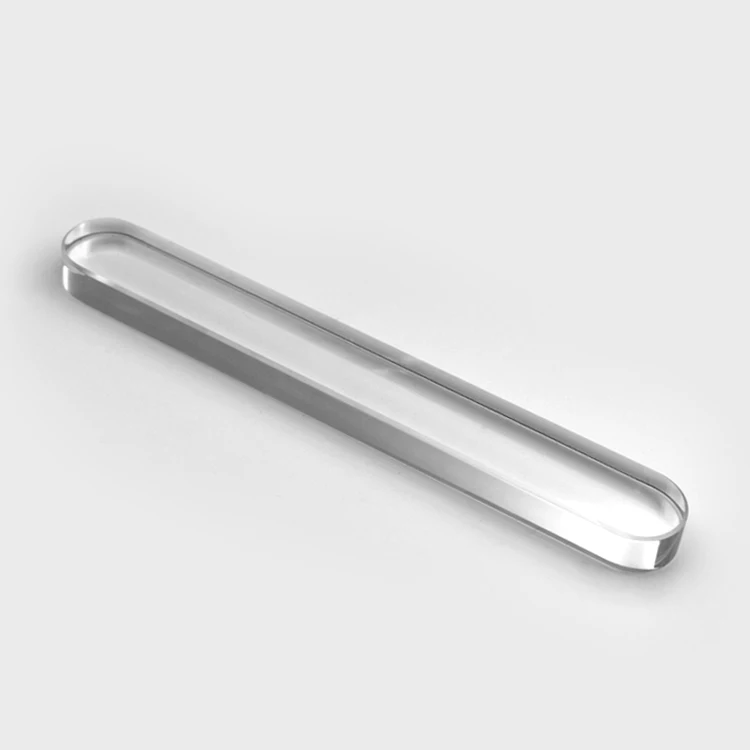

Transparent Gauge Glass

Transparent type is also manufactured from “extra-hard” borosilicate glass. The surfaces on both sides are finely smooth and ensure optimal transparency.

A) One is as same with reflex Gauge Glasses,use molds to make the semi-finished products,afterwards,ground and polish the two side to ensure optimal transparency.
By this manufacturing technique,the definition isn’t good.

B)The other manufacturing technique is made of High Borosilicate sheet of 17mm thickness, cut the glass sheet according the detailed size and polish the side face for the smooth.
This manufacturing technique glass is very clear,but the goods cost is higher.

Specifications

* Material: borosilicate glass, aluminosilicate glass.
* Max pressure: 6Mpa.
* Max temperature: 430 °C.
* Using life: more than 20 years.
* Standard: The products is strictly according to the standard of DIN7081.
* Accessories: Gaskets and mica sheet can also be provided together.
Details Images
size
type A
type B
I
115
30
17
115
34
17
II
140
30
17
140
34
17
III
165
30
17
165
34
17
IV
190
30
17
190
34
17
V
220
30
17
220
34
17
VI
250
30
17
250
34
17
VII
280
30
17
280
34
17
VIII
320
30
17
320
34
17
The other size is optional or according to the requirements of customers.

Service

Provide test reports and free samples
Sufficient inventory and efficient transportation
Safe packaging service
Rigorous factory inspection
Undertake defective return
Product packaging
White paper box for each piece, 50 pieces in one carton, or as customer`s requirements.
